Consistent Metal Tube Seals in Under a Second. Metal tube sealing systems use a one-step operation to crimp, seal and cut off charged copper and aluminum tubes with lightning speed. The portable system hermetically seals copper and aluminum tubes up to 12mm and is designed to optimize safety, efficiency and productivity in hazardous environments. Applications include sealing charged tubes used in refrigerators, air conditioners, bulb temperature sensors and capillary tubes.
Item No.:
HS-2030-FPayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Black and silverShipping port:

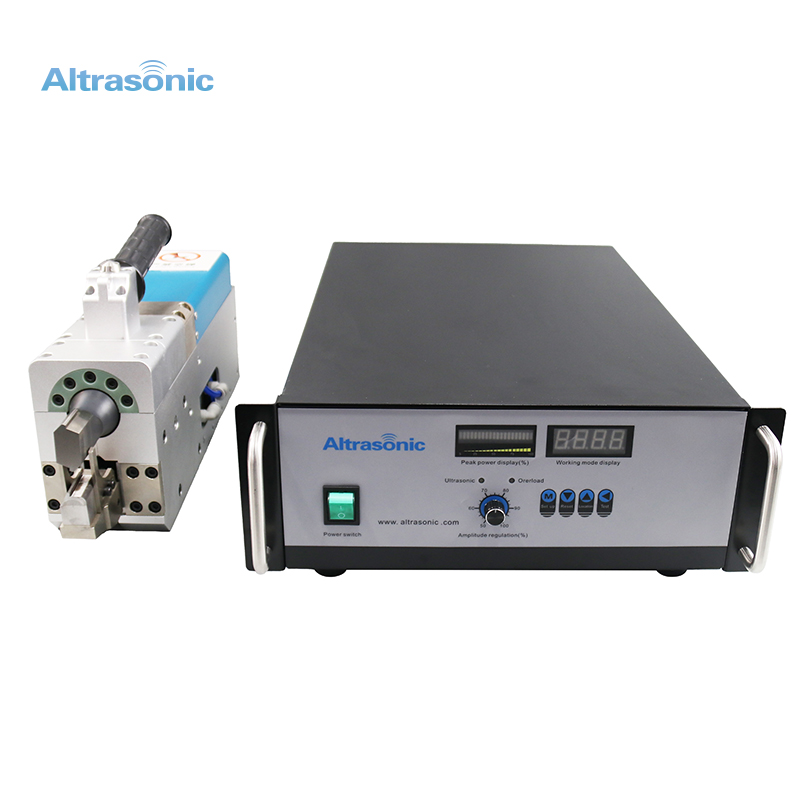

Ningbo or ShanghaiUltrasonic Metal Tube Sealing Machine For Copper Or Aluminum Tubes Of Refrigerator And Air Conditioner
Specification
Model No# | HS-F2030A |
Power | 3000W |
Copper pipe size | φ2-12mm |
Working air pressure | 0.05-0.9MPa |
Frequency | 20kHz |
Voltage | 220V |
Working head Size | 460*220*100mm |
Machine Size | 540*380*150mm |
Advantage
Application
HS-F2030A series of ultrasonic metal welders are capable of simultaneously welding and cutting 2-12mm copper or aluminum tubes.
It is mainly used in refrigerator and air conditioning manufacturing industry to weld and seal copper or aluminum tubes with condensing agent, as well as capillary or spherical temperature sensors, and other products requiring sealing copper or aluminum tubes.
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
