35khz Telsonic replacement Ultrasonic Welding Transducer with Steel Use Stainless (SUS) Protective Sleeve is applied to Telsonic type ultrasonic welding machine.
Product origin:
ChinaColor:

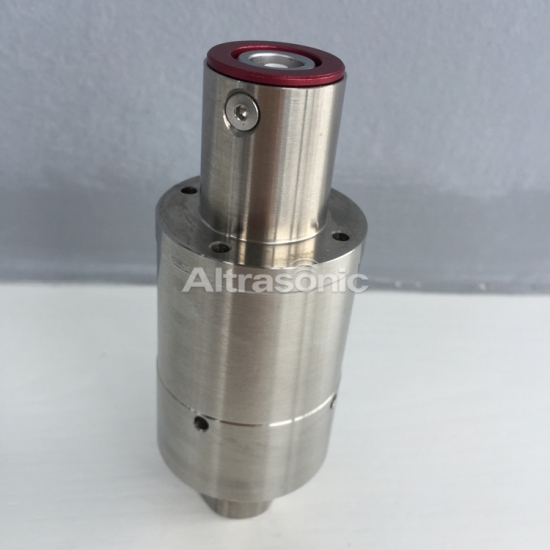

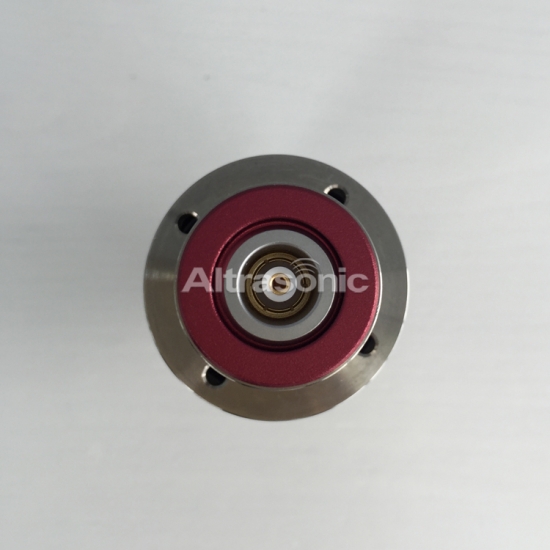

SilverTelsonic Replacement 35khz Ultrasonic Converter with Steel Use Stainless (SUS) Protective Sleeve BNC Connector
Specification:
| Model | HSTL2535-4D |
| Frequency | 35 khz |
| Output power | 800-1000 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 4.2-4.5nf |
| Amplitude | 8 um |
| Application | welding machine |
Description:
The 35khz Telsonic replacement Ultrasonic Welding Transducer is applied to Telsonic type ultrasonic welding machine.

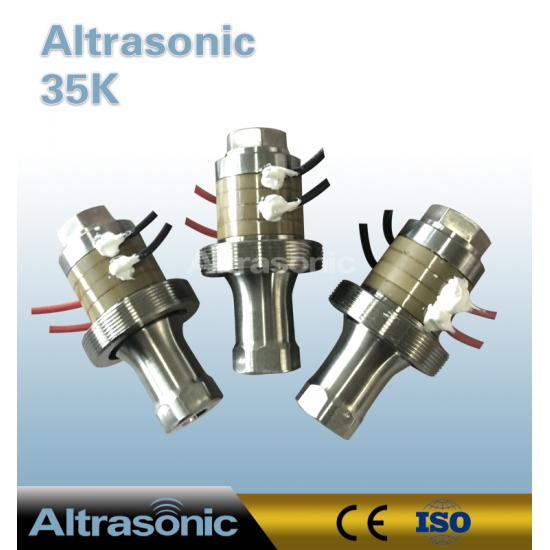

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

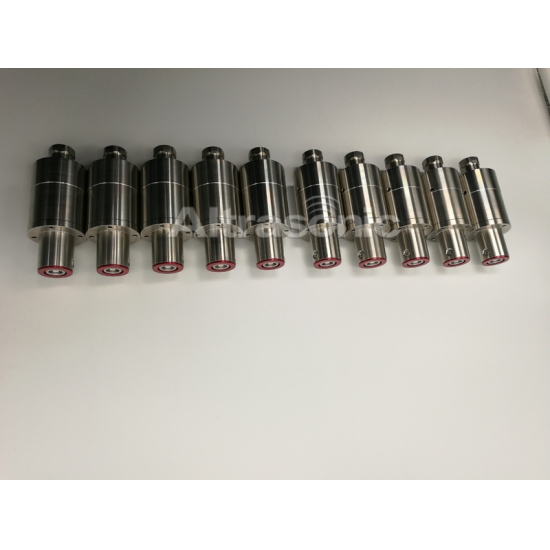

3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
