Strong Output Ultrasonic Wire Embedding Device with Multiple Working Mode

  • China
  • Altrasonic
  • Black and silver
  • 1

  • Contact Now
Product Details

Strong Output Ultrasonic Wire Embedding Device with Multiple Working Mode

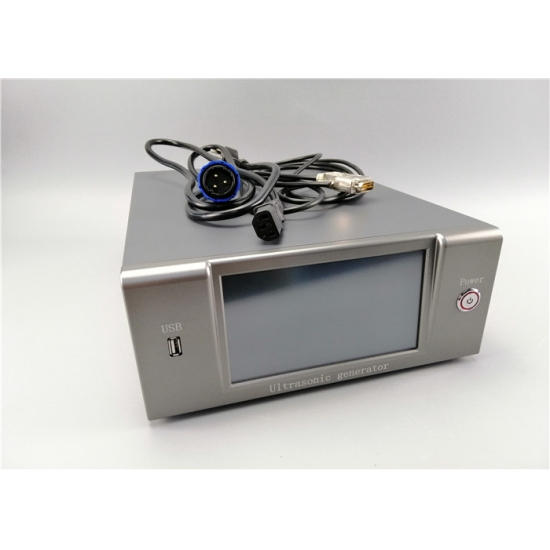

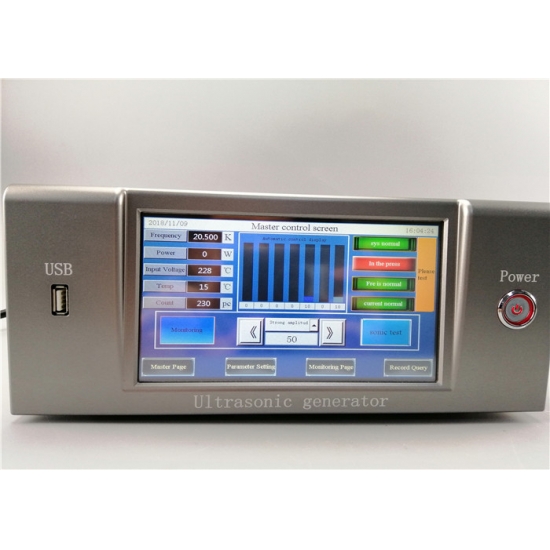

Digital Generator


Description:

With the development of subway transportation, the use of ultrathin IC card is increasing. The traditional production process of ultra-thin IC card is etching antenna technology, which has a high failure rate and an average life of only 3 years. With the continuous improvement of ultrasonic wire embedding technology, which can completely solve the shortcomings of etching antenna technology, making it possible to use ultrasonic wire embedding technology to produce ultra-thin IC card. We spent three years to develop the Chinese first intelligent ultrasonic frequency automatic tracking series DSP HS-V-8.0, which improved the machine output of 60K weak, slow buried line speed, large volume and other problems.

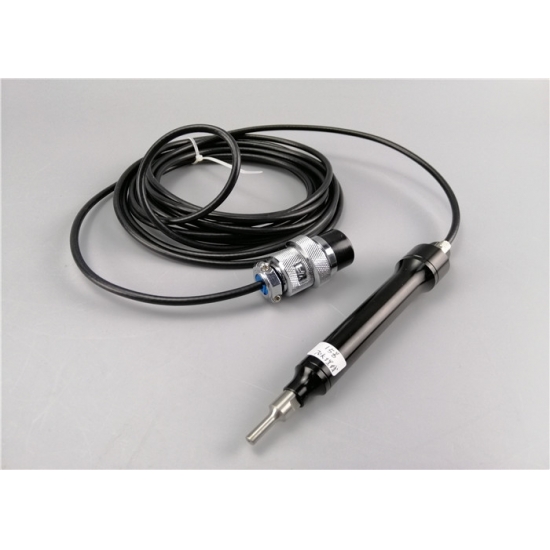

Horn and Transdrcer


Specification:

Item No. HSW70
Frequency 70kHz
Power 100W-300W
Power adjusting Itermittent or continuous
Switch Manual, Pedal or external control system
Working time control 0-999 seconds
Generator Digital Generator
Power cord  5 meters
The threading hole Customized
Cooling method  Compressed air
Outer housing  Aluminum












Characteristics:

1. High stability

2. Automatic frequency tracking

3. Strong output

4. Amplitude stepless adjustment

5. Intelligent three protection and fault alarm

6. Intelligent closed-loop amplitude control technology

7. Two kinds of welding mode.


FAQ:

Q: What is the power required for welding equipment?

A: The power of ultrasonic welding equipment depends on the material, size and thickness of the welding contact surface. Bigger isn't better.


Why choose us?

1. Oversea Service Team: We have agents in India, Australia, UAE, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, and also supply OEM service. Customize ultrasonic solution for different applications.


What we can do?

1. 24-hour after-sales response

2. Multilingual services

3. Targeted after-sale technology upgrade solutions

4. Ultrasonic Parts Supply and Technical Support Services

5. Multi-platform, multi-channel, multi-network after-sales service

6. Efficient after-sales and equipment health management system
