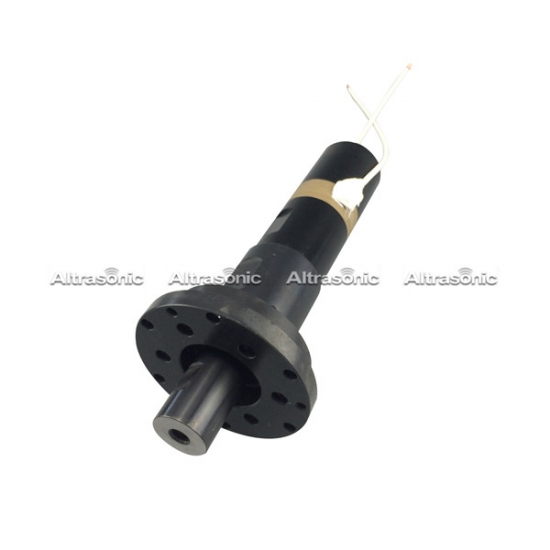

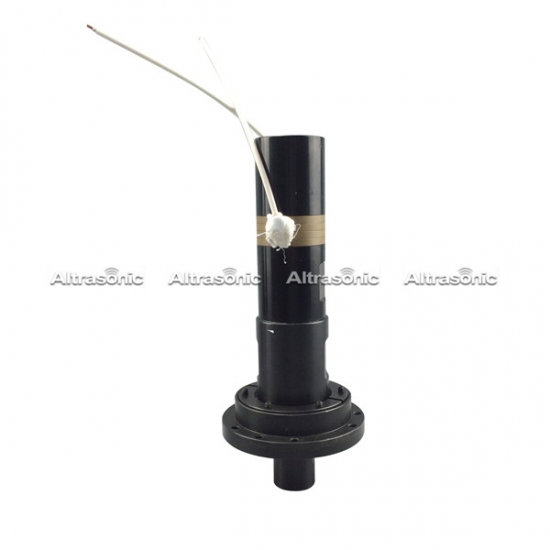

Piezoelectric Ultrasonic Welding Transducer with Booster 20Khz



An ultrasonic transducer is a device that converts high frequency electrical energy into mechanical energy. Usually impedance matching is achieved to allow the transducer power amplifier to output maximum power to the load, and the piezoelectric effect converts the electrical signal into mechanical vibration to achieve the desired effect.

The function of the ultrasonic transducer is to convert the input electrical power into mechanical power (ie, ultrasonic waves) and then pass it out, while consuming a small portion of the power itself. The technical problem to be solved is to design an ultrasonic transducer with a large distance and a wide frequency band.

The ultrasonic booster can change the amplitude of the transducer. The booster is a passive device that does not generate vibration by itself. Output only after the input vibration becomes amplitude, and the impedance conversion is completed at the same time.


Frequency: 20Khz

Application: Welding


It has been widely used in agriculture, industry, life, transportation, military, medical and other fields. It will also be used in assisted machining, welding, cutting, etc.



Constant spring pressure

2. Solid

Heavy burden

3. Compatibility

Configurable RDG, SDG and ADG generators and external controllers

4. Wide range of uses

Designed for assembly into a dedicated machine

5. Design

Very compact
