High Speed Ultrasonic Welding Machine for Antivirus Mask

  • China
  • Altrasonic
  • HS-W20
  • Shanghai or Ningbo
  • Silver
  • 1
  • T/T, PayPal, West Union

  • Contact Now
Product Details

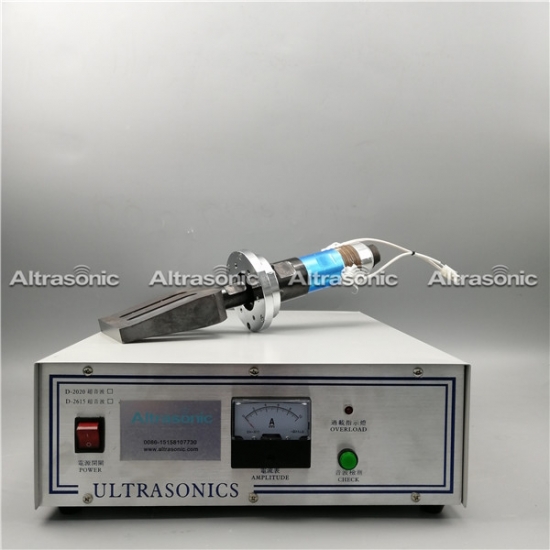

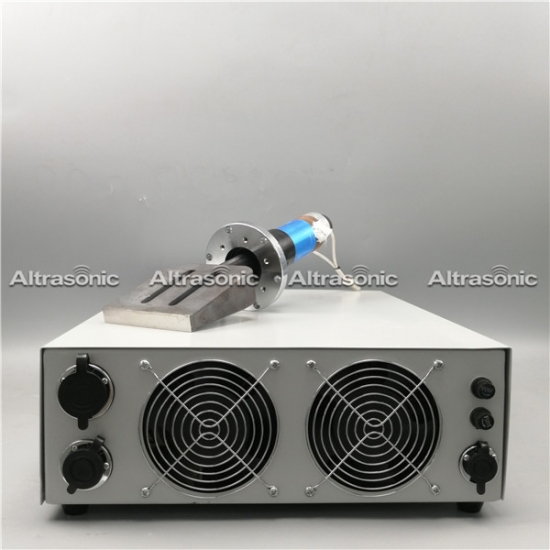

High Speed Ultrasonic Welding Machine for Antivirus Mask



Description:


Ultrasonic plastic welders operate by inducing ultrasonic frequencies in fabric components that is converted into heat between the welded fabric laminates.  Frictional heat is produced so that fabric parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both working pieces is nearly equivalent which helps to form a uniform weld area.  The welded area is usually as strong as the matrix material.



Specification:


Frequency: 20kHz

Max Power: 1500Watt

Voltage: 110V / 220V, 50-60Hz

Working Temperature:5°C - 50°C

Generator:Analog

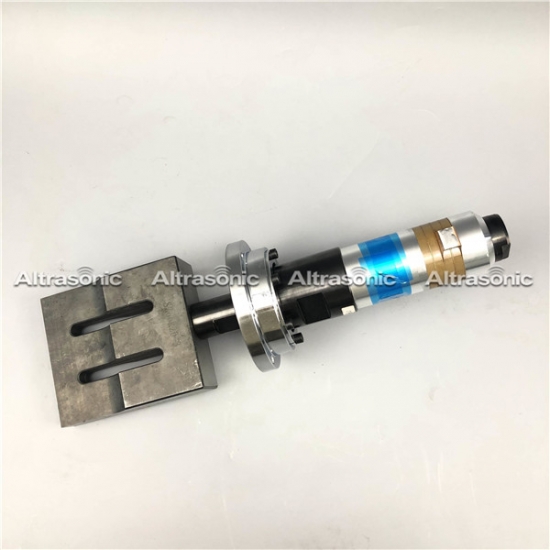

Steel horn: 110*20mm



Advantage:


1. Ultrasonic welding can be applied to a diversity of combination of the material welding, It can not applied for semiconductor materials such as high temperature caused by the pollution and the operation, It is easy to weld the heat conductivity and high conductivity materials like gold , silver , copper , aluminum , etc .

2. The consumption power is small , only for the resistance spot welding 5% left and right sides, weld deformation less than 3-5% , solder joint strength and strength the stability by an average of about 15-20% , on the surface of cleanliness requirements is not high.

3. Ultrasonic welding process is widely used in the microelectronics devices and finishing technology, the most successful application is the integrated circuit element of interconnection and it is used in the electronic aerospace electrical packaging plastic industries .

4. Ultrasonic welding process successfully joins many dissimilar-materials combinations, It welds without filler metals or gases, It is fast and easily automated, Because ultrasonic welding does not require the connective bolts or soldering materials to bind two pieces together, it saves on the manufacturing & production costs.

5. Ultrasonic welding process is ideal because it creates the reliable bonds without introducing any impurities or thermal distortion to the components being joined, The ultrasonic weld dries rapidly because there are no adhesives or solvents to dry and there is no need for the materials to cure.

6. Ultrasonic Welding process offers the clean exteriors of welded parts, The potential manpower savings, The absence of drying time in the jig , the gas tight and it has completely stable, possibility of welding in the presence of the foreign bodies such as the powders and the liquids that are incompatible using any other conventional assembly processes .



Application:


Ultrasonic plastic welding is also utilized in the medical industry, primarily because it doesn’t introduce contaminants. Items such as anesthesia filters, blood filters, IV catheters, dialysis tubes and face masks can be made using ultrasonic plastic welding. Another important application in the medical field is the construction of such textile wear as hospital gowns, surgery garments, and transdermal patches, just to name a few. These items can be sewn and sealed using ultrasonic plastic welding to avoid and reduce the risk of infection.







Previous20kHz Ultrasonic Horn Sonotrode in Automatic N95 Mask Making Machine

NextSteel Mould of Ultrasonic Sewing Machine for Non-woven Mask
