High Efficient Ultrasonic Cutting Device 20KHz 1000W for Food Slicer Multifunctional with Fast Speed

High Efficient Ultrasonic Cutting Device 20KHz 1000W for Food Slicer Multifunctional with Fast Speed

High Efficient Ultrasonic Food Cutting Device

  • Product origin:

    China
  • Product Details

Description:

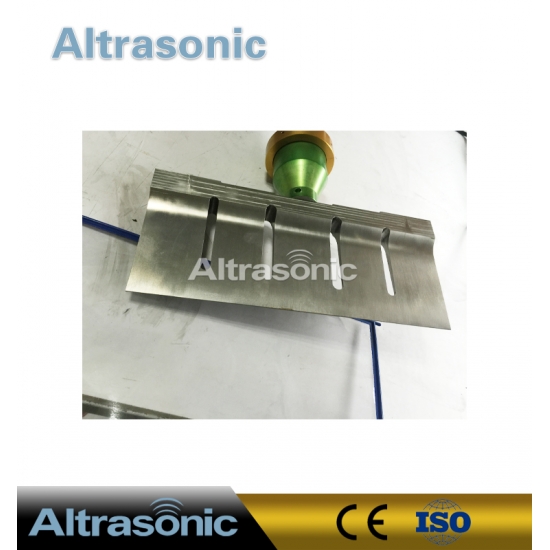

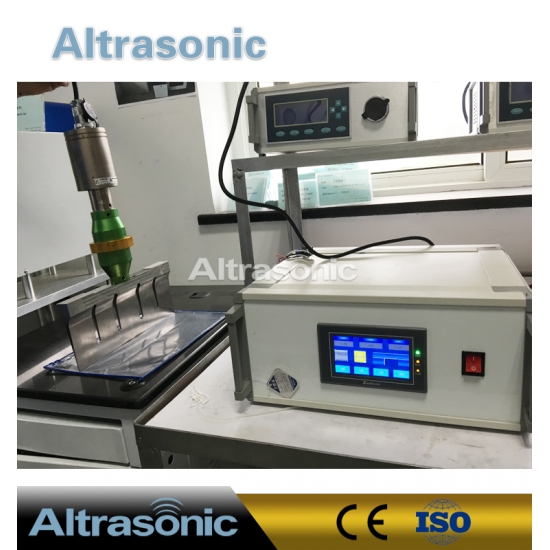

The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.

Ultrasonic cutters can smoothly cut difficult-to-cut materials.

They are small in size and do not require large installation areas. Special equipment is not required for the installation. They are small enough to be hand-held for many operations. They can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

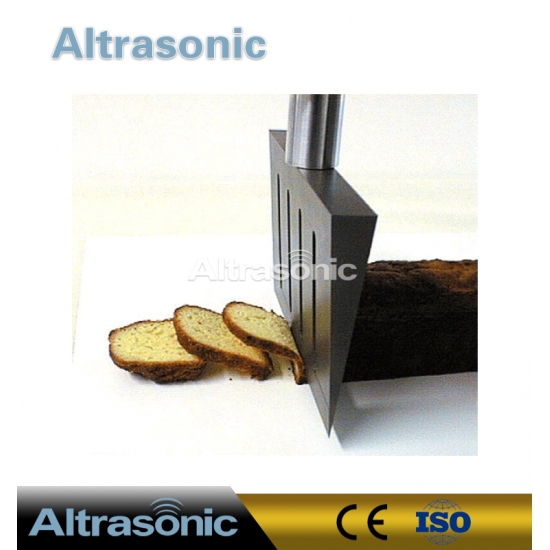

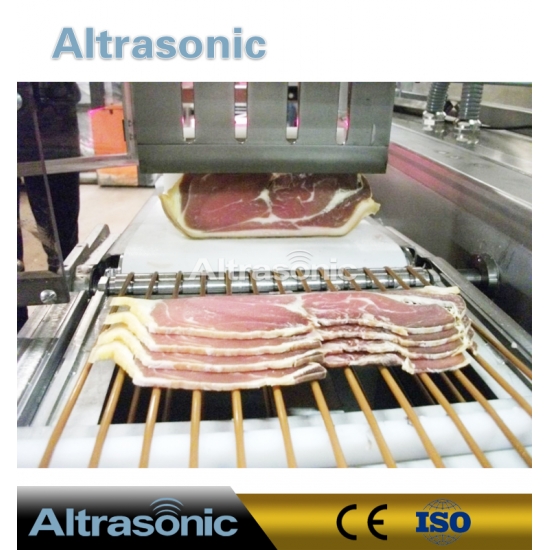

Application of ultrasound can cut cakes, pies, cheese, pizza, bread, candy and other food, cutting surface clean and smooth. When cutting equipment similar to nuts or raisins with ultrasonic equipment, it can produce finer crushing than the traditional cutting process. Therefore, ultrasonic cutting food than the traditional way with more advantages: clean and smooth cutting surface, cutting knife longer life, more importantly, can be reduced due to cleaning and maintenance and stop production time.

In cutting food, the ultrasonic cutting knife to 20, kHz (or 30 / 40kHz) frequency vibration, so that food residues will not stay on the face. The surface of the cut food is very clean and the separation between the layers is clear. Recent studies have shown that higher frequency (30 and 40 kHz) ultrasonic cutting blades have the best cutting effect for hot and sticky foods while the entire process is no noise.

Ultrasonic cutting system due to routine cleaning and maintenance caused by the shutdown time can be reduced by 70% to 90% of traditional equipment. Customers who use conventional cutting equipment can only make small changes on existing equipment if they want to use the ultrasonic process to process food; or introduce new system designs on the basis of existing production designs.

Ultrasonic cutting advantage and features:



1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.

FREQUENCY 20Khz
POWER 800W
INPUT AC110-240V, 50/60Hz
POWER CONTROLLER stepping or continuous
MATERIAL OF CUTTING HEAD titanium alloy
MACHINE WIGHT 15~18KG
COOLING DEVICE compressed air mouth can be installed.
CABLE LENGTH 3M or customized
FOOT SWITCH available





Features of Different Cutting Equipment



Cutter Type Bottom Type
More than 10 times speed than ordinary cutter
Stable work for a long time
Customizing cutting of related shape according to client’s requirement
Available on the producing of disk-shaped ultrasonic cutter equipment, realizing the rolling cutting
Cutting something uncutable for normal cutters Cutting all kinds of fabric, clothes, plates and so on.
Decreasing cost for its replaceable blade Harden process; more than 20000 meters effective cutting length
Easy to install and use and the previous cutting technology can be reserved Easy to install and suitable for ordinary cutter





Applications:



★High energy conversion efficiency, more than 90%;

★The vibration of the ultrasonic food processing system using high frequency wave to quickly cut food;

★Provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food;

★Makes the cost of production flow minimization;

★Especially for cutting high viscosity food;

★Cutting is very hygienic;

★The cut food looks neat and beautiful;

★Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.
