Automatic Ultrasonic Mask Machine for N95 Disposable Medical Mask

  • China
  • Altrasonic
  • HS-W20
  • Shanghai or Ningbo
  • Blask and White
  • 1
  • 30
  • T/T, PayPal, West Union

  • Contact Now
Product Details

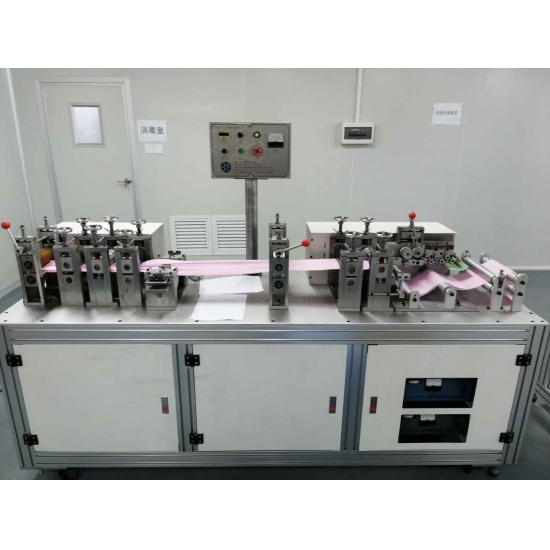

Automatic Ultrasonic Mask Machine for N95 Disposable Medical Mask



The principle of ultrasonic mask machine welding mainly uses ultrasonic technology to transmit ultrasonic energy to the welding zone through the upper welding piece. Due to the large acoustic resistance at the welding interface, which is the interface between the two weldings, local high temperatures will occur. In addition, due to the poor thermal conductivity of plastics, nylon, chemical fibers, non-woven fabrics, multi-layered fabrics, and gold fabrics, they cannot be distributed in time and gather in the welding zone, causing the two contact surfaces to melt rapidly. After applying a certain pressure, Fusion into one. When the ultrasonic wave stops functioning, the pressure is allowed to continue, and the pressure is maintained for a while, so that it solidifies and forms, so that a strong molecular chain is formed to achieve the purpose of welding, and the welding strength can be close to the strength of the raw material body.


1. Using high-quality piezoelectric ceramic transducer, high power and high conversion efficiency;

2. Do not emit smoke or sparks during processing, do not damage the edges of the cloth, and avoid burrs;

3. Equipped with automatic level device of welding head and high-strength fine-tuner, easy and fast calibration;

4. Easy replacement of the flower wheel, which can be replaced according to customers' needs.

5. Special alloy steel made of flower wheel, welding head withstands wear and tear and long life

6. Use 20kHz low noise ultrasonic waves to prevent noise interference;

7. Simple mechanical operation and easy maintenance.



1. Working power: voltage 220VAC ± 5% 50kHz

2. Compressed air: 0.5-0.7Mpa, using flow rate of about 9KM

3. Operating environment: temperature 10-35 ℃, humidity 5-35% HR, no flammable and corrosive gas, no dust (cleanness no less than 100,000)

4. Production efficiency: 50-100Pm (efficiency per minute)

5. Equipment production qualification rate: 98% (except for improper operation by employees)

6. Equipment modification rate: 2%





Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
