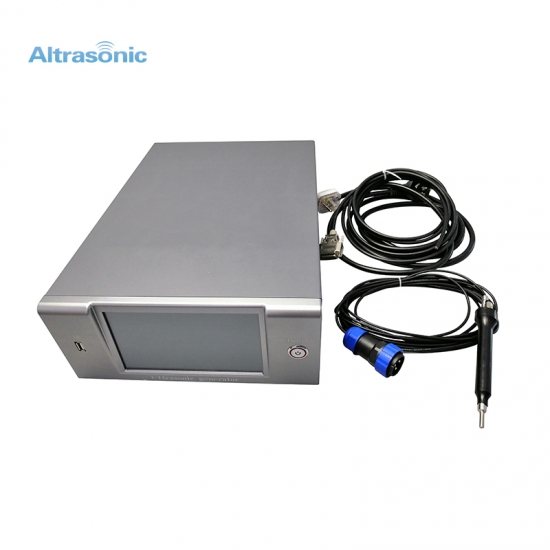

70kHz Intelligent Ultrasonic Wire Embedding System for Smart Card


China's first intelligent ultrasonic frequency automatic tracking series DSP HS-V-8.0 is one of the masterpieces from Hangzhou Altrasonic Technology Co., Ltd. in 2017. It is the leading brand of intelligent ultrasound in China. It uses high-performance microprocessor anti-interference to realize of electronic control parameters are managed by the microcomputer. Intelligent frequency control system, eliminating the inconvenience of manual FM, Sonic overload automatic detection, Tracking real-optimal resonance point, Vibration set temperature remains the lowest point, Frequency welding head temperature changes , Themachine automatically adjusts to run more stable.

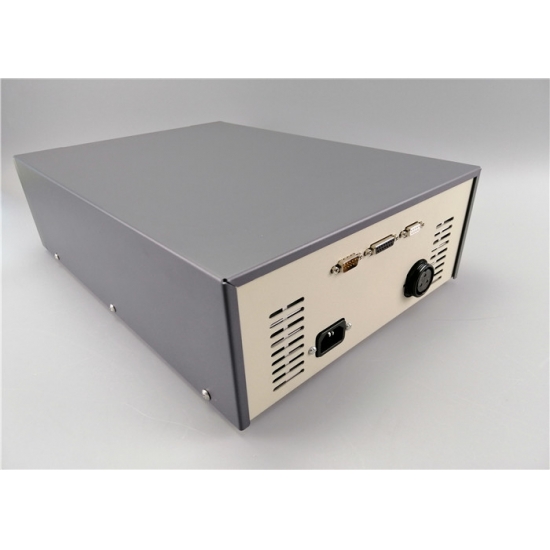

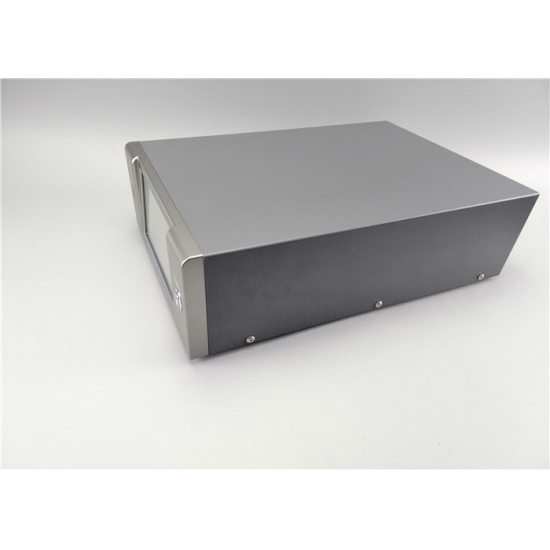

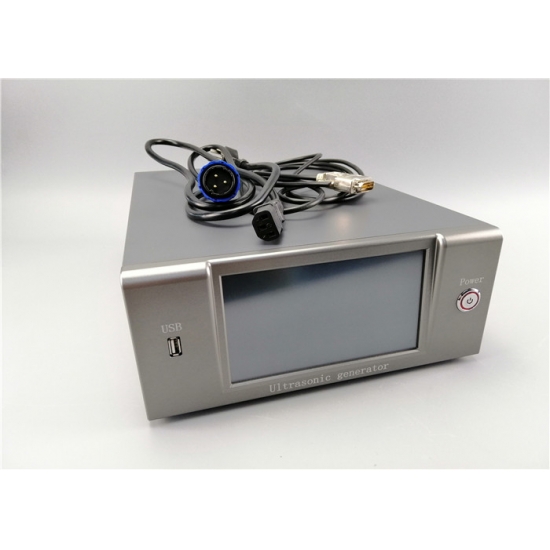

Digital Generator

Horn and Transdrcer


Item No. HSW70
Frequency 70kHz
Power 100W
Power adjusting Itermittent or continuous
Switch Manual, Pedal or external control
Working time control 0-999 seconds
Generator Digital generator
Power cord 5 meters
The threading hole Customized
Cooling method Compressed air
Outer housing Aluminum



1. Automatic frequency tracking: Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking of complex control technology, can eliminate the temperature, static load, machining area, tool wear and other factors drift disadvantages of conventional analog regulator insurmountable, conducive parameter adjustment, easy modification by software, easily adjust the control scheme and achieve a variety of new control strategies.

2. Amplitude stepless adjustment: Amplitude can instantly increase or decrease in the adjustment process, also can be micro adjusted, can effectively prevent the perfect size pieces of plastic welding, effectively reducing wear shock, burns and so on. Defective amplitude setting range of 10% to 100%.

3. Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of the malfunction prompts until technician troubleshooting.

4. Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.

5. Two kinds of welding mode switch back and forth, so that a higher precision welding, soldering and better results.


Q: What is the solution to manual wire burials where the wire breaks?

A: 1. Ensure that the tool head and the card are 90 degrees perpendicular;

2. No knotting in copper wire;

3. The pressure should not be too heavy, just touch it lightly.

Why choose us?

1. Oversea Service Team: We have agents in India, Australia, UAE, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, and also supply OEM service. Customize ultrasonic solution for different applications.

What we can do?

1. 24-hour after-sales response

2. Multilingual services

3. Targeted after-sale technology upgrade solutions

4. Ultrasonic Parts Supply and Technical Support Services

5. Multi-platform, multi-channel, multi-network after-sales service

6. Efficient after-sales and equipment health management system
