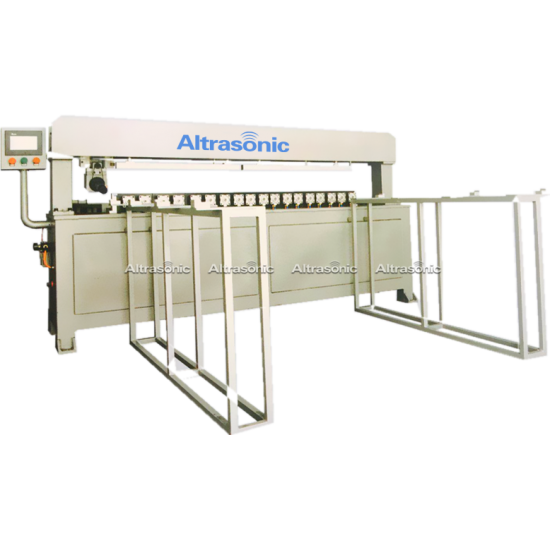

3000 Watt 20kHz Ultrasonic Welder , Ultrasonic Bonding Machine For Solar Panels

  • China
  • Altrasonic
  • HS-2030A
  • Shanghai or Ningbo
  • Silver
  • 1
  • T/T, PayPal, WWestern Union

  • Contact Now
Product Details



3000 Watt 20kHz Ultrasonic Welder , Ultrasonic Bonding Machine For Solar Panels




Description:


Solar metal rolling welding adopts the latest ultrasonic metal welding technology, providing 3000Watt, 20kHz ultrasonic power electric box and a continuous welding head. In the production process, the workpiece to be welded is placed in a specially designed precision fixture, which can adapt to different sizes of copper tubes and copper plates. Starting the welding process, the welding head of the welding machine presses the workpiece downward under the action of the air source, generating pressure and ultrasonic energy. The transducer converts ultrasonic energy into mechanical vibration energy. The welding head directly acts on the copper tube and copper sheet. The mechanical energy induced by the vibration acts on the workpiece to be welded. A variety of physical effects form a good mechanical connection.



Characteristic:


● Speed control system, welding direction can be set through operation panel

● The ultrasonic system is stable and reliable

● Unique structural design of the machine suited for various width products

● Flexible control, separate control, or with the overall control of the machine

● Simple mechanism and easy to install

● The welding horn is made of special steel through strict process and durable



Specification:


Item No.: HS-2030A

Frequency: 20kHz

Power: 3000Watt

Voltage: 220V ±20%, 50/60Hz

Switch: Handle or Foot switch

Weight: 1500kgs

Speed: 5-15m/min



Principle:


By using the ultrasonic high frequeccy vibration principle, the ultrasonic metal welder converts the ultrasonic vibration energy into friction energy to transfer the metal’s surface. Under condition of producing the heat by the friction and putting apressure to the metal, The metal pieces will fuse.



Innovation:


1. Hot ForgingAims to fabricate the work pieces of certain temperature into other shapes through forging press with the help of punch press ,forging machine or other equipments

2.SmeltingMainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to smelting of iron, steel, copper, aluminum, zinc as well as various precious metals;

3.Heat TreatmentIt is mainly aims to change the hardening of the materials through the heat treatment to work pieces. Such as , quench for various hardware and tolls, automobile and motorcycle, machine tools, hardware parts and machine parts, hardware mold, etc.

4.Welding/BrazingIt mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different material

5.AnnealingAnnealing of various stainless steel products and other work pieces , such as stainless steel basin, stainless steel tube, cue ,brass lock, aluminum radiator and so on.



Processing Center:



CE:



Shipping:



Payment:
