20khz Ultrasonic Food Cutter Machine with 305mm Blade For Automation Food Slicing

  • China
  • Altrasonic
  • HSC20
  • 1

  • Contact Now
Product Details

20khz Ultrasonic Food Cutter Machine with 305mm Blade For Automation Food Slicing


Frequency 20Khz
Power 800W
Input AC110-240V, 50/60Hz
Power Controller stepping or continuous
Length of the blade 82mm
Material Of Cutting Head stainless steel, titanium alloy, alloy steel.
Machine Wight 15~18KG
Accessories foot switch, additional blade
Cooling Device compressed air mouth can be installed.
Cable Length 3M or customized
Foot Switch available




This ultrasonic food cutting machine is perfect for sticky, difficult to cut, and delicate products. The Ultrasonic blade vibrates at 20 kHz to prevent the product from sticking to the blade, allowing each slice to have a clean quality look.

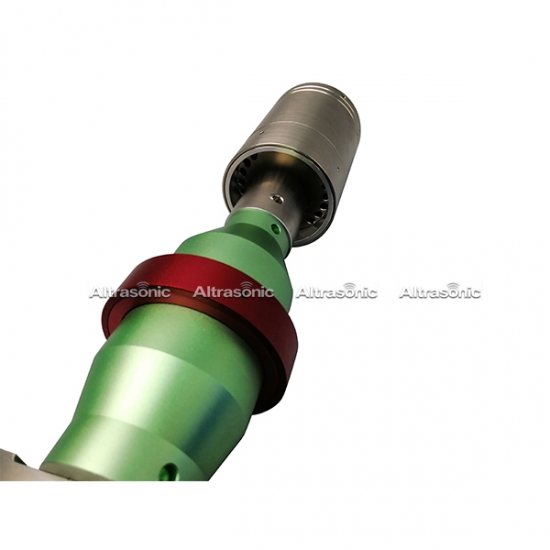

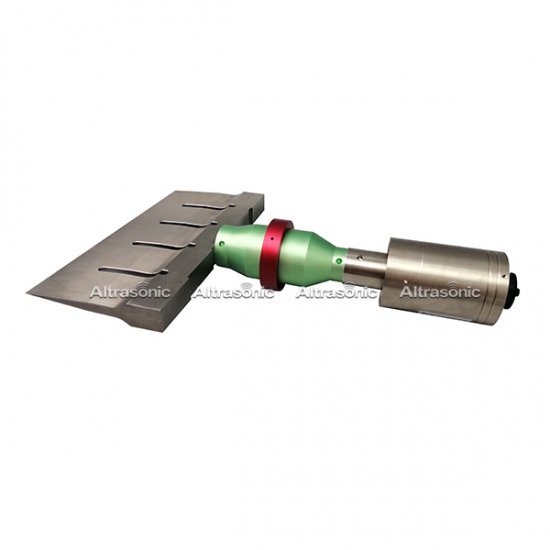

The ultrasonic food cutting machine (cutter) is composed of ultrasonic transducer (converter) with cover, booster, titanium blade and digital generator.

Ultrasonic cutting machine and the traditional sense of the principle of cutting completely different. It is the use of ultrasonic energy, will be cutting the material of the local heating and melting, so as to achieve the purpose of cutting materials.

Ultrasonic cake cutting machine is the use of wave energy for cutting a class of equipment, its biggest feature is the cutting without cutting edge. The traditional cutting is the use of cutting tools with sharp edges, pressed to the cutting material. This pressure is concentrated in the edge, the pressure is very large. More than the shear strength of the material being cut, the material of the molecular combination was opened, it was cut off. As the material is a strong pressure to pull hard, so the cutting knife its edge should be very sharp, the material itself to bear the relatively large pressure. Its soft, flexible material cutting effect is not good, more difficult to sticky material.


● frozen cakes and pies

● frozen fish

● snack and health bars

● fresh/frozen prepared meats

● dough or baked cookies

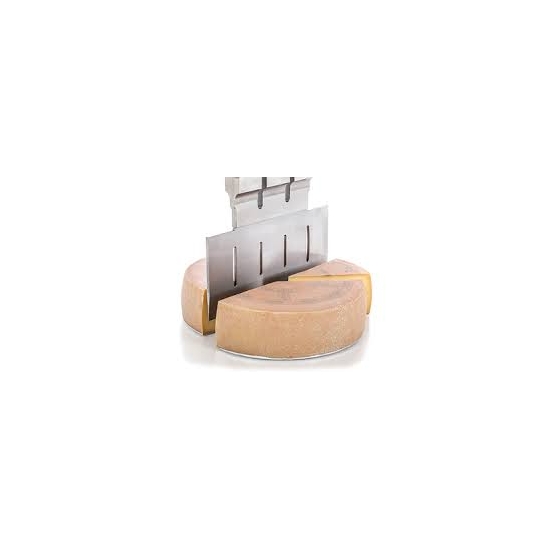

● soft and hard cheeses

● fresh/frozen vegetables

● candy and confections

● ice cream bars


  • Cutting speeds can be increased substantially
  • The vibration of the ultrasonic food processing system using high frequency wave to quickly cut food;
  • Greatly reduced normal down time for clean up
  • Provides a new way to cut piece, cutting, steering, and transfer alignment or different kinds of food;
  • Makes the cost of production flow minimization;
  • Especially for cutting high viscosity food;
  • Cutting is very hygienic;
  • The cut food looks neat and beautiful;
  • Suitable for automated assembly line, do not have to make a lot of changes to the original line, saving production costs.

Our service:

Free test: We accept samples from customers, do free test for customer.Also welcome customer visit our company for experiment.Your problem is our problem.

Oversea service: We have sub company in Australia,and agent in India,Malaysia,and Europe,we can offer oversea service for some customers. Our target is to be forever friend with every customer.

Customized solutions: We can customize individual program depending different requirements for different customers. Also processing with supplied samples,OEM service are welcomed



One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price

Quality control:


3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
