20Khz Ultraosnic water treatment system generator

  • China
  • Altrasonic
  • HS-DG-20
  • Hangzhou
  • Silver
  • 1
  • TT, West union, Paypal

  • Contact Now
Product Details

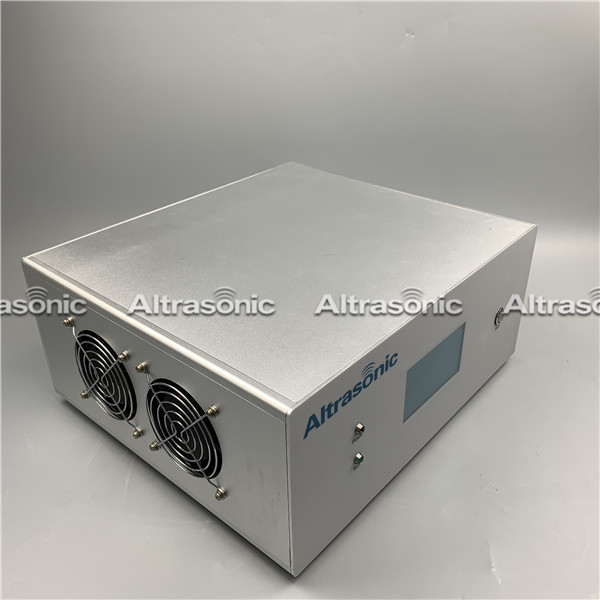

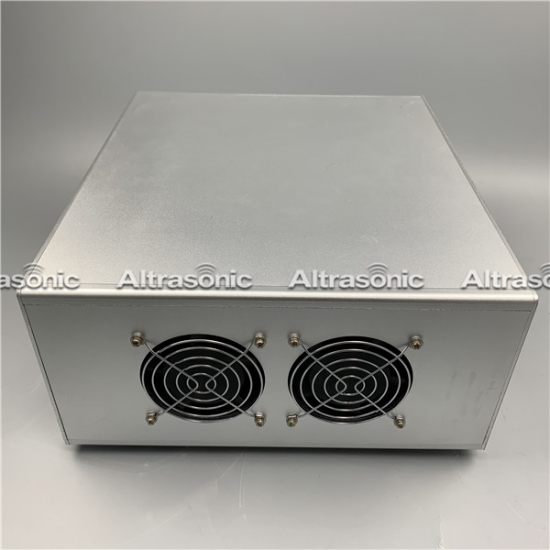

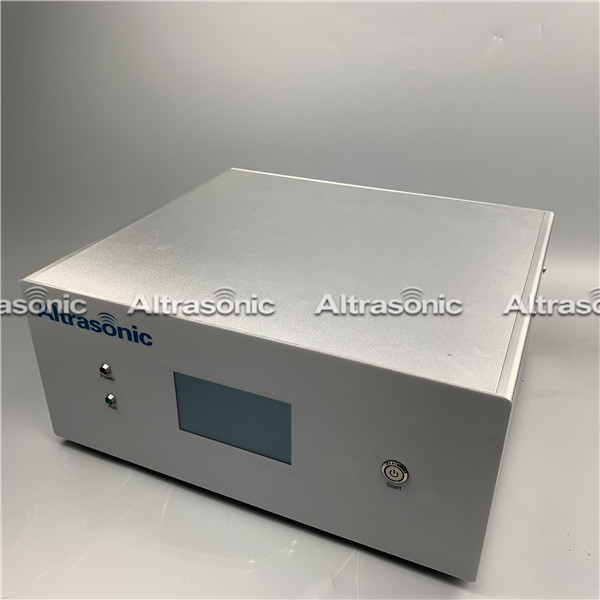

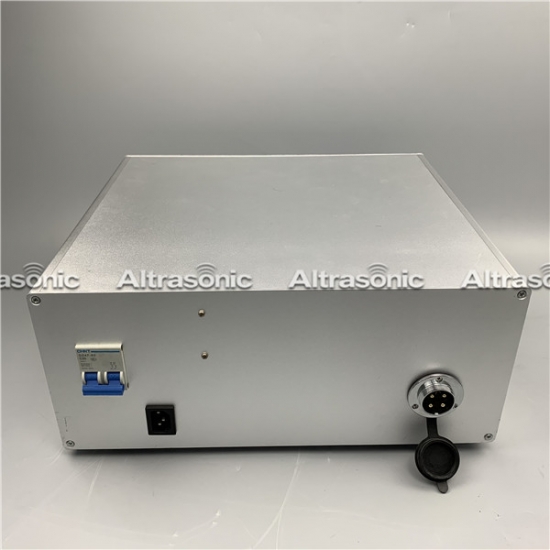

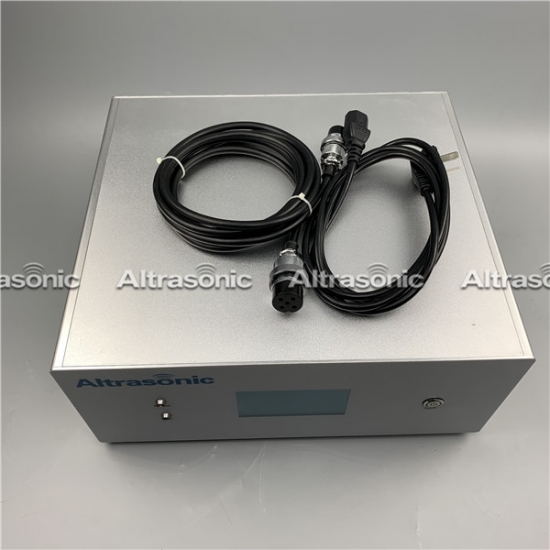

20Khz Ultraosnic water treatment system generator





The ultrasonic generator also called ultrasonic power , It is an important part of high power ultrasonic system. In 2019, Altrasonic created a generator dedicated to the ultrasonic sonochemical industry. We have updated the internal configuration of the generator to make the generator adjustment operation more stable.





Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.

Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic sonochemical and ultrasonic machining system.










500 – 30000 pF


380*350*180 mm


10 KG

Output Power



220 V    50 Hz







Competitive Advantage:


★ Real time monitoring: Monitoring the system operating frequency and power

★ Parameter adjustment: According to the different requirements, adjust the power, amplitude, the running time

★ Automatic equipment with frequency: Once the initial setup, can work continuously without the need to adjust the generator.

★ The automatic amplitude control: Changing load transducer work process can automatically adjust the driving characteristics of ultrasonic tool head, ensure the stable amplitude.

★ System protection: The system work in the unsuitable operation environment, the generator will stop working and alarm display, to protect the equipment from damage.

★ Amplitude adjustment: Amplitude can instantly increase or decrease in the work process, the amplitude of the set range: 0%~100%.

★ Automatic frequency search: Working frequency can be automatically measured and stored in the tool head.

★ Non resonant state (forced vibration): General driving power supply must be working in the resonant state; the power supply can be the special requirements of customers, stability in the non resonant state, very suitable for some special application of ultrasonic.






Analog generator

Digital generator


Analog circuit, discrete components

Digital circuit, the chip control

Automatic search


Automatic frequency tracking


Frequency adjustment range

±0.15 KHz

±0.5 KHz

Power regulation


24 hours of continuous work


Non resonant condition




Add the PLC protocol


Automatic circuit protection

Bad, easy to cause the damage of components


Repair method

Professional repair

Module replacement
