1+1 SMS 3 layers Medical surgical mask Production Line

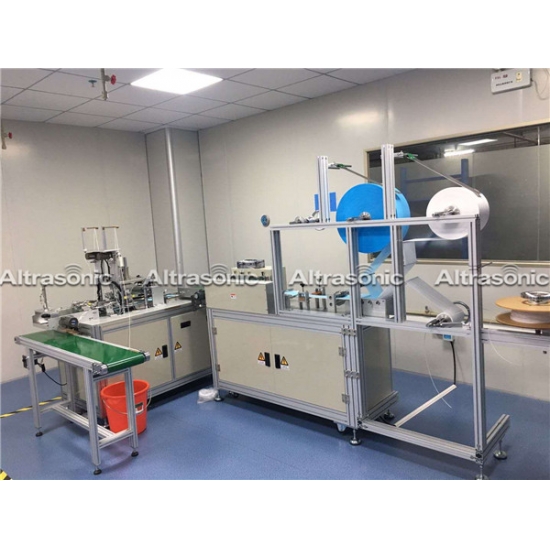

This machine is a fully automatic machine to produce the outside ear-loop face mask, including 1 of set mask body machine and 1 set of ear-loop welding machine. The process is from raw material feeding, nose wire welding&ear-loop welding to finished products.

This machine is mainly used for the automatic formation of flat masks: the entire roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; the entire length of the nose bridge is pulled and unrolled, cut to length and imported into the hemmed fabric, bilaterally Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter: the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. When the mask is made, it passes the assembly line. Conveyed to flat belt line for collection.


Voltage: single phase 220V / 50kz

Power: 5,000Watt

Working pressure: 5,000-8,000gf

Size: 4278 * 1915 * 1859

Output: 80 pcs / minute

Delivery time: 15 working days

Staffing: 1 person to manage 3-5 machines

Work Process:

1. 3/4 mask roll material feeding

2. Folding and pressing-nasal bridge tendon feeding

3. Ultrasonic welding interface mask molding

4. Mask cutting

5. Ear band cutting and ultrasonic welding

6. Finished product output-counting-finished product output



1. Automatic Mask Blank Machine:

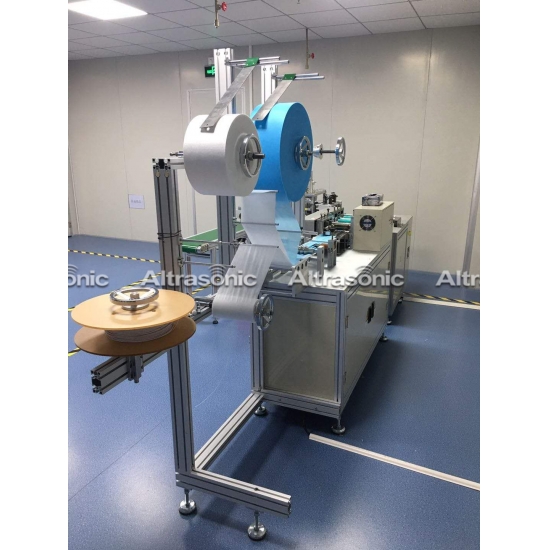

A set of feeding racks (non-woven stocking rack + filter dissolve spray cloth stocking rack + non-woven fabric stocking rack + nose bridge line stocking rack)

Set of feeding mechanism

Set of nose bridge material guide mechanism

Set of folding mechanism

Set of nose bridge cutting mechanism

Set of edge banding agency

Set of sheet cutting mechanism

Two sets of ultrasonic system

2. Automatic Ear Loop Welding Machine:

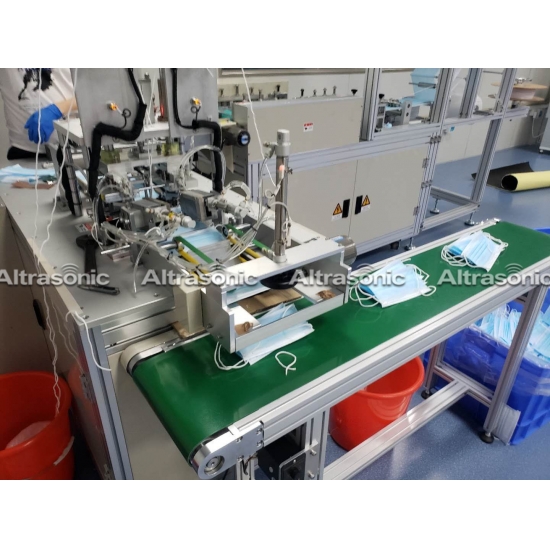

Set of mask blank conveying mechanism

Two sets of ear loop feeding mechanism

Two sets of winding mechanism

Two sets of ear-pressing mechanism

Two sets of ultrasonic system

Two sets of ear loop cutting mechanism




Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.



3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
