Ultrasonic wire harness welding machines are widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields.
Item No.:
HS-2050APayment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Silver and blackShipping port:

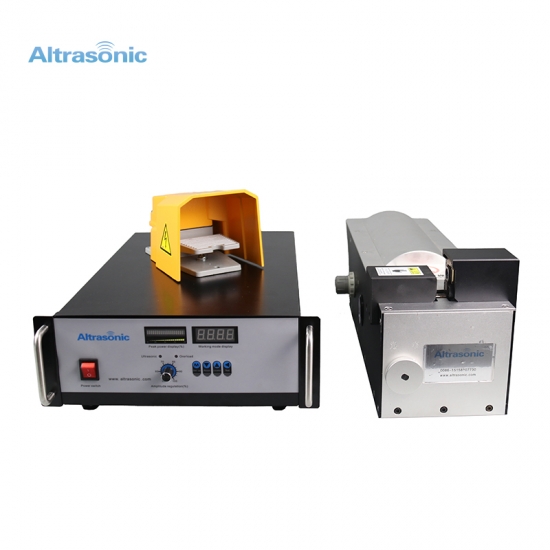

Shanghai or NingboUltrasonic Wire Harness Welder for Automotive Electronic Appliances
Specifications:
Item No
HS-2050A
Frequency
20 kHz
Power
5000 watt
Welding area
0-35 mm²
Working air pressure
0.05-0.9 MPa
Weight
55 KG

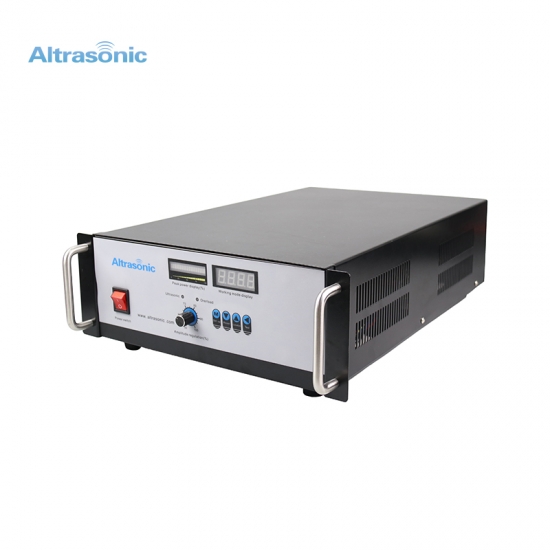

Generator size
500*400*160 mm

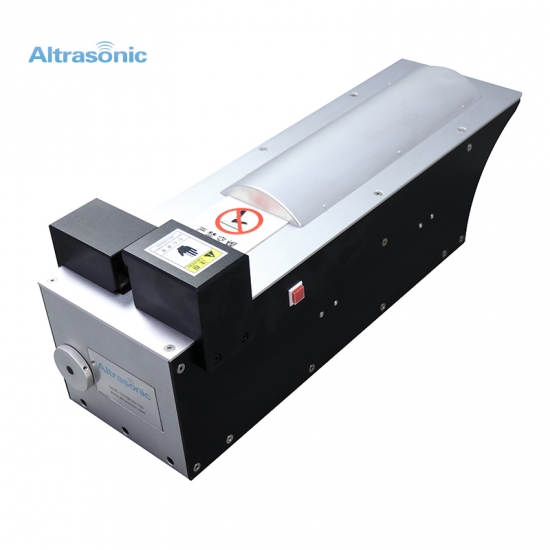

Machine size
600*200*260 mm
Advantage:
1. One of the most important advantages of ultrasonic welding is that the temperature is low. Under the low temperature produced by the welding process, the insulation of the wire is not damaged due to the annealing and the low temperature, and the metal wire retains the original performance.
2. Ultrasonic welding is a mechanical process, no current flows through the workpiece, so the conductivity of the metal has no effect.
Application:
The ultrasonic wire harness welding machine can weld the wire harness forming of 0.5mm²-50mm². It is mainly used in automobile wiring harness connecting wire lap welding, electric wire head forming, wire mutual welding, multiple wires butt joint and mutual welding into wire knots.
Ultrasonic wire harness welding machine trial material copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire and wire harness and other copper wire, aluminum wire welding.
Workshop:
CE:
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Payment:
