The ultrasonic intensity of the liquid sound field (sound power) is one of the most important indicators of the ultrasonic system. It has a direct impact on the cleaning effect of the cleaning machine, the efficiency of the ultrasonic processing machine. Sound intensity measurement instrument can be anytime, anywhere, fast and easy to measure the strength of the sound field, and intuitively give the sound power value.
Item No.:
HS-C2001 、HS-C200C、HPayment:
T/T、PaypalMarket price:
$1300Price:
$1258Product origin:
ChinaColor:
yellow、blue、blackGoods_stock:
2000Shipping port:
ShangHai、NingBoLead Time:

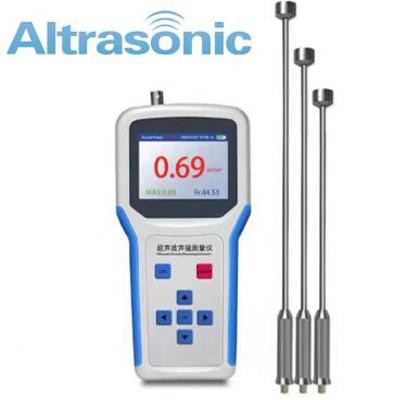

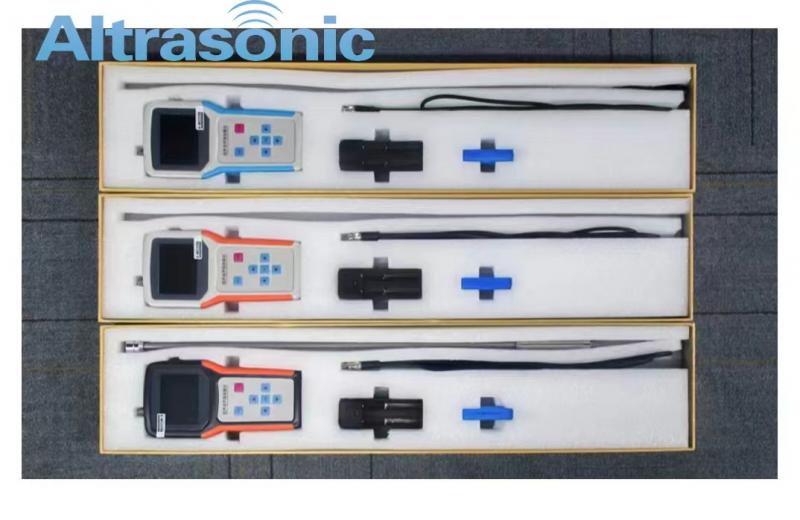

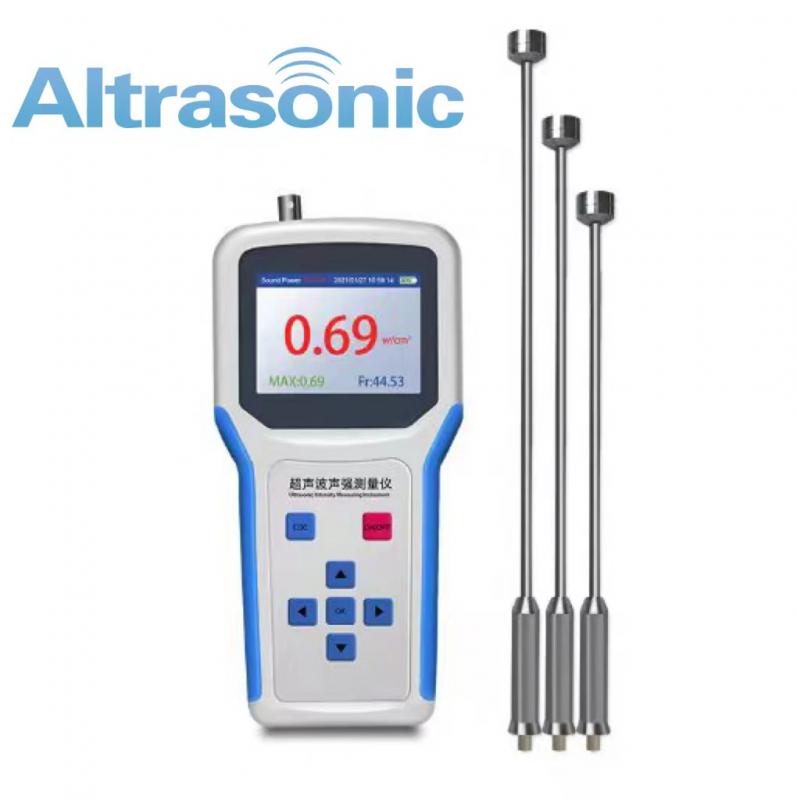

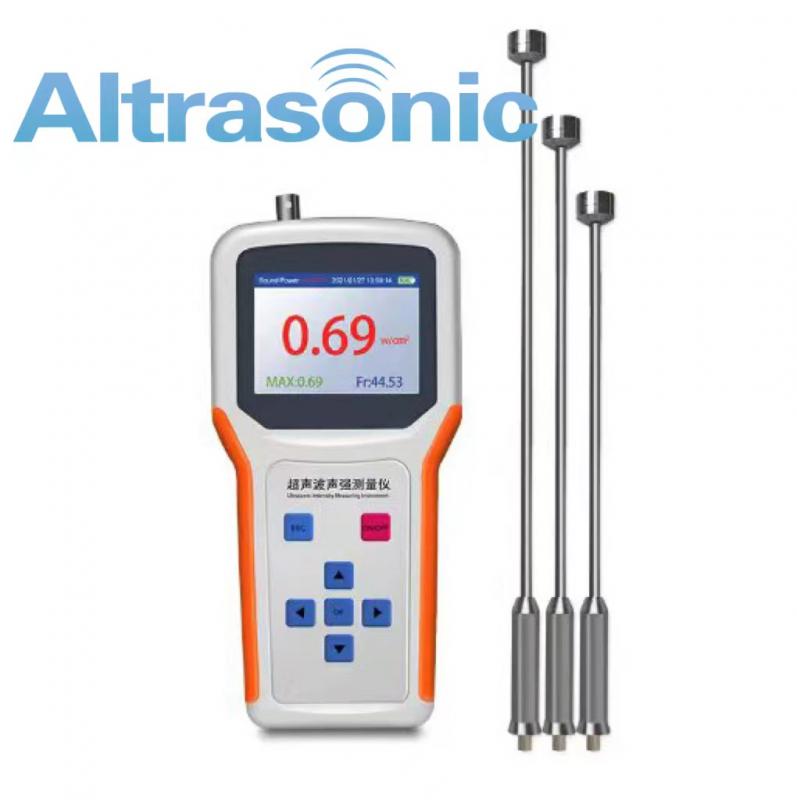

7Ultrasonic Sound Intensity Measuring Instrument
The sound intensity measuring instrument uses the positive piezoelectric characteristic of piezoelectric ceramics, that is, the piezoelectric effect. When we look at piezoelectric ceramics. When a force is applied, it converts that force into an electrical signal. Under the same conditions, the effect The stronger the force, the higher the voltage. If the magnitude of the force changes with a certain period, the piezoelectric ceramic will output an AC voltage signal of the same frequency. Due to cavitation and other disturbances, the actual voltage waveform is one the superposition of the main wave and many minor waves. The precision ultrasonic frequency (energy) analyzer produced by our company can visually view the actual acting waveform and read the sound intensity value.
Specification
Instrument type
GBS-UEC200C
GBS-UEC2001
GBS-UEC3001
GBS-UEC300P
Measuring range
0.01-25.40
0.01-25.40
0.01-25.40
0.01-25.40
Measuring frequency
/
10.0-99.9
10.0-200
Number of memory groups
13
13
13
200
Resolution
1%
1%
0.1%
0.1%
Calibration function
Fluid temperature
0-135℃
Standby power consumption
（W）
10
Battery display
Energy-saving mode
Storage interval
fixed
Optional (1-600s)
Data export mode
no
Can connect PC/PLC, can communicate
Frequency display
no
yes
Display mode
3.2 inch TFT(320*240)
Power supply mode
3.7V*2 rechargeable battery
Probe material
Conventional
precise
Probe housing
Stainless steel seal tube
Probe length (customizable)
0.5m stainless steel probe +0.5m cable
Mode of operation
Film keying
（w/m2）
（KHZ）
Data display
Instantaneous value, maximum value, instantaneous frequency, sound intensity curve, recorded value
yes
yes
yes
Advantage
1. The measuring instrument is simple to use and accurate to measure.
2, real-time power detection, timely remind users.
3, with power-saving mode, long working time.
