Home Ultrasonic Welding Machine

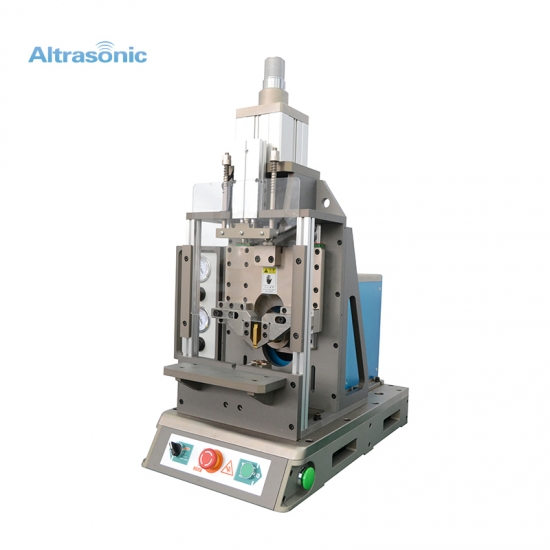

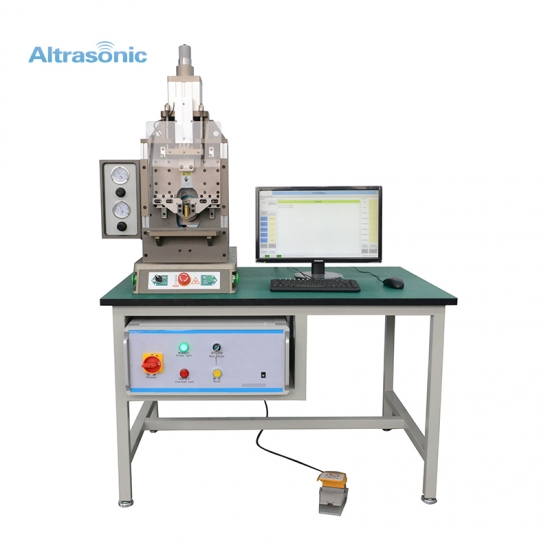

Ultrasonic Metal Welding Machine

Supply of ultrasonic motor terminal metal welding machine, metal spot welding machine, metal welding machine

Supply of ultrasonic motor terminal metal welding machine, metal spot welding machine, metal welding machine

Metal welding equipment is often used for: battery cell tab welding, semiconductor IGBT module welding, new energy automobile wiring harness welding, etc. Ultrasonic welding, etc.

  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

Supply of ultrasonic motor terminal metal welding machine metal spot welding machine  metal welding machine

Specifications:


 Frequency  20 kHz
 Power  2000-5000 watt
 Voltage AC 110/220±10% V 50/60±10% Hz
 Weight  About 55 KG
 Generator   Digital genertal
 Warrty  1 Year Warrty



Principle:


Ultrasonic metal welding machine use ultrasonic frequency vibration principle to change ultrasonic vibration energy into friction energy and transfer to the metal surface to be welded ,while the friction produces heat under the pressure, the metal structure of molecules fully activation of the fusion between the molecular layer of the formation of the new equipment.



Features of Ultrasonic Terminal Copper Wire Welding Machine:

1. Using PLL phase-locked frequency automatic tracking technology, no need for frequency modulation;

2. Original imported piezoelectric ceramic transducer with high output power;

3. Welding heads with independent intellectual property rights can reduce the cost of use worldwide;

4. Digital display makes it easier to adjust the welding of metal wire harness;

5. The wire harness welding machine is controlled by man-machine interface, and a variety of parameters are stored;

6. Energy detection mode to ensure the consistency of welding quality;

7. The whole machine is small in size, light in weight, beautiful in appearance and easy to move;

8. Ultrasonic wire harness welding machine adopts stepless adjustment of amplitude, no need to replace the amplifier frequently.



Advantages:


    1. Microcomputer control, electronic tuning frequency.

    2. Power adjustable, operate simple, and run stable and reliable.

    3. LED display keeps the machine visible in operation and regulation.

    4. Imported components, good performance in energy output.

    5. Overcurrent protection and soft start can keep the machine safe.

    6.  Easy installation and operation.






Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
