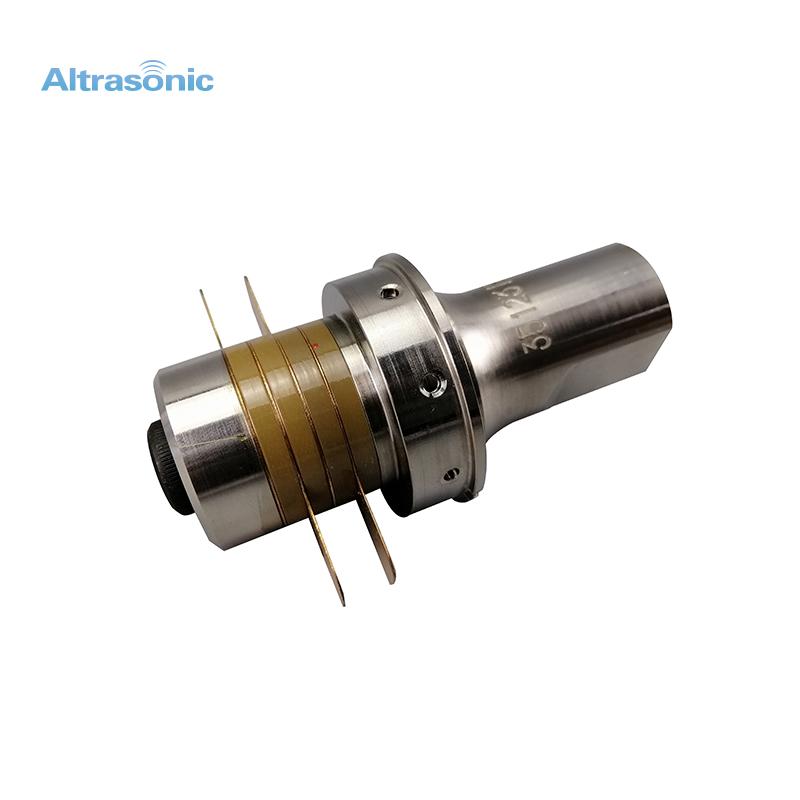

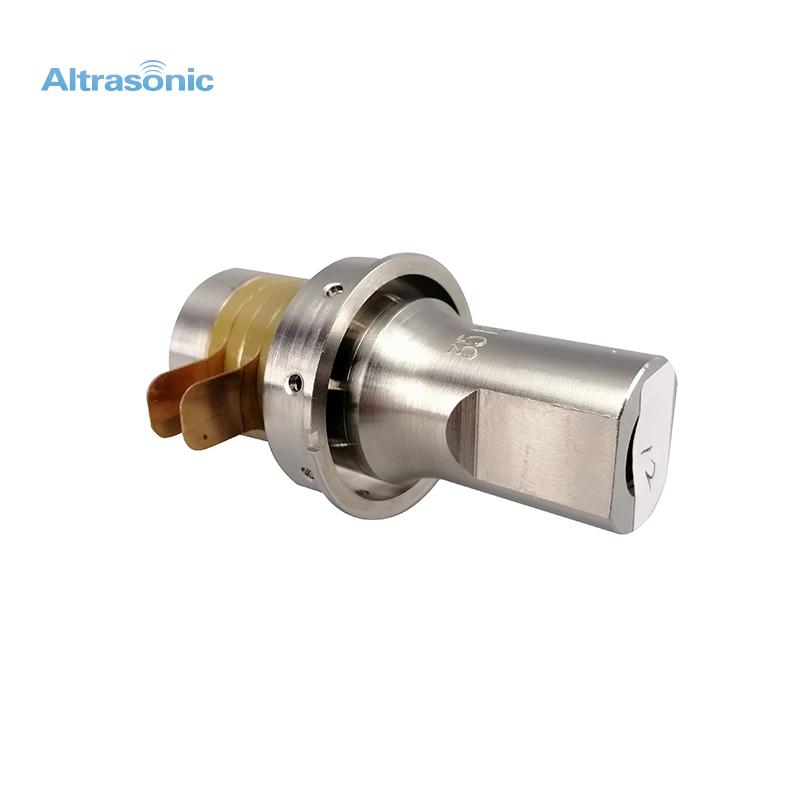

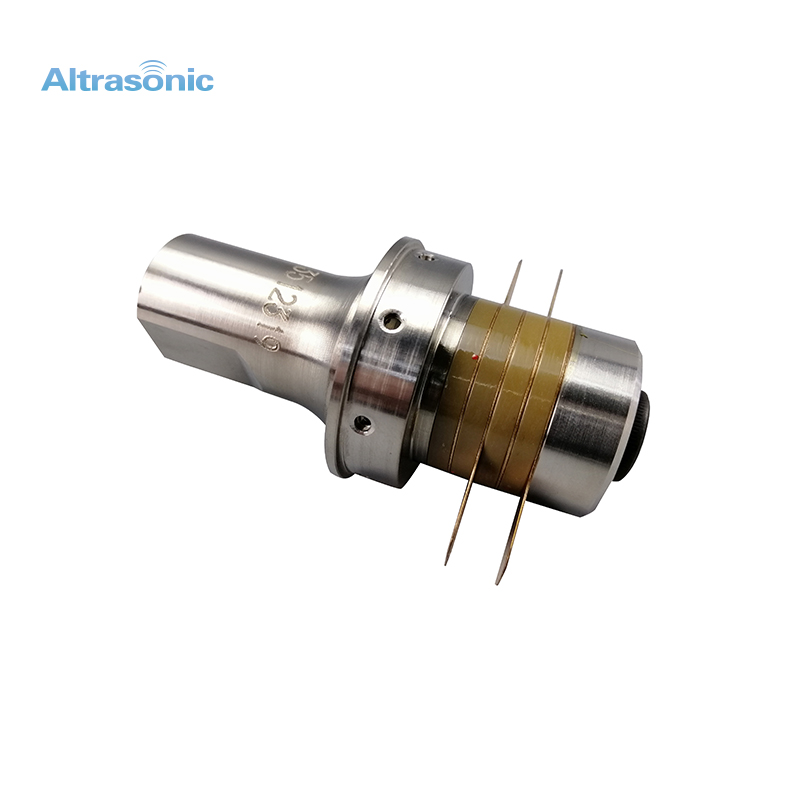

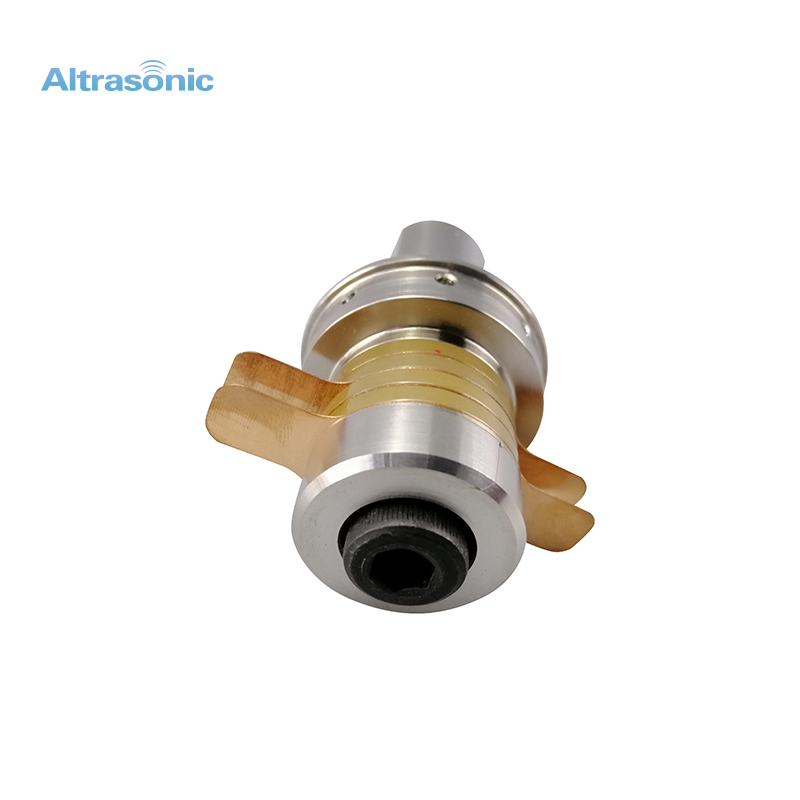

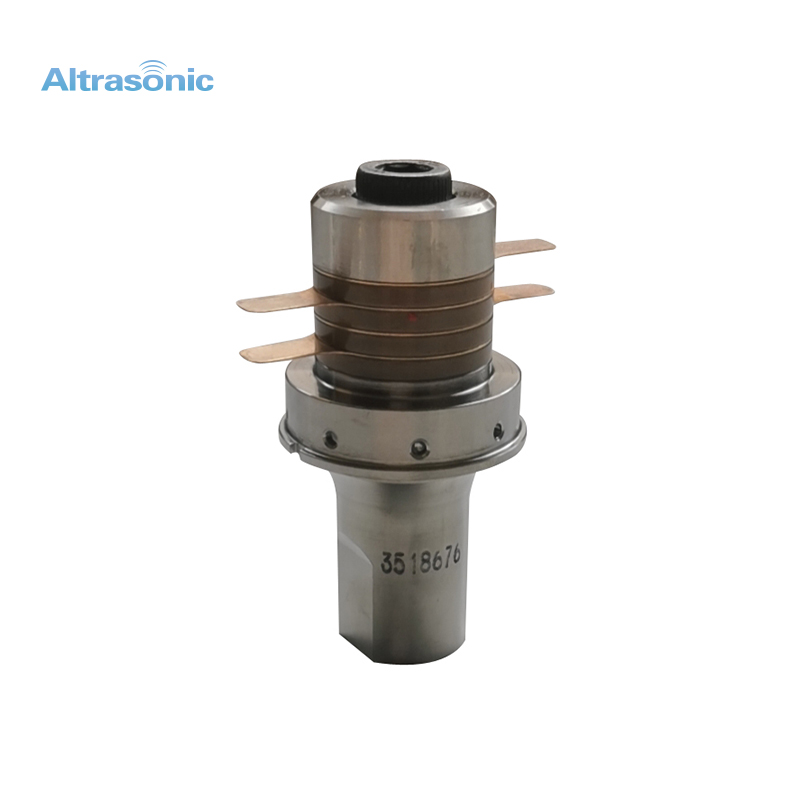

The 35 kHz ultrasonic transducer can be used in welding machine, cutting machine and sewing machine. It can help you do these things more easily.
Item No.:
HS-2535-4DPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver, black and yellowShipping port:
Shanghai or NingboLead Time:
7Reliability 35 khz Ultrasonic Piezoelectric Transducer with Long Service Life
Specification:
HS-2535-4D
M8
Item No
Frequency
35 kHz
Power
500 W
Joint bolt
Diameter of ceramic
25 mm
Quantity of ceramic
4 pcs
Resistance
25 Ω
Amplitude
4~6 um
Application
Sealing and Cutting
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Advantages:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
