Home Ultrasonic Welder Repair Branson

Branson Type Converter

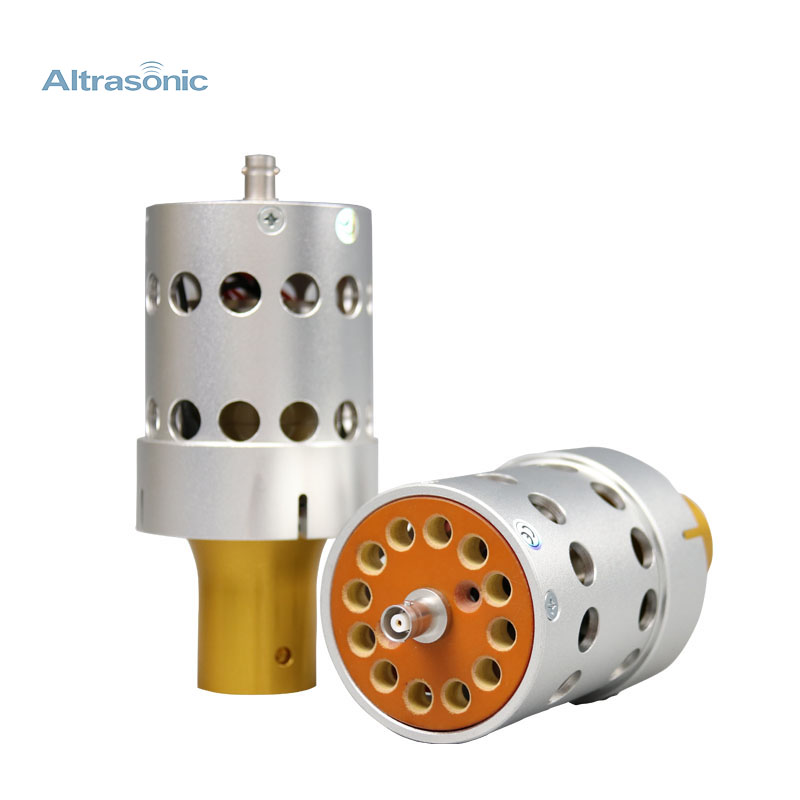

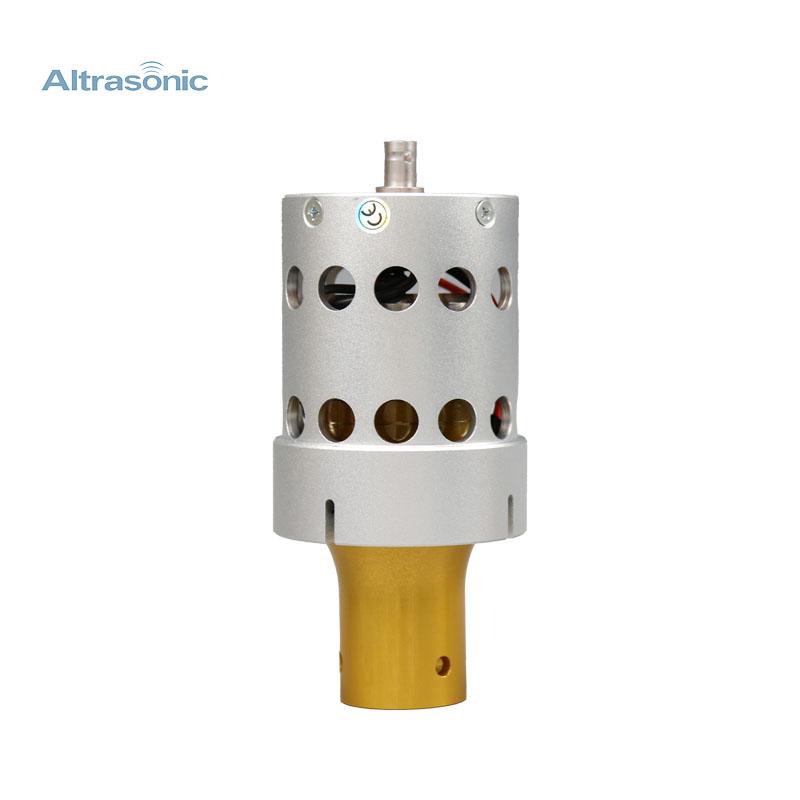

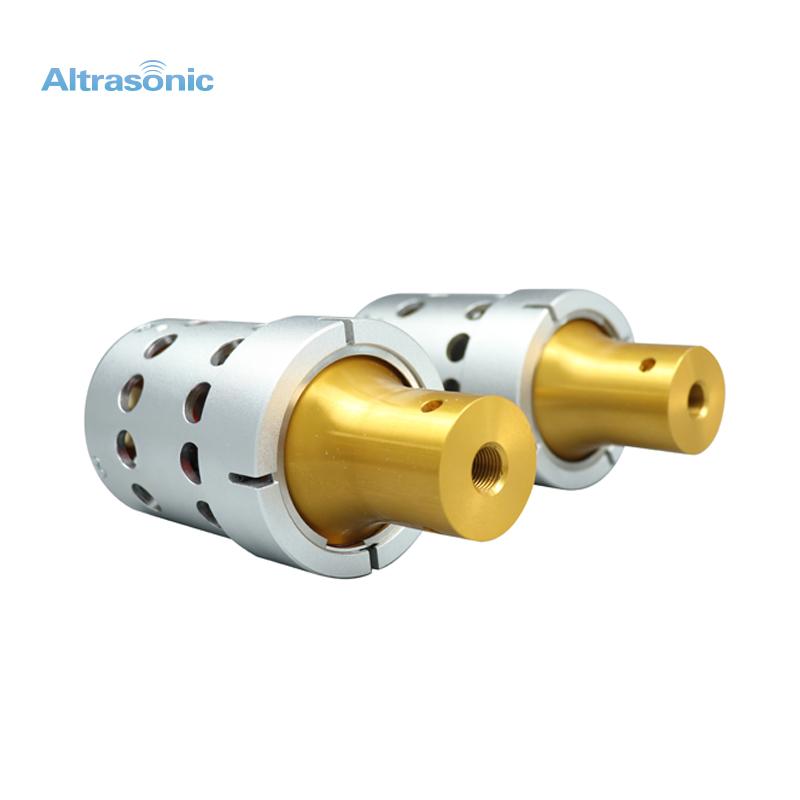

Lower Price Replacement Dukane 41C30 With Protect Housing

Lower Price Replacement Dukane 41C30 With Protect Housing

The 2000 Watt 20 kHz Ultrasonic ConverteDirect replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.

  • Item No.:

    HS-D41C30
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Sliver and Yellow
  • Shipping port:

    Hangzhou or Shanghai
  • Lead Time:

    7
  • Product Details



Lower Price Replacement Dukane 41C30 With Protect Housing



Description:


The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Specification:


 Item No  HS-D41C30
 Frequency  20 kHz
 Power  2000 watt
 Connect screw  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Capacitance  11-17 nF



Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system, which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
