Classic Ultrasonic Plastic Welding Application for Automotive Industry
Product origin:
ChinaClassic Ultrasonic Plastic Welding Application for Automotive Industry
Specifications:
Model | HS-40 | HS-35 | HS-30 | HS-28 | HS-20 |
Frequency | 40khz | 35khz | 30khz | 28khz | 20khz |
Power | 500W | 500~800w | 500~800w | 500~800w | 500~1000w |
Horn | ≤10mm | ≤10mm | ≤10mm | ≤12mm | ≤13mm |
Housing Diameter | 44mm | 44mm | 44mm | 44mm | 64mm |

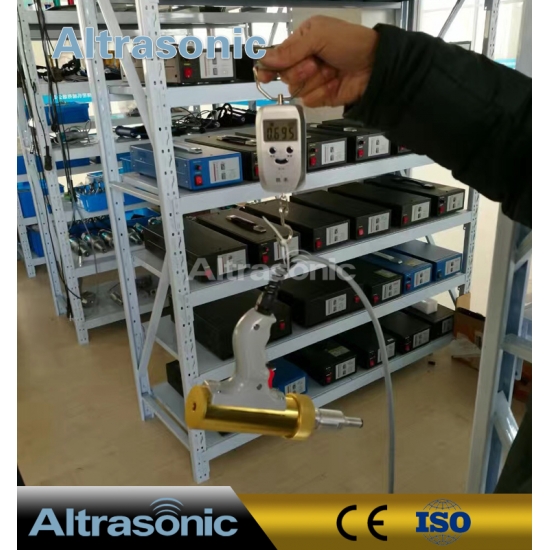

Weight of Welder | 1.0kg | 1.0kg | 1.0kg | 1.0kg | 1.5kg |
Advantages and Disadvantages of Ultrasonic in Auto Industry.
Advantages:
Disadvantages:
Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).
Condition of Ultrasonic Welding:
Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.
Attention of Ultrasonic Welding
With the amplitude, the higher the amplitude, the higher the temperature rise. The pressure is applied to the molded article using a cylindrical gaze. General compressed air pressure is 0.1-0.3MPa (pressure gauge), sometimes higher. But if the use of high pressure, it will hinder the cylindrical vibration.
The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).

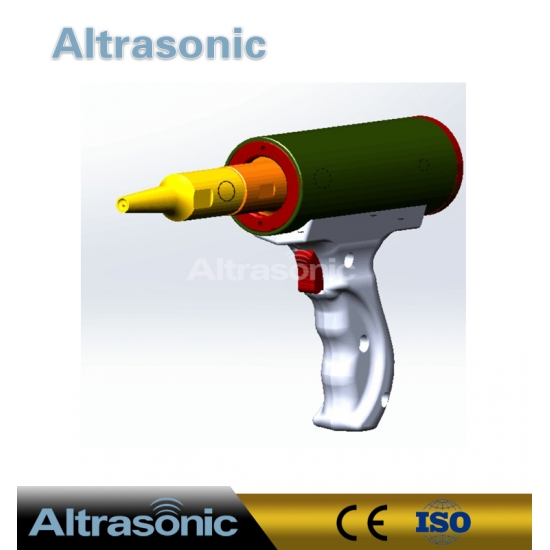

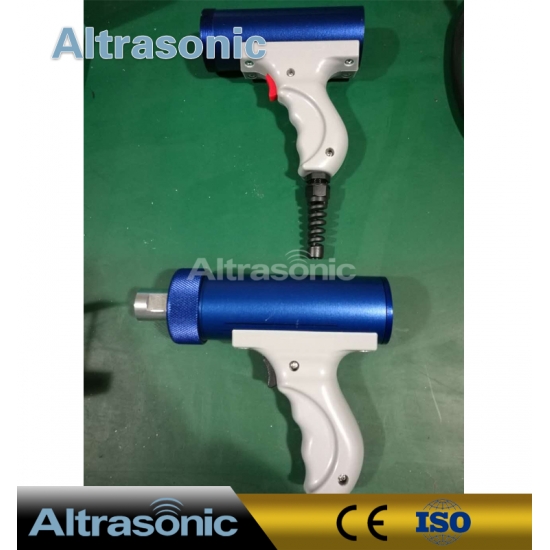

Portable Ultrasonic Auto Rear Spoiler Welder Principle:
Applications In Automobile:
Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.
Previous :
28Khz Ultrasonic Riveting Welder with New Auto Application for Tail Lampes Intake ManidoldsNext :
Ultrasonic Hand-held Plastic Welder Portable for Welding Car PartsIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
