Ultrasonic Welding is a Low Stress Process For Components and Makes Complex Component Geometries Possible


Description:


Ultrasonic welding of thermoplastic materials is a weld technology utilizing mechanical vibrations to generate heat due to molecular friction. These vibrations excite the molecules in the plastic so that they start moving. The plastic becomes soft and starts melting. The components are bonded by cohesive or form-fit joints After a short hold time under pressure, they are firmly joined molecularly.


Specifications:





                             Gun Type& Cylinder Type

Model

HS-40

HS-35

HS-30

HS-28

HS-20

Frequency

40khz

35khz

30khz

28khz

20khz

Power

500W

500~800w

500~800w

500~800w

500~1000w

Horn

≤10mm

≤10mm

≤10mm

≤12mm

≤13mm

Housing Diameter

44mm

44mm

44mm

44mm

64mm

Weight of welder

1.0kg

1.0kg

1.0kg

1.0kg

1.5kg

Digital generator

Analog generator

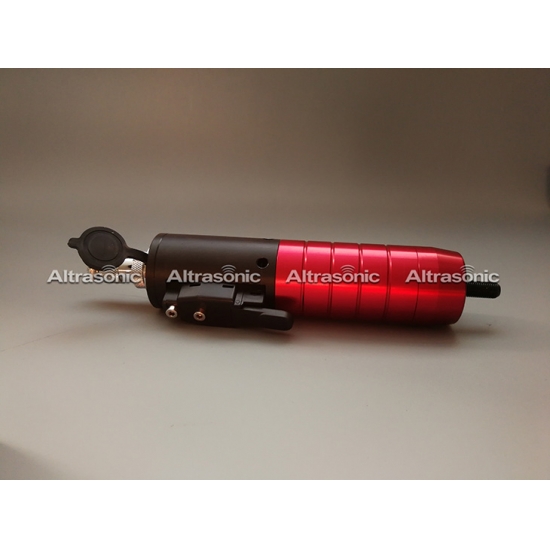

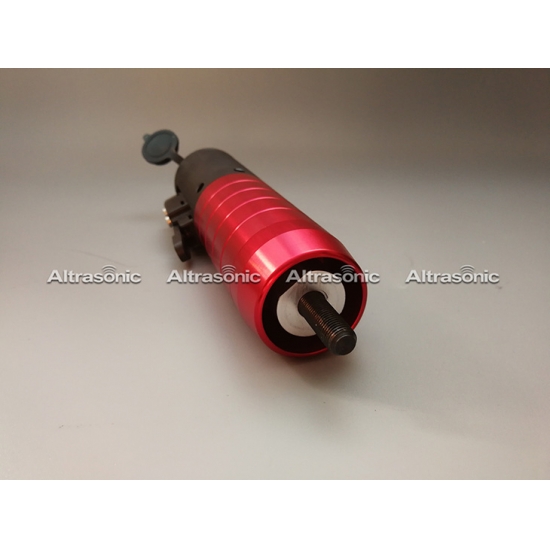

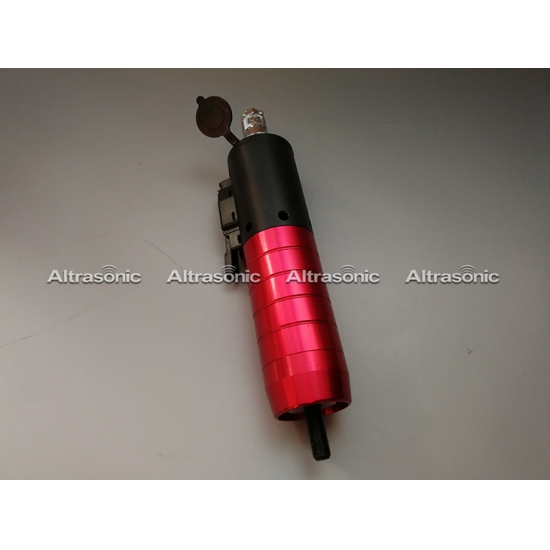

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.



How does ultrasonics work?

Ultrasonic vibrations are mechanical longitudinal waves that:

achieve deformation in plastic materials

cause friction between molecules

The resulting friction heat generates a melt that bonds the joining partners within the molecules.


Friction occurs due to impedances in the material, absorption and reflection of the mechanical vibration:

internal friction in the molecule bond = dissipative work

external friction between joining partners = surface friction


Interior:


Ultrasonics is not only suitable for joining plastic materials with each other, but also for joining plastics and other materials, such as metal, or wood. Even chromium components are suitable for ultrasonic staking. By means of sonotrode grouping, it is also possible to realize particularly demanding joining tasks, such as welding of large instrument clusters. Brilliant surface finish and precise gap control is achieved.


Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.


Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.

Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic work piece, so as to achieve the effect of ultrasonic welding.


Applications In Automobile:



Ultrasonic welding is particularly suitable for:


Joining of injection-molded parts

Embedding of membranes

Embedding of leather, nonwoven materials, and textiles

Staking of different types of materials

Production of form-fit joints by swaging

Inserting of bushes and magnets


Requirements:



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

There are three common horn material:

1.Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

2. Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

3. Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.
