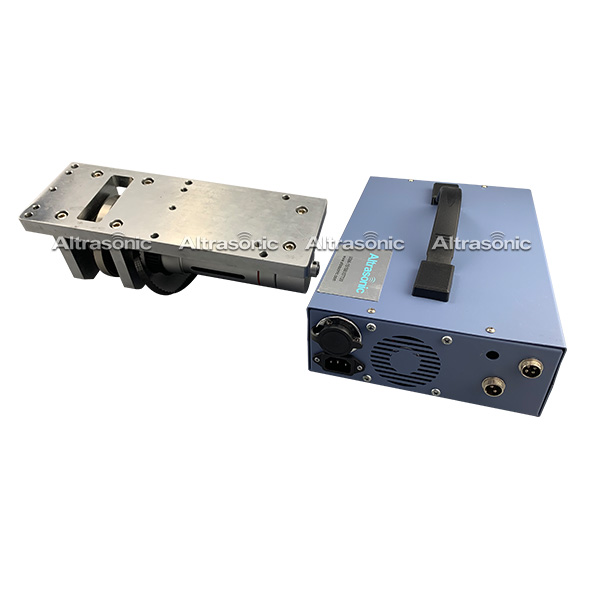

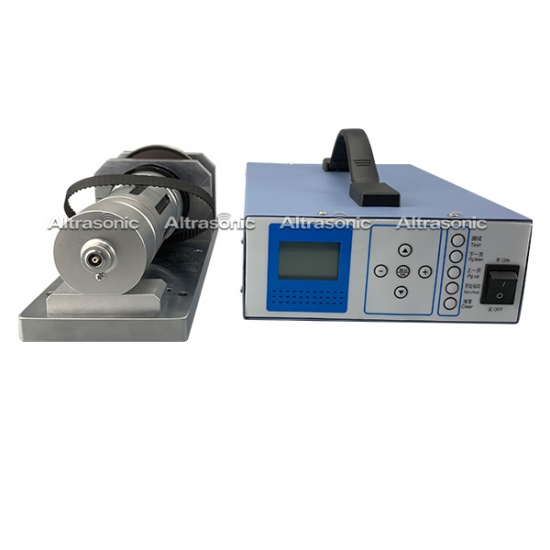

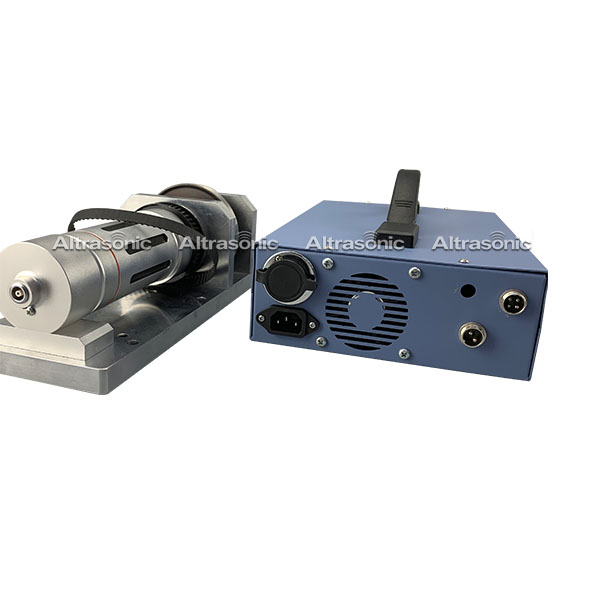

The ultrasonic sewing system consists of 35Khz ultrasonic longitudinal-vibration transducer, the first booster, one-piece circular horn, the second booster and matched special generator.
Item No.:
HSF57B-CBPayment:
100% TT, West union, PaypalMarket price:
$3200Price:
$2160/setProduct origin:
ChinaShipping port:
Shanghai
35Khz Ultrasonic PET Sheet Sealing Machine with Rotary Titanium Wheel
Description:
The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.
Specifications:
| Model | HSF57B-CB |
| Frequency | 35 KHz |
| Power | 800 W |
| Rotary Welding Horns Width | 12 mm |
| Power Adjust Method | File or Continuous |
| The Horns Surface Hardness | More than HRC56 |

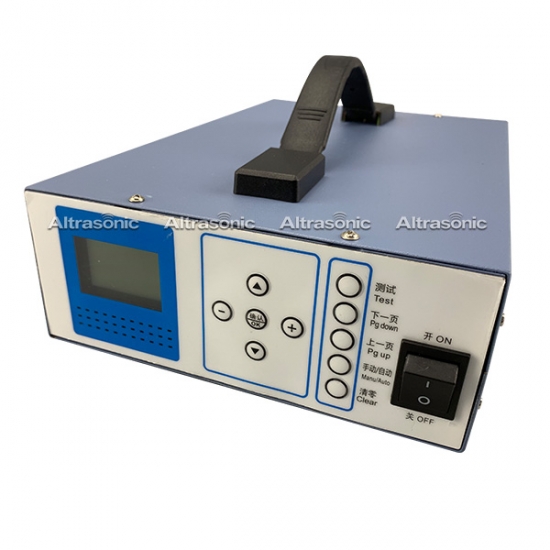

| Real-time Display | Working Frequency and Working Current |
| Synchronizing Wheel Specifications | 46XL Trapezoidal Tooth,Width16mm |
| Synchronizing Belt Matched | The Length is not more than730mm,the Width 12mm |
| Allowable Rotation Speed | 100 r/min. |
| Install Bolt | M8, 4 pcs |
Application:
Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.
Previous :
35Khz Ultrasonic No Sewing Machine for Special Material Waterproof PVC SheetNext :
800w Ultrasonic Sealing and Cutting for PET Plastic Sheet with Rotary HornIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
New Products
The 35kHz ultrasonic sealing machine is specially designed for thermoplastic fabrics such as nylon fabric, PVC, PU, TPU fabric and non-woven fabric.
ALTRASONIC offers a new, trendsetting-welding technology that fulfils high quality requirements through its reliability and precision. Versatile application such as for clothing, active wear or underwear etc. makes our machines a good supplement to conventional production.
Ultrasonic sewing machine series materials: elastic fiber, warp knitted fabric, polyester, nylon, acrylic, ethylene, polyvinyl chloride (PVC)...
ALTRASONIC offers a new, trendsetting-welding technology that fulfils high quality requirements through its reliability and precision. Versatile application such as for clothing, active wear or underwear etc. makes our machines a good supplement to conventional production.
35khz ultrasonic roller sewing machine is more suitable for welding textile fabrics such as chemical fiber fabric with PU, TPU coating treatment.
35khz 800w Ultrasonic Sealing Machine for Non-woven Fabric, TPU, PP, PVC materials.

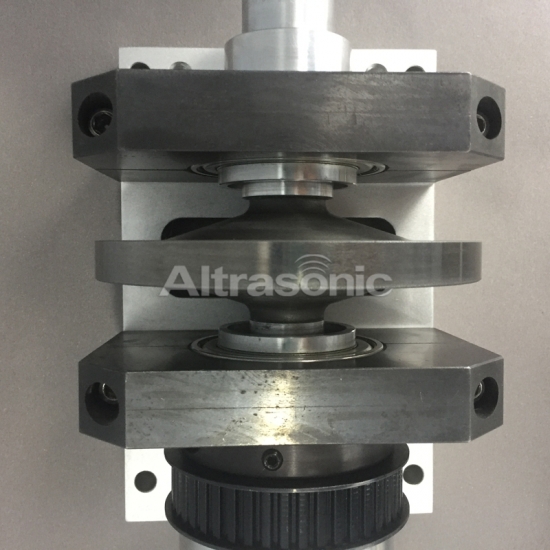

The rotary welding system is core part of ultrasonic sewing machine , it is easy to install and very durable.
