With good quality and factory price.
Item No.:
HS-HM35Payment:
T/T, Paypal, Western UnionProduct origin:
ChinaColor:
Sliver and YellowShipping port:
Hangzhou or ShanghaiLead Time:
7
Description:

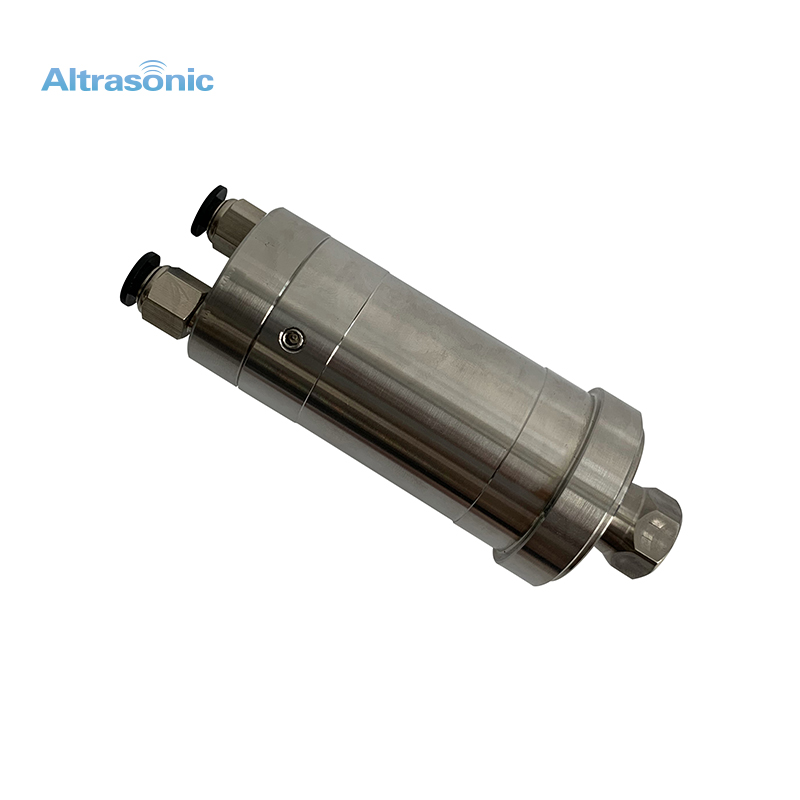

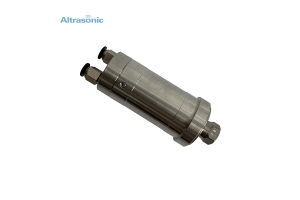

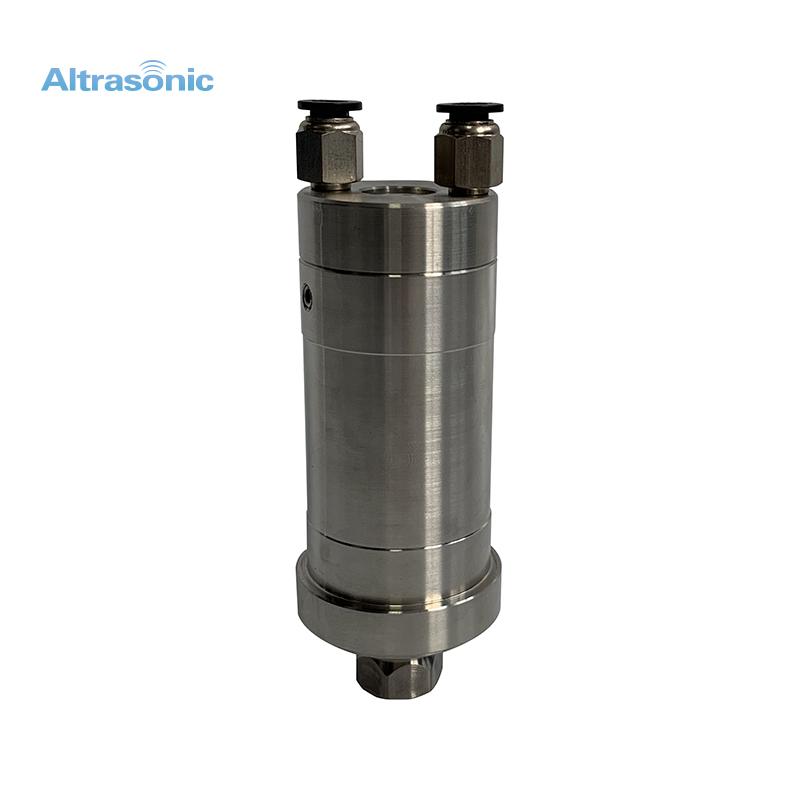

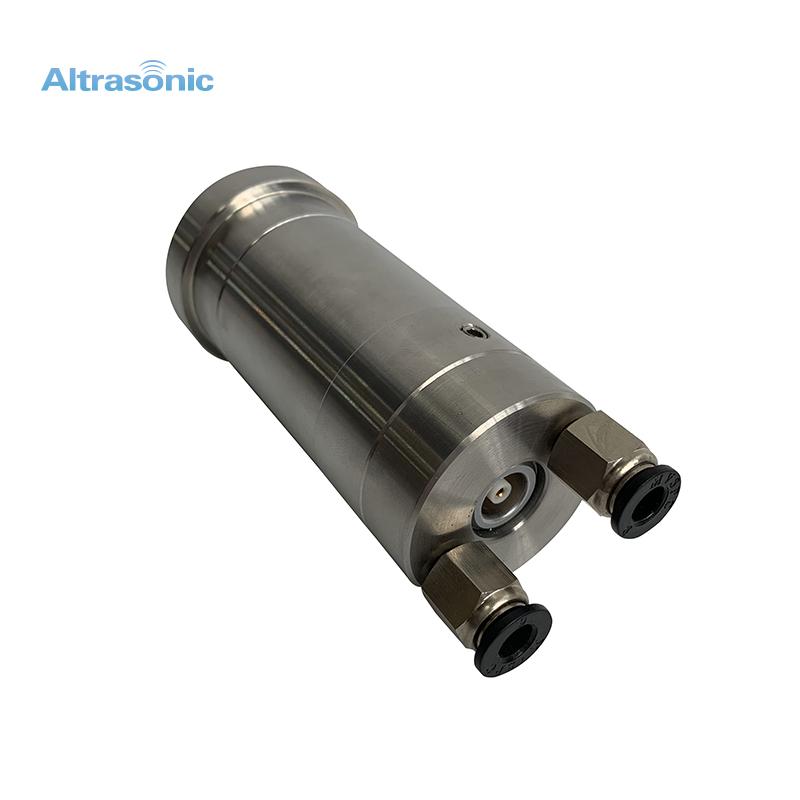

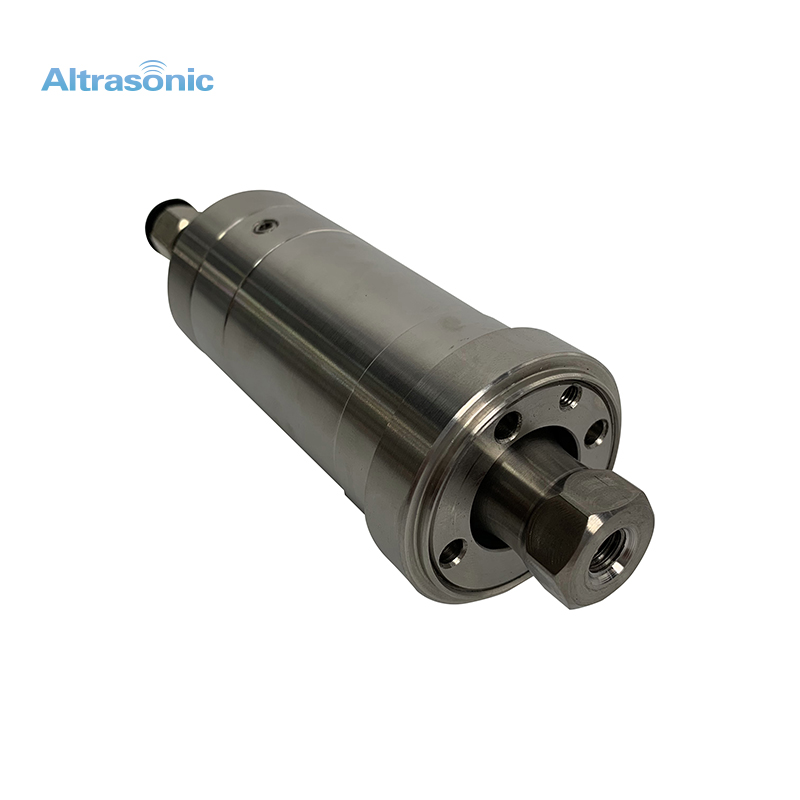

The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Typeis applied to Herrmann type ultrasonic welding machine. The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Specification:
Item No
HS-D41C30
Frequency
20 kHz
Power
2000 watt
Connect screw
1/2-20 UNF
Diameter of ceramic
50 mm
Quantity of ceramic
4 pcs
Capacitance
11-17 nF
Advantages:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of
piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing
will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Next :
China Manufacturer Zhejiang OEM High Quality Ultrasonic Transducer Replacement Herrmann 35kHz TypeIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
