The 25 kHz ultrasonic transducer is widely used in ultrasonic cleaning machine and high-power industry cleaning devices. We'll provide factory price with prompt delivery.
Item No.:
HS-2528-2ZPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver, black and yellowShipping port:
Shanghai or NingboLead Time:

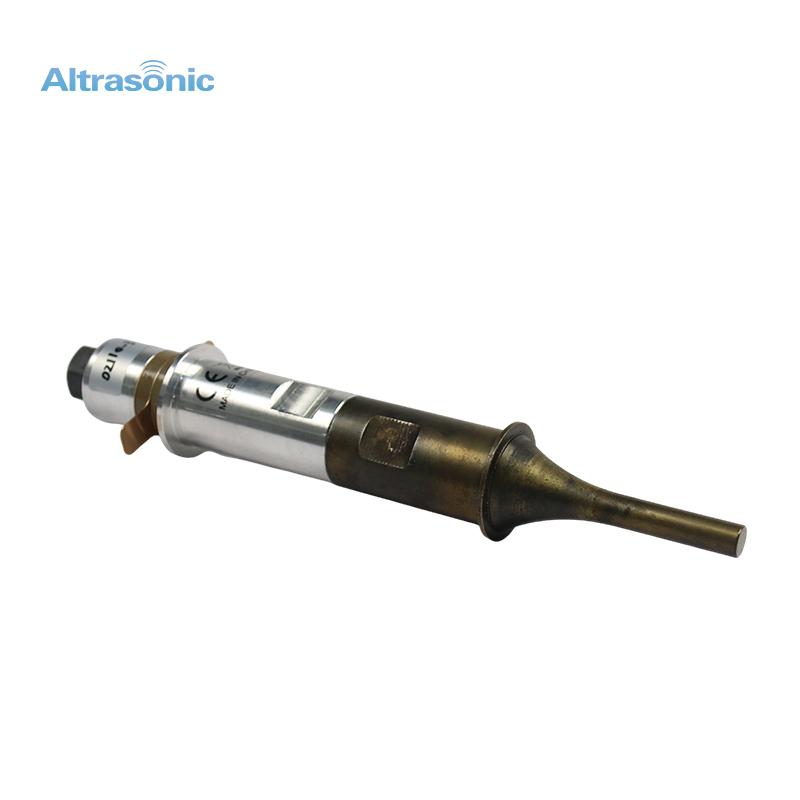

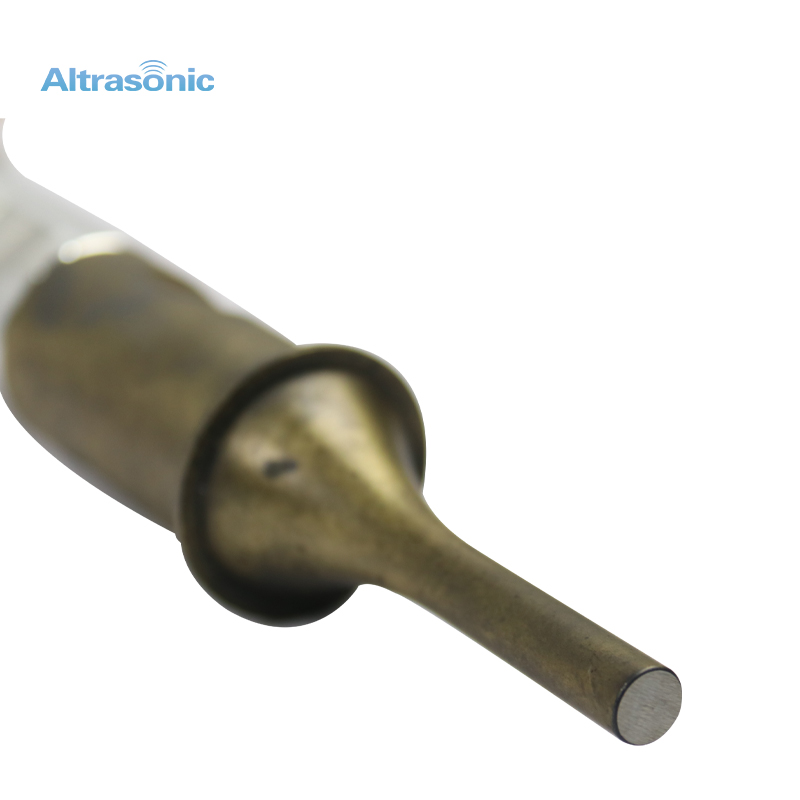

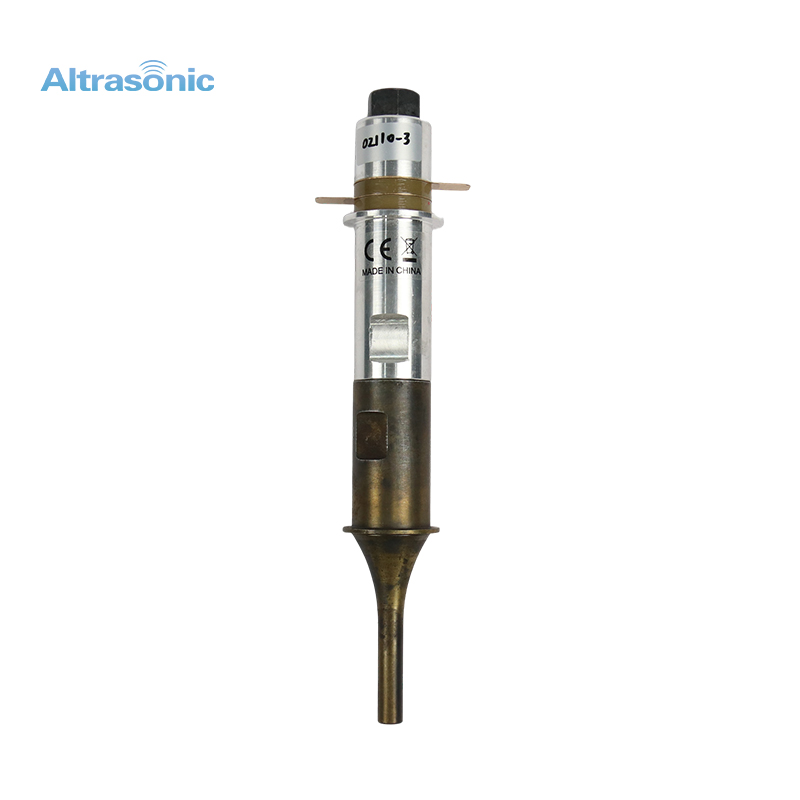

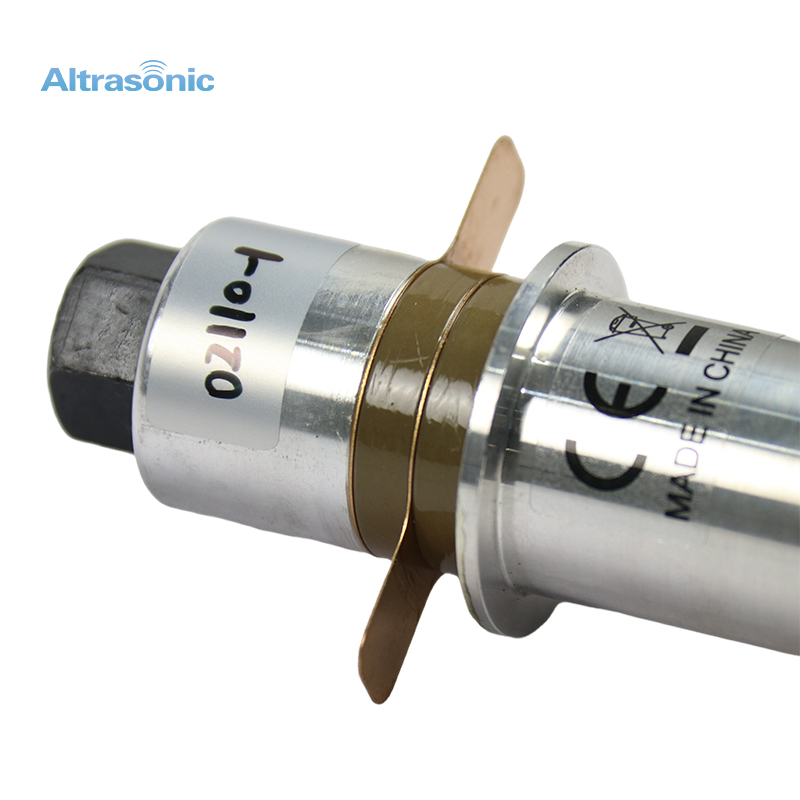

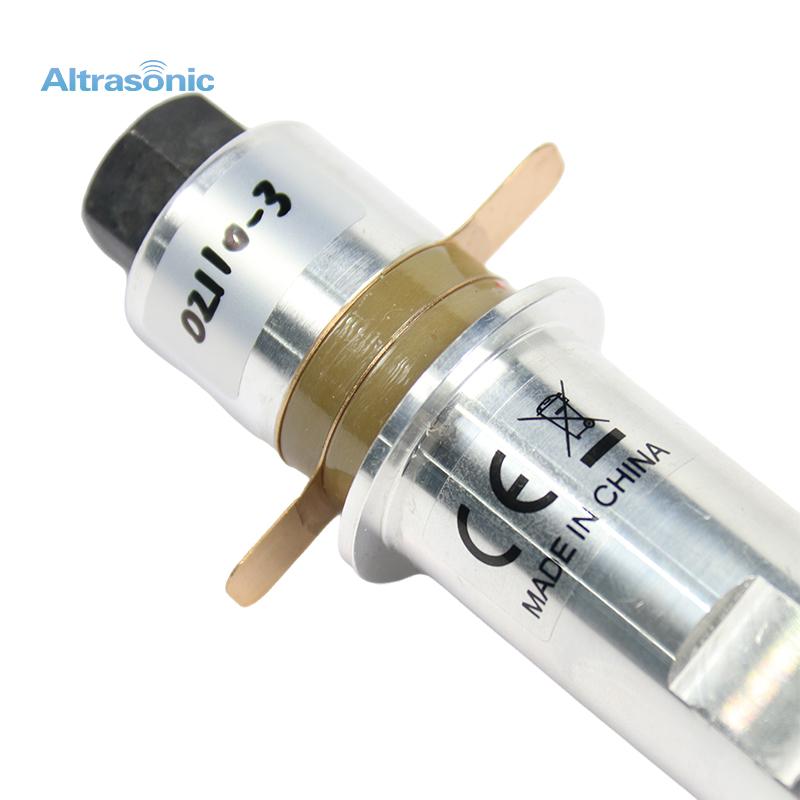

725mm 28kHz High Amplitude And High Quality Ultrasonic Converter
Specification:
HS-2528-2Z
M8*1 or 3/8-24UNF
Item No
Frequency
28 kHz
Power
300 watt
Joint bolt
Diameter of ceramic
25 mm
Quantity of ceramic
2 pcs
Resistance
35 Ω
Amplitude
10 um
Application
Welding
Description:
Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.
Advantages:
1. Factory price with prompt delivery
2. High performance
3. High amplitude
4. Large range of working temperature
5. Low resonance impedance and heat productivity
6. Easy for assembling
Previous :
15 kHz Ultrasonic Welding Transducer With BoosterNext :
15kHz 2600watt Piezoelectric Ceramic Discs Ultrasonic ConverterIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
