Ultrasonic welding eliminates twisting, fluxing, and tinning, so it is usually faster than soldering, resistance welding, and brazing. saving material because it uses no consumable flux or solder.
Item No.:
HS-2030-D、OtherPayment:
T/T、PaypalProduct origin:
ChinaGoods_stock:
200Shipping port:
ShangHai、NingBoLead Time:
30
Description:

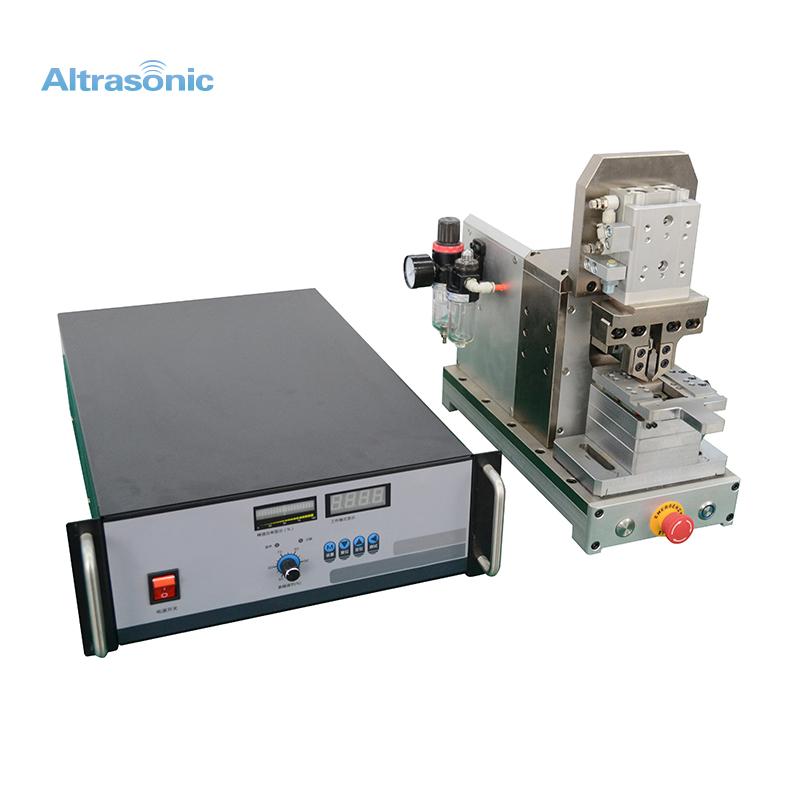

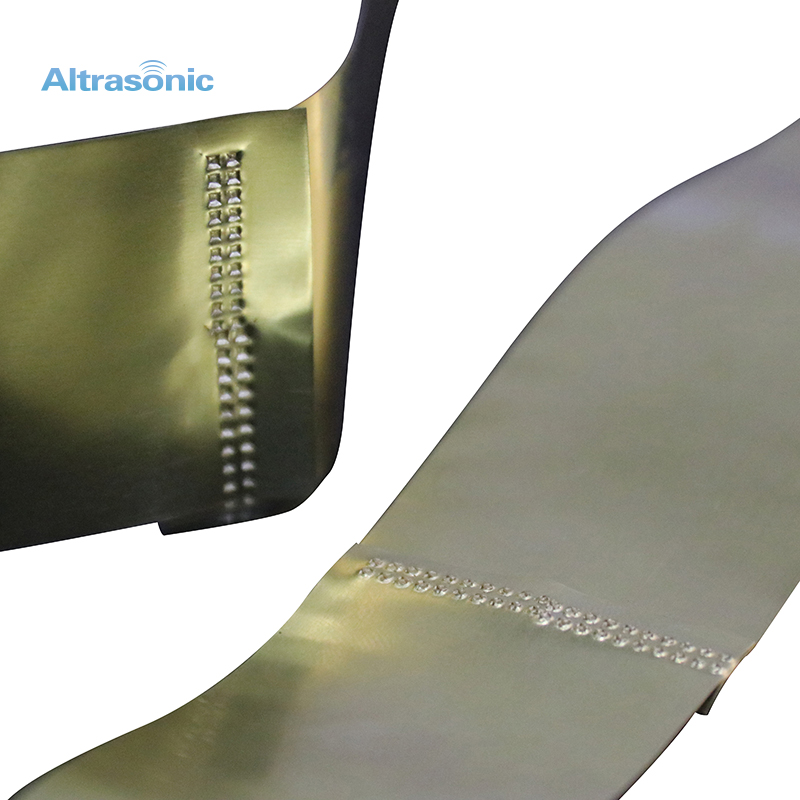

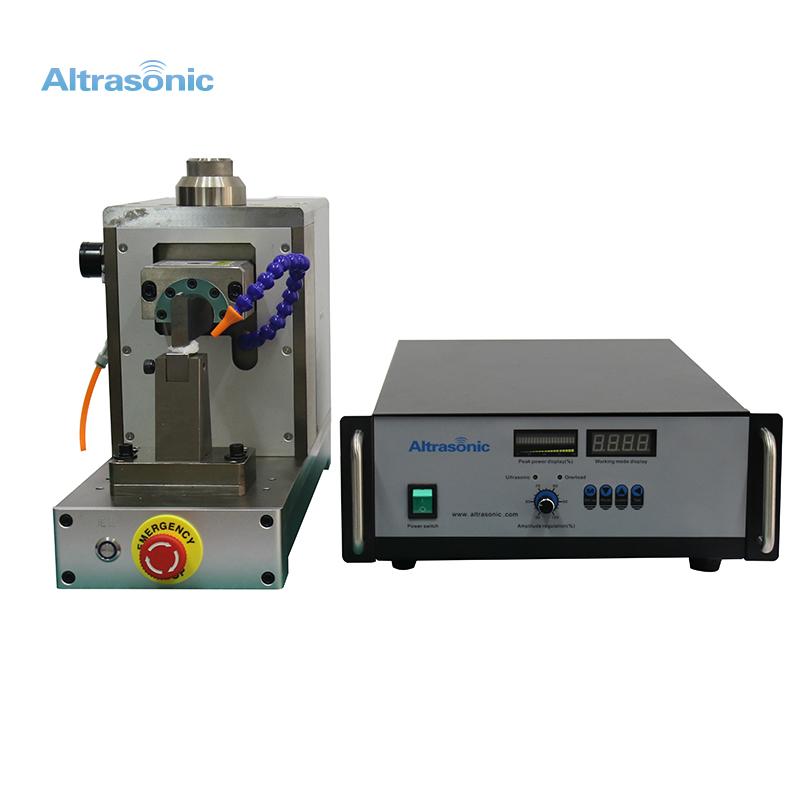

ultrasonic spot welding machine is the high frequency vibration between the work piece surface, until the contact surface heating and welding together. As copper, silver, nickel chromium canwelding to dot or strip, which can be widely applied to the silicon chip fuses, quick fuse melts melting, electrical wire terminals, lithium ion, nickel metal hydride, nickel cadmium battery pole piece such as dot, strip welding.
Technical parameter
|
Model |
HS-2030-D、Other |
|
Power |
500-3000W |
|
Generator |
220V/50HZ |
|
Frequency |
24KHz--40KHz |
|
Control |
CPU control,automatic scanning/tracking |
|
Welding time |
0.05-1S |
|
Welding arrange |
Copper 0.15-2+1.15-2mm |
|
|
Aluminum 0.2-3+0.2-3mm |
|
|
Nickel 0.1-1.2+0.1-1.2mm |
|
Air |
0.6Mpa |
Advantage:
1. Our machine controlled by microcomputer, electronic tuning, frequency automatic tracking, power continuously adjustable.
2. Our machine compared with other manufacturers, stable, welding firm, good consistency and weldment firm, high strength, beautiful appearance, environmental protection, etc.
3. The component parts of the machines adopt imported accessories, Horn was made with special material, the machine structure design.
4. Our machines built-in protection circuit, safe.
5. Used in metal similar welding, which can implement single point or multi-point welding for nonferrous metals;Is widely used in battery and metal products.
