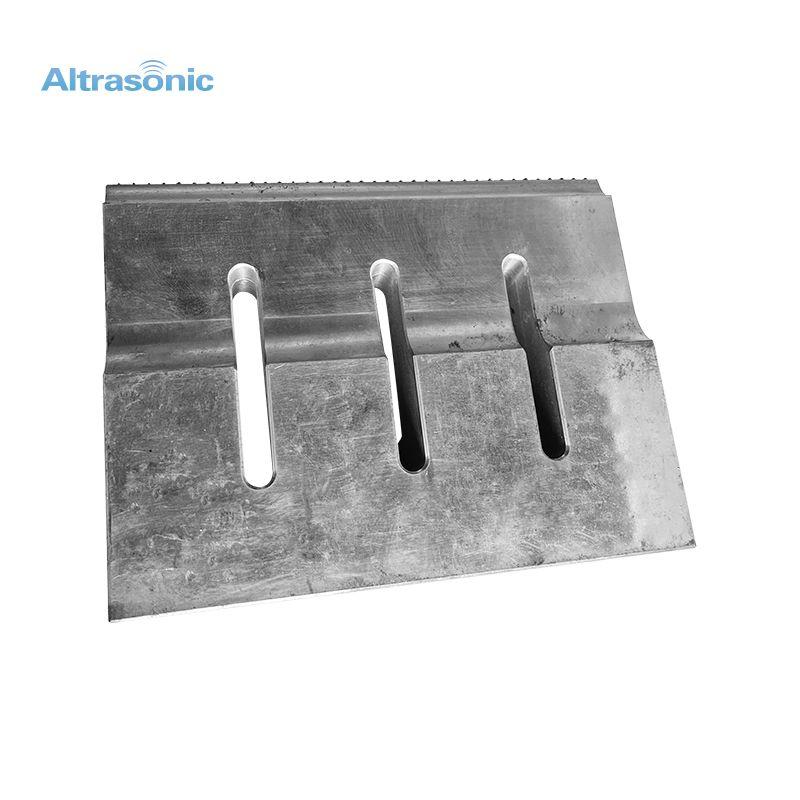

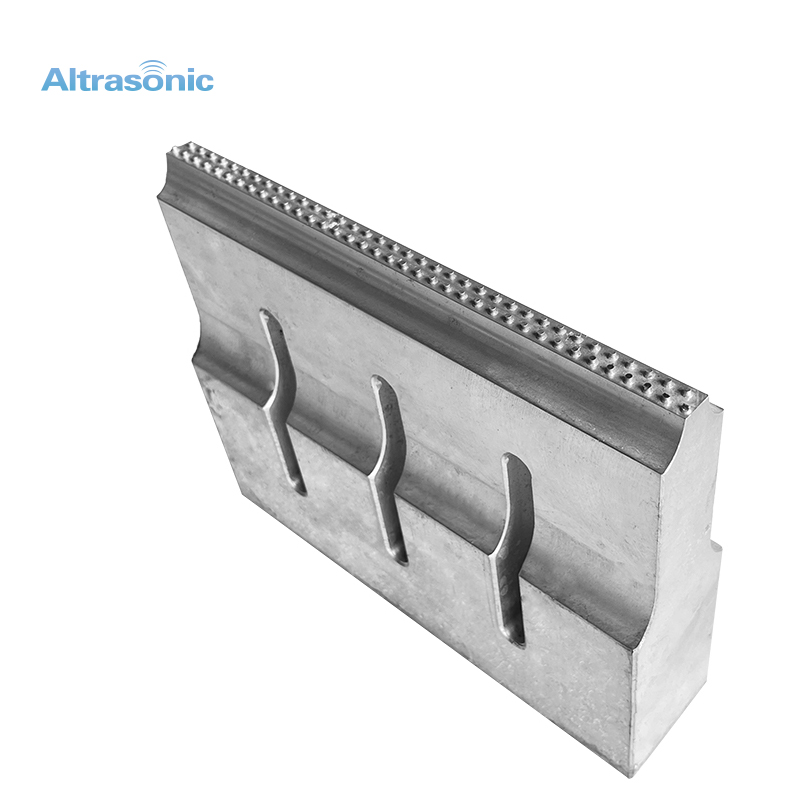

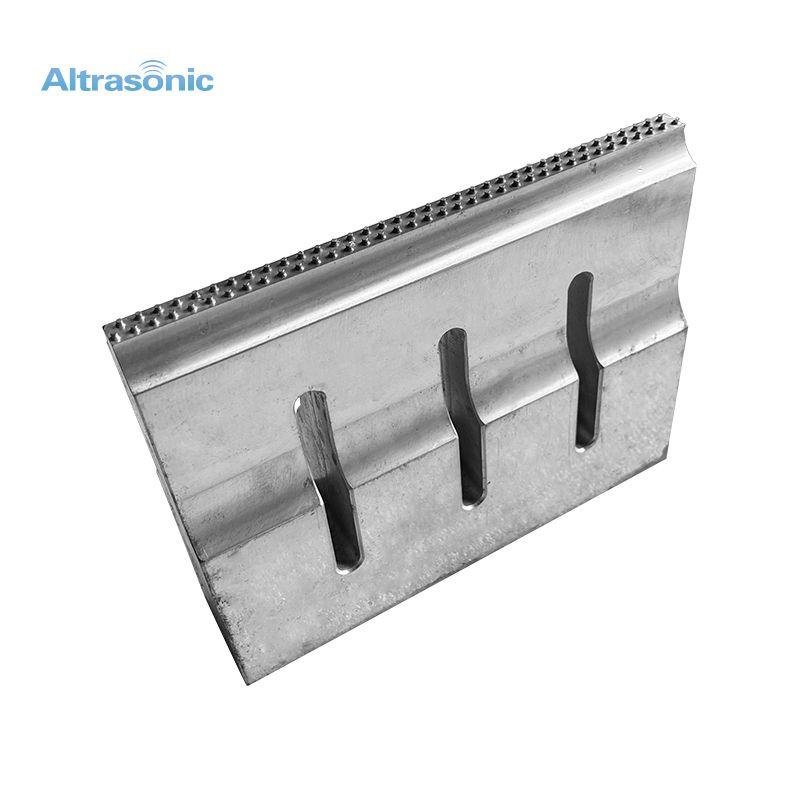

20kHz 210*20 Ultrasonic Welding Horn for Ultrasonic Plastic Welding Machine Manufacture

20kHz 210*20 Ultrasonic Welding Horn for Ultrasonic Plastic Welding Machine Manufacture

the ultrasonic welding horn is an essential component in ultrasonic welding processes.It is important to design the sonotrode carefully to ensure optimal performance and longevity.

Parameter reference

Advantage

1.High supply

2.cost-effective

3.warranty for one year

4.Precise and Reliable

The production process of Ultrasonic Welding Horn can be divided into several steps.

1. Design: The first step in the production process is the design of the Ultrasonic Welding Horn. This involves determining the shape, size, and material of the horn based on the specific requirements of the application.

2. Material selection: Once the design is finalized, the appropriate material for the Ultrasonic Welding Horn is selected. The material needs to have good acoustic properties and high strength to withstand the high-frequency vibrations during welding.

3. Machining: The selected material is then machined to create the desired shape of the Ultrasonic Welding Horn. Machining processes like milling, turning, and drilling are used to remove excess material and create the final shape.

4. Surface treatment: The surface of the Ultrasonic Welding Horn is treated to improve its performance. This can include processes like polishing, grinding, or coating to enhance the acoustic properties and reduce friction.

5. Assembly: Once the individual components of the Ultrasonic Welding Horn are ready, they are assembled together. This can involve attaching the horn to a sonotrode or connecting it to a transducer, depending on the specific design.

6. Testing: After assembly, the Ultrasonic Welding Horn undergoes various tests to ensure its functionality and performance. This can include checking for any defects, measuring its resonance frequency, and verifying the amplitude and uniformity of the vibrations.

7. Quality control: The final step in the production process is quality control, where the Ultrasonic Welding Horn is inspected for any inconsistencies or flaws. This ensures that the horn meets the required standards and specifications before it is shipped to the customer.
