The 15kHz ultrasonic transducer is easy for assembling and has good construct and good heat resistance, it can be used in a wide range of temperature with long life and high reliability.
Item No.:
HS-6015-4ZPayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Silver, black and yellowShipping port:
Shanghai or NingboLead Time:

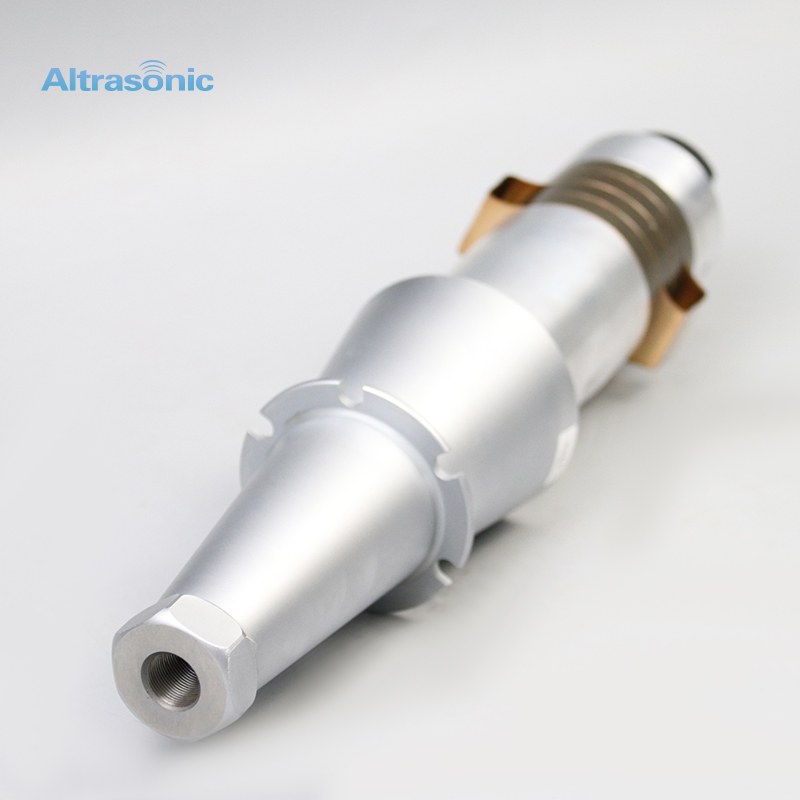

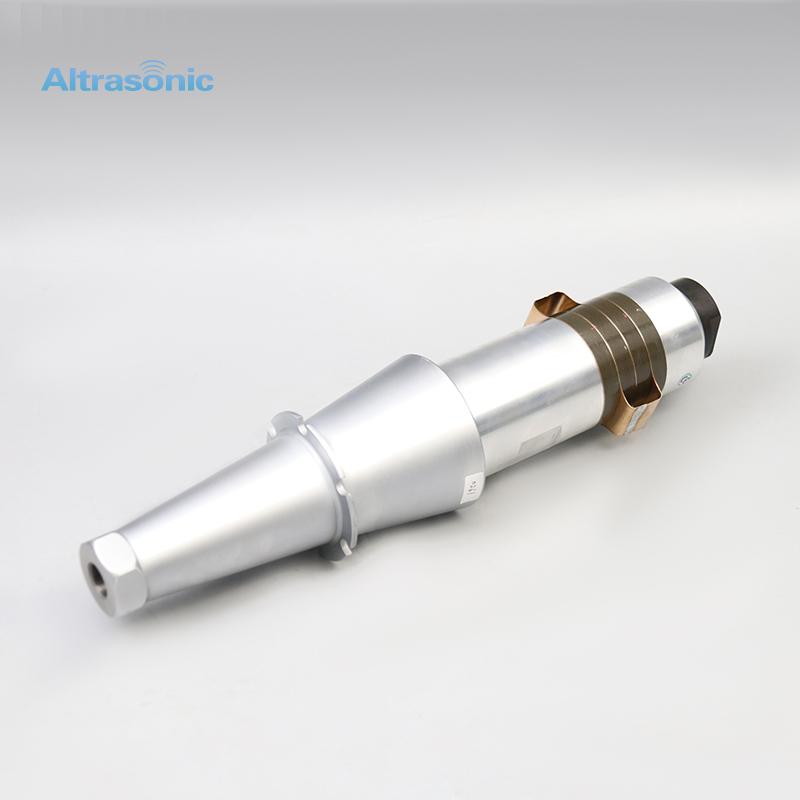

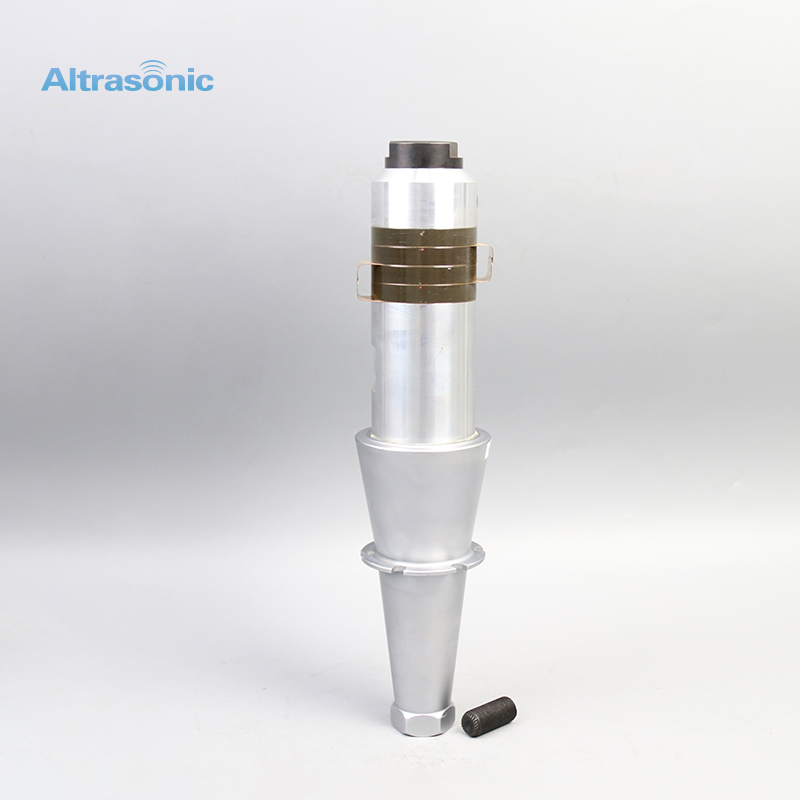

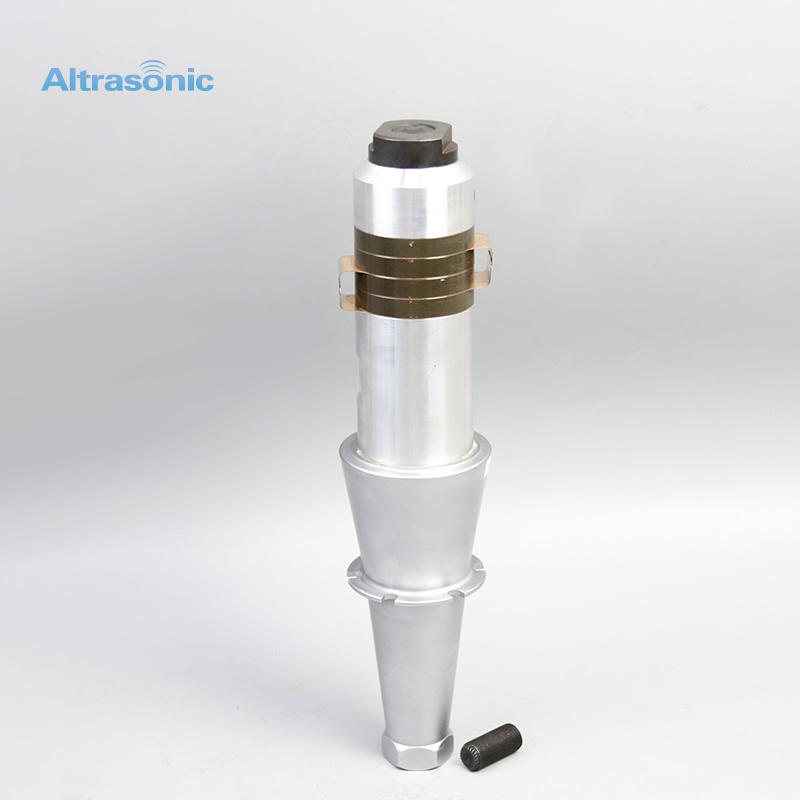

715kHz 2600watt Ultrasonic Converter For One Year Warranty
Specification:
Item No
HS-6015-4Z
Frequency
15 kHz
Power
2600 watt
Joint bolt
M20*1.5 or M16*1
Diameter of ceramic
60 mm
Quantity of ceramic
4 pcs
Resistance
15 Ω
Amplitude
10 um
Application
Welding
Description:

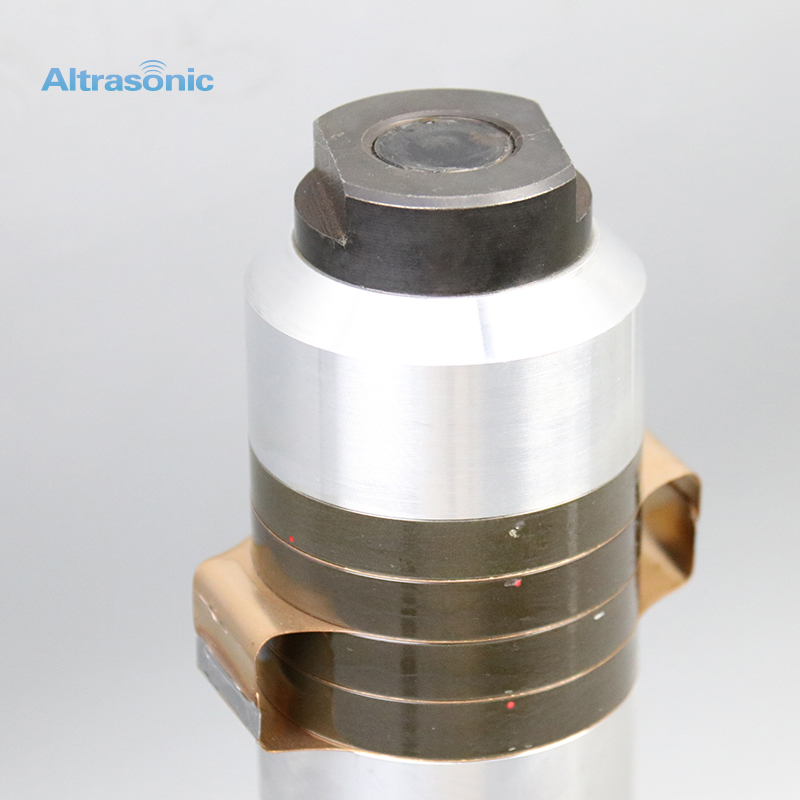

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Advantages:
1. Imported ceramic discs and superior aluminum raw materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
