Ultrasonic solar panel welding system Metal welding Heat absorption plate welding system

Ultrasonic solar panel welding system Metal welding Heat absorption plate welding system

The ultrasonic rotary welding machine is specially designed for solar panel welding.

  • Item No.:

    HS-W20
  • Payment:

    T/T, PayPal, WWestern Union
  • Product origin:

    China
  • Shipping port:

    Shanghai or Ningbo
  • Product Details



Ultrasonic solar panel welding system Metal welding Heat absorption plate welding system


Specification:



 Frequency  20 kHz
 Power  3000 watt
 Gas source  > 0.6 Mpa
 Ultrasonic trigger mode  Time delay mode
 Ultrasonic welding mode   Time mode / Energy mode
 Automatic control method  PLC control
 Equipment weight  1500 KG
 Equipment size  2100*570*1500 mm





Principle:

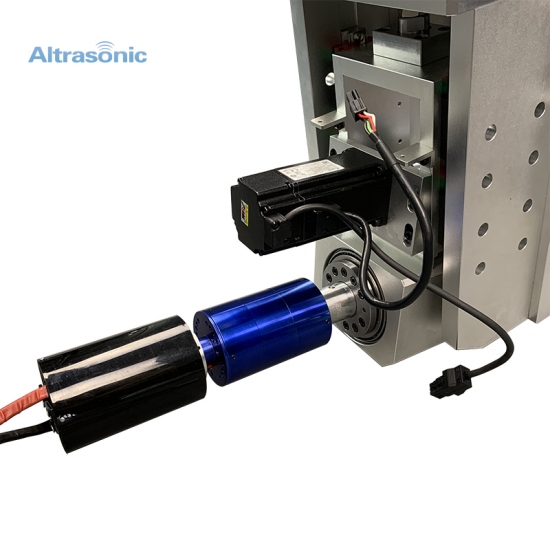

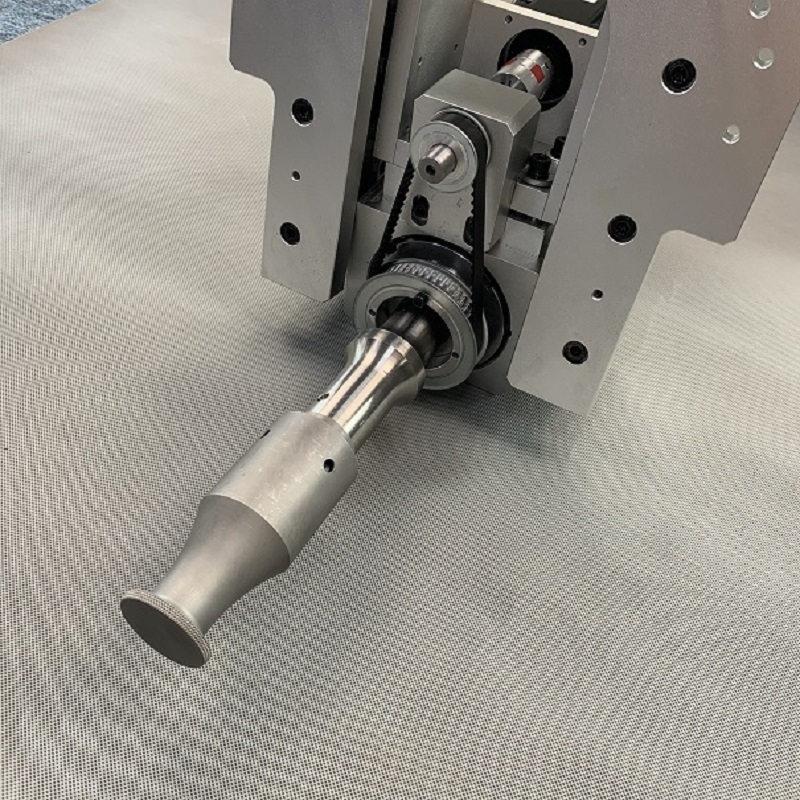

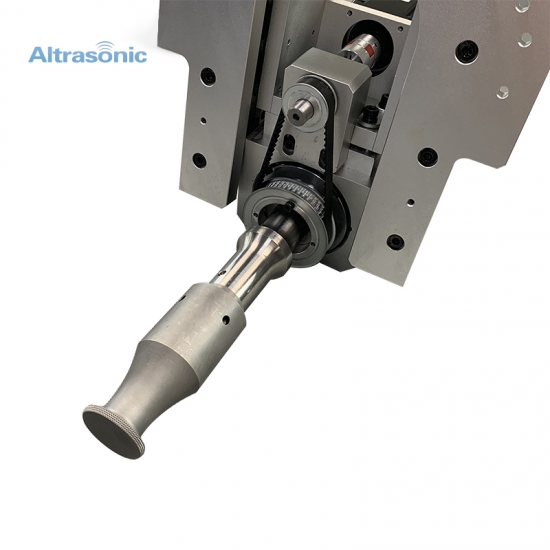

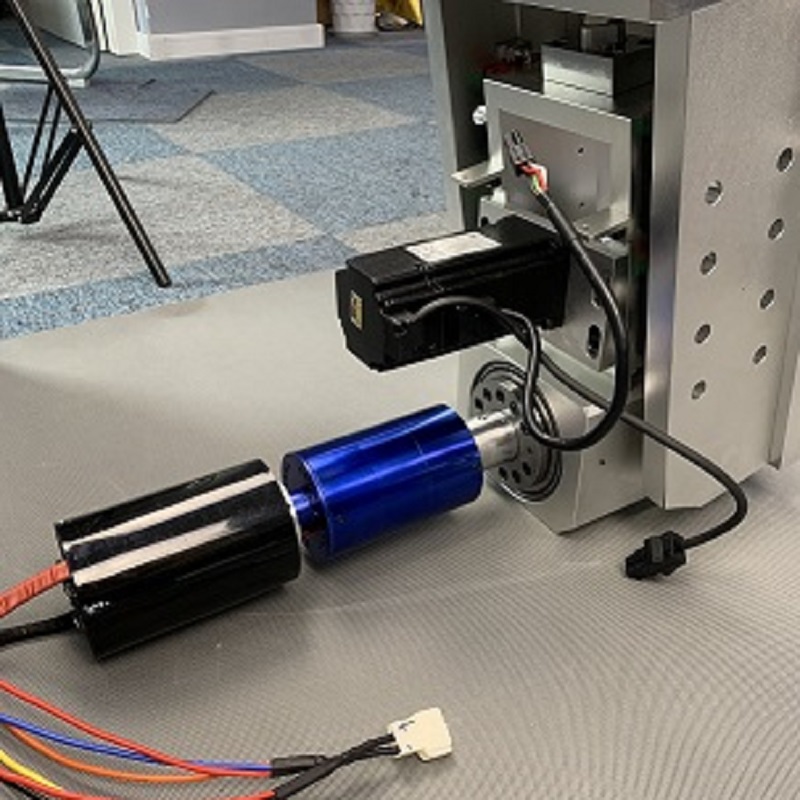

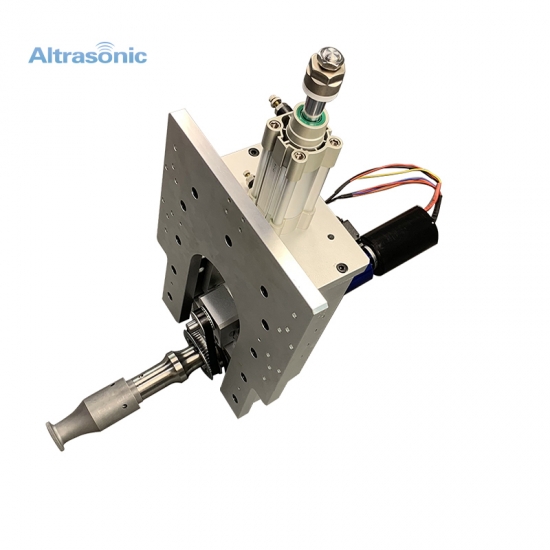

Solar metal seam welding adopts the latest ultrasonic metal welding technology, providing 3000W, 20K ultrasonic power electric box and a continuous welding head. In the production process, the workpiece to be welded is placed in a precision-designed special fixture, which can adapt to copper tubes and copper sheets of different sizes. The welding process is started, and the welding head of the welding machine presses down the workpiece under the action of the air source to generate pressure and ultrasonic energy. The ultrasonic energy is converted into mechanical vibration energy through the transducer, the welding head directly acts on the copper sheet of the copper tube, the mechanical energy induced by the vibration acts on the welded workpiece, and a variety of physical effects form a good mechanical connection.



Application:


Ultrasonic solar metal seam welding machine uses ultrasonic metal seam welding technology to weld metal sheets, metal foils and metal tubes. It is used in solar collectors, solar panels, solar panels, amorphous silicon solar panels, and copper panels. Welding with copper tube, copper sheet and copper tube, copper foil and copper tube welding, aluminum plate and copper tube welding, aluminum-plastic composite tube, heating tube of electric heating appliance, copper-aluminum welding, aluminum corrugated board processing, solar flat fin, electric heating Appliances, solar water heaters, copper and aluminum splicing, etc.



Advantage:


1. Ultrasonic solar metal seam welding machine DC motor stepless speed regulation, welding direction can be easily set through the panel.

2. The welding changes of the ultrasonic solar metal seam welding machine can be precisely monitored and controlled, and the welding consistency.

3. The modular design of the ultrasonic solar metal seam welding machine is easy to install, easy to maintain, and the welding height adjustment mechanism is easy to operate, and the accuracy can reach 0.02MM.
