Ultrasonic Milling

Ultrasonic milling and drilling auxiliary processing equipment

Ultrasonic milling and drilling auxiliary processing equipment

The excellent ultrasonic control technology can ensure the stability of long-term machining. Frequency scanning and power setting can be completed automatically by controller to improve productivity.


In the ultrasonic milling process, the tool rotates while vibrating with the ultrasonic high frequency. At the same time, under the control of the CNC system, each layer does the feed movement in the X and Y directions.

  • Item No.:

    HS-M20
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Green Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    40
  • Product Details

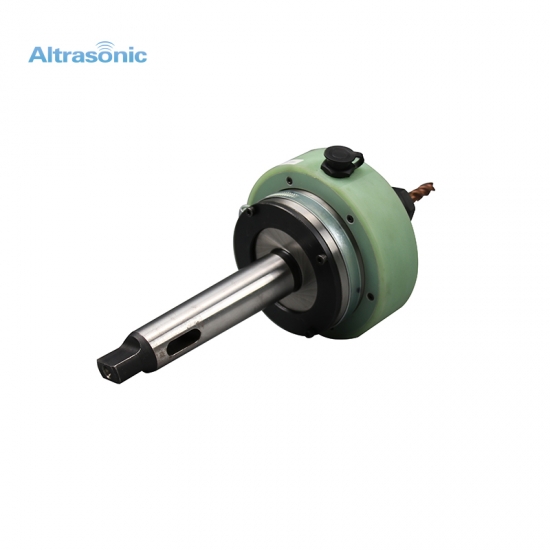

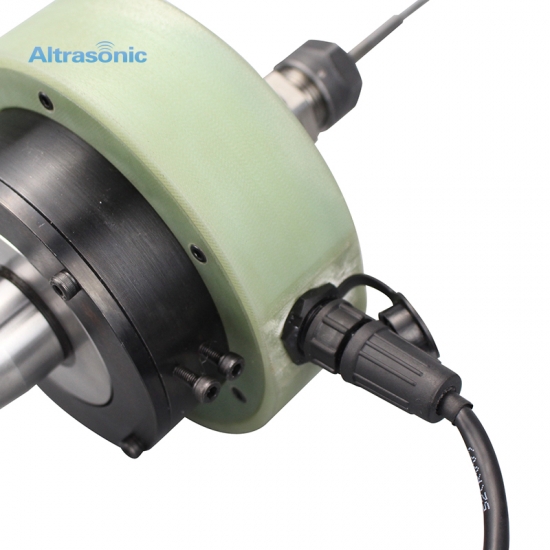

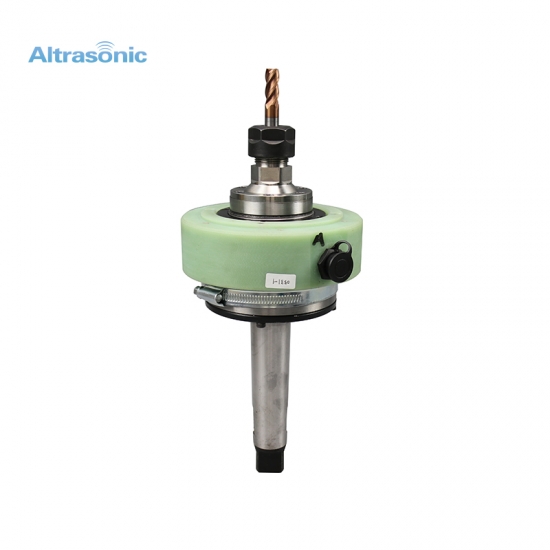

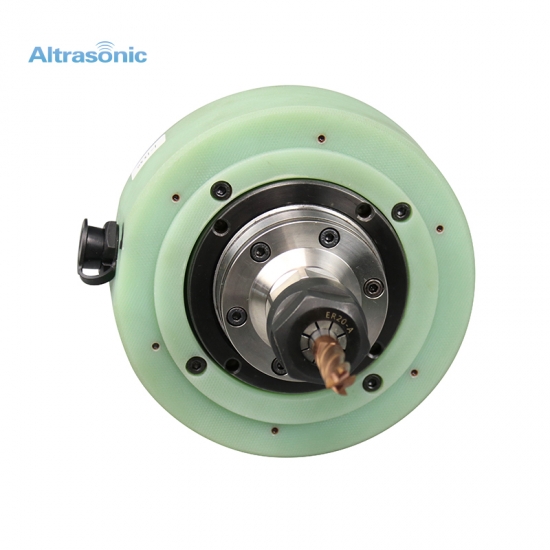

Ultrasonic milling and drilling auxiliary processing equipment



Specification:


Item No.: HS-M20

Frequency: 20kHz

Power: 500Watt

Speed: 20,000RPM

Amplitude: 10um or more

Diameter of Horn: Milling: Φ1-Ф13mm

                             Drilling:Ф2-Ф6mm

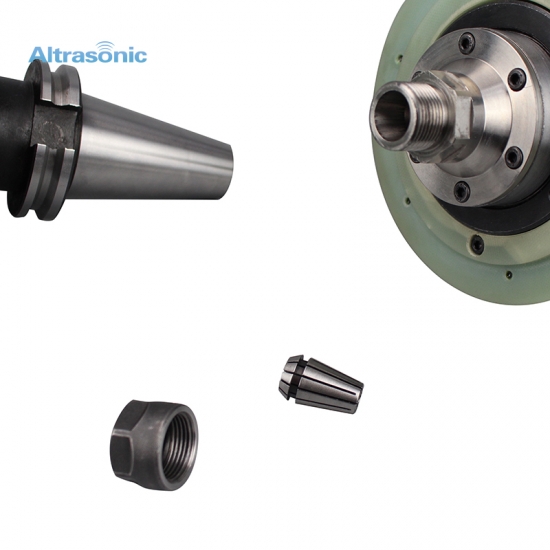

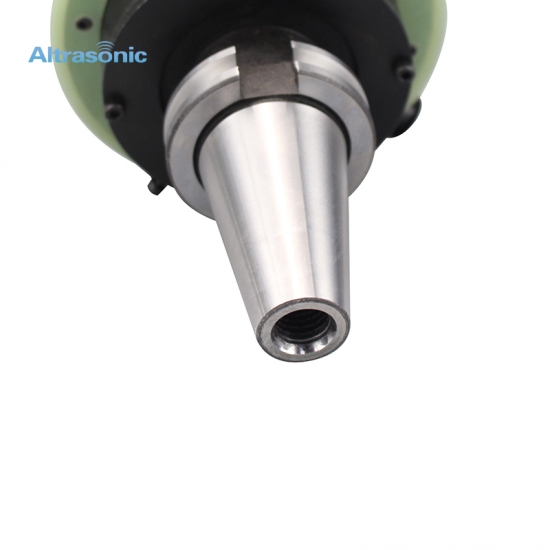

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT

(Special spindles are made per request.)



Principle:


Ultrasonic drilling is an unconventional loose abrasive processing process. Ultrasound is a sound wave with a frequency higher than 20,000 Hz.

Ultrasonic can be generated using mechanical, electromagnetic and thermal energy sources. They can be produced from gases (including air), liquids and solids.

During ultrasonic drilling, the material is removed by micro-grinding or abrasive particle erosion.

The tool oscillates at a frequency of approximately 20 kHz by a piezoelectric sensor and an electric oscillator. The tool forces the abrasive grit to normally impact the work surface in the gap between the tool and the workpiece to machine the work surface.

The smaller the grit size, the smaller the momentum received from the tool. As the tool continues to move downward, the force acting on the larger coarse particles increases rapidly, so some coarse particles may break. Eventually, at the end of its stroke, the sand with a size greater than the minimum gap will penetrate the tool and the work surface to varying degrees.



Application:


Medical industry: Artificial crown machining

Automotive industry: Valve deburring

Die & mold industry: Surface finishing

Aerospace industry: Surface finishing

Precise ceramic industry: Roughing and finishing

Glass industry: Drilling, polishing, chamfering



Advantages:


1.Technology integration via R8 actuator system;

2.ULTRASONIC superimpositioning of the tool rotation with amplitudes up to > 10 µm;

3.Automatic frequency detection -adation, amplitude regulation and automatic feed adjustment;

4.Up to 50% reduced process forces due to ULTRASONIC allow: higher feeds, better surface finishes up to Ra < 0.2 µm, longer tool life.



Ultrasonic machining effect:



微信图片_20190828134636No Ultrasonic

With Ultrasonic

1(1)2(1)3(1)
