Ultrasonic lab homogenizer for plant extraction

2019-07-11 11:18:47

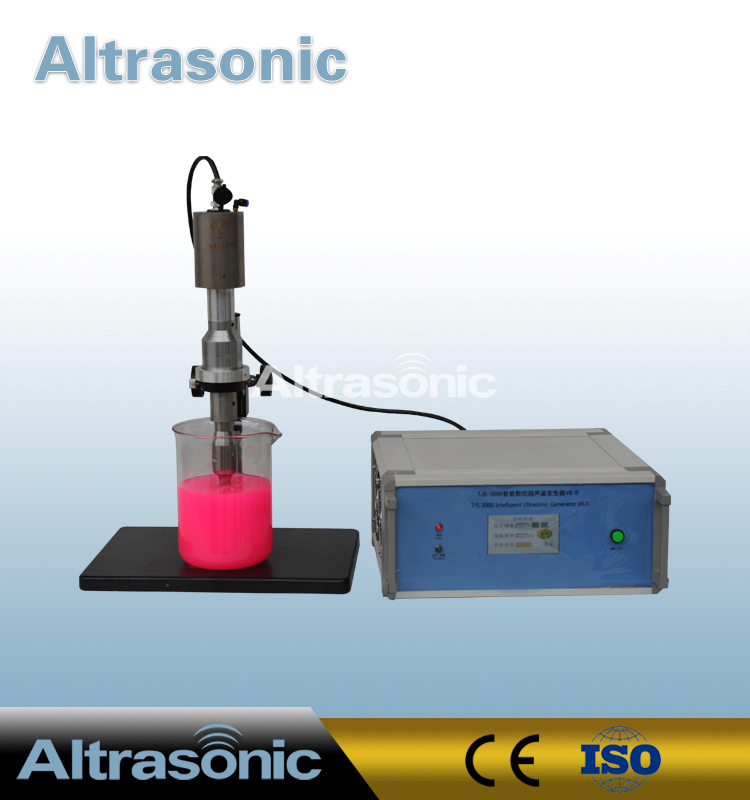

Ultrasonic lab homogenizer for plant extraction


Description:



Ultrasonic extraction uses ultrasonic extraction machine to increase the molecular motion frequency of substances by using the strong cavitation effect, mechanical vibration, disturbance effect, high acceleration, emulsification, diffusion, crushing and stirring effects generated by ultrasonic radiation pressure. And speed, increasing the solvent penetration, thereby accelerating the target component into the solvent and facilitating the extraction of the mature extraction technique.



Ultrasonic extraction technology is applicable to a wide range of extracting agents. Water, methanol, ethanol and the like are commonly used extracting agents, which have the advantages of simple operation and high extraction efficiency.



Specifications:


Model

HSS20-500

HSS20-1000-L

HSS20-1000

HSS20-1500

HSS20-2000

HSS20-3000

Frequency

20Khz

20Khz

20Khz

20Khz

20Khz

20Khz

Power

500 W

1000 W

1000 W

1500W

2000W

3000 W

Voltage

220V

220V

220V

220V

220V

220V

Temperature

150 ℃

150 ℃

150 ℃

300℃

300℃

300 ℃

Pressure

Normal

Normal

Normal

35 MPa

35 MPa

35 MPa

Intensity of sound

10 W/cm²

10 W/cm²

10 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max capacity

500ml/Min

2 L/Min

5L/Min

15L/Min

20L/Min

100 L/Min

Material of probe

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy



Applications:

1. Food processing

2. Reaction Acceleration – cavitation accelerates chemical and physical reactions.

3. Fine Particle

4. Dispersion – e.g. nanoparticle processing

5. Disruption and Cell Lysing – will break open biological tissues and

6. Cells to extract enzymes and DNA, prepare vaccines.

7. This technology provides a method for

8.Ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently

9. through a cylindrical reactor.

10. Homogenization – making uniform mixtures of liquids or liquid suspensions.

11. Emuls
