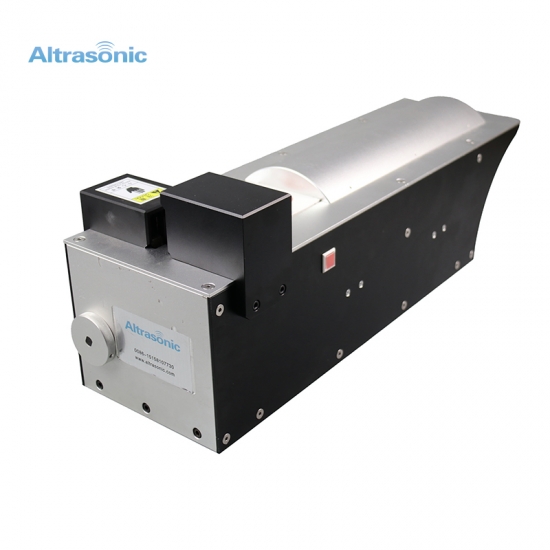

Ultrasonic Wire Harness Welding Machine Car Wire Harness Parallel Connection

Ultrasonic Wire Harness Welding Machine Car Wire Harness Parallel Connection

Ultrasonic wire harness welding machines are widely used in automobiles, electronic appliances, motors, communication equipment, mechanical equipment, instrumentation and other fields.

  • Item No.:

    HS-2050A
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details

Ultrasonic Wire Harness Welding Machine Car Wire Harness Parallel Connection



Specifications:


 Item No  HS-2050A
 Frequency  20 kHz
 Power  5000 watt
 Welding area  0-35 mm²
 Working air pressure  0.05-0.9 MPa
 Weight  55 KG
 Generator size  500*400*160 mm
 Machine size  600*200*260 mm


Feature:


There is no need for flux and external heating, no deformation due to heating, no residual stress, and low requirements for pre-welding treatment on the surface of the weldment. Not only the same kind of metal, but also dissimilar metals can also be welded. It is possible to weld thin sheets or filaments to thick plates. Ultrasonic welding of good conductors has much less energy than current welding, and is often used for welding transistors or integrated circuit leads.



Application:


The ultrasonic wire harness welding machine can weld the wire harness forming of 0.5mm²-50mm². It is mainly used in automobile wiring harness connecting wire lap welding, electric wire head forming, wire mutual welding, multiple wires butt joint and mutual welding into wire knots.

Ultrasonic wire harness welding machine trial material copper and aluminum wire harness, metal braided wire, metal stranded wire, wire harness terminal, enameled wire, motor lead wire and wire harness and other copper wire, aluminum wire welding.




Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.




Payment:
