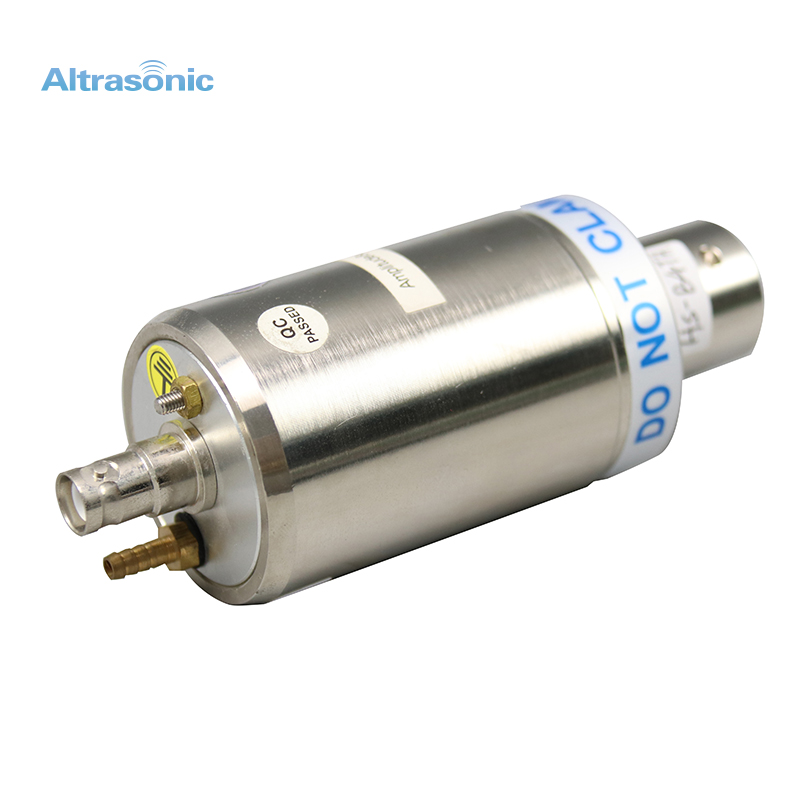

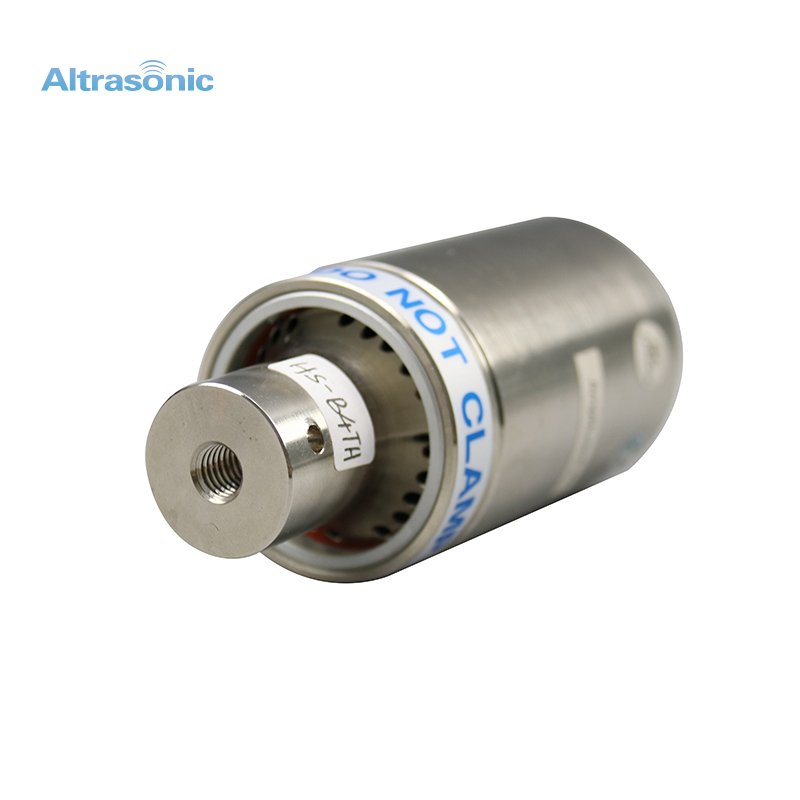

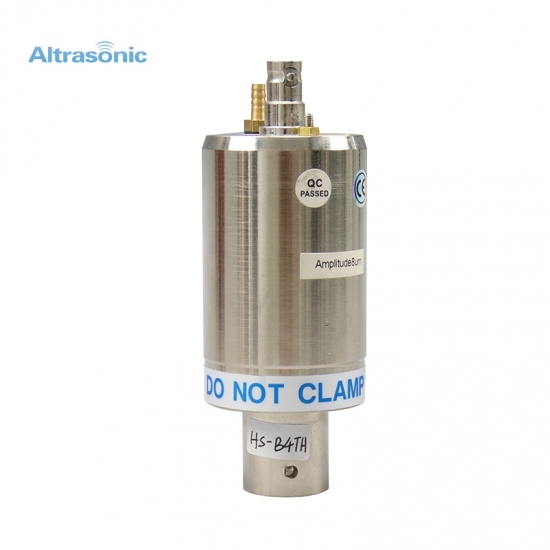

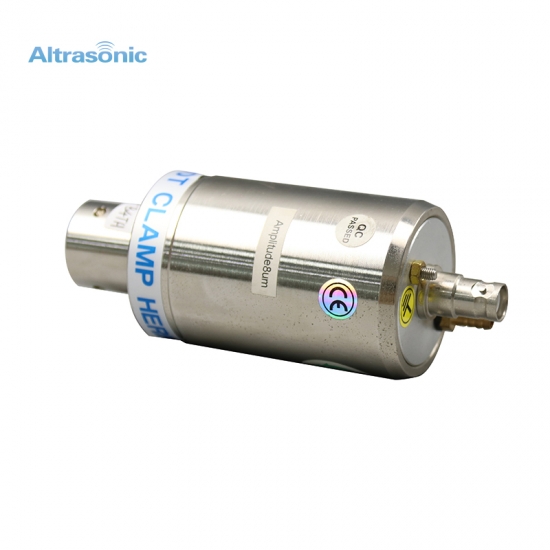

Replacement of Ultrasonic Welding Transducer Branson 4TH 3000watt

Replacement of Ultrasonic Welding Transducer Branson 4TH 3000watt

The transducer is the core component of the ultrasonic plastic welding equipment. We can provide professional manufacturers with Branson-type transducers replacement, which are perfectly matched to the existing machines.

  • Item No.:

    HS-B4TH
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Sliver
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details


Replacement of Ultrasonic Welding Transducer Branson 4TH 3000watt




Specification:


 Item No  HS-B4TH
 Frequency  40 kHz
 Power  800 watt
 Connect screw  M8*1.5
 Diameter of ceramic  25 mm
 Quantity of ceramic  4 pcs
 Capacitance  4.2 nF



Description:


The CONVERTER is the motor of the ultrasonic welding system. This component produces a motion via a piezoelectric effect, which is to say that the converter expands and contracts when electrically excited by the power supply.


At 20 kHz, this expansion and contraction is approximately .0008 of an inch or 20 microns at the face of the converter and the movement is in an axial motion. The converter is matched to the output frequency of the power supply. There are different converters for 15, 20, 30 & 40 kHz ultrasonic welders.
