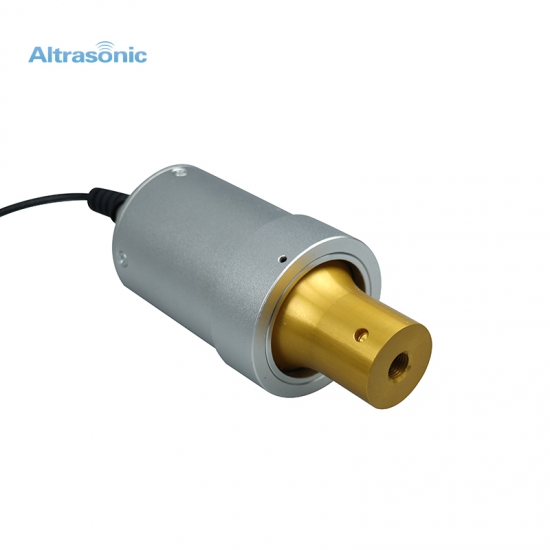

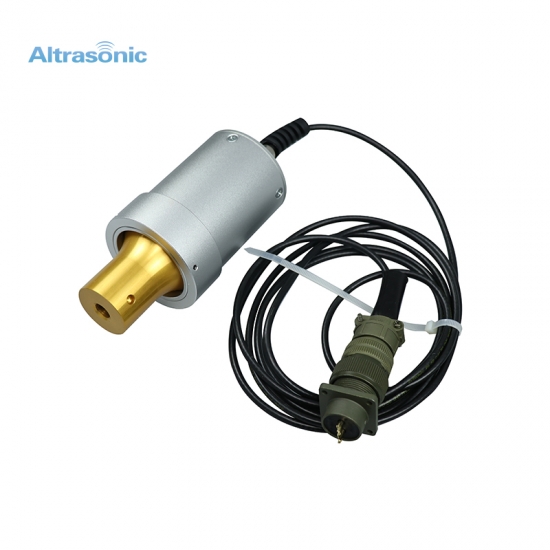

Replacement of Dukane 41S30 20kHz Ultrasonic Welding Transducer

Replacement of Dukane 41S30 20kHz Ultrasonic Welding Transducer

With high quality and well match with Dukane Type ultrasonic welder.

  • Item No.:

    HS-D41S30
  • Payment:

    T/T, PayPal, Western Union
  • Price:

    $799/899
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Replacement of Dukane 41S30 20kHz Ultrasonic Welding Transducer




Specification:


 Item No  HS-D41S30
 Frequency  20 kHz
 Power  2000 watt
 Joint bolt  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Capacitance  11~17 nF
 Amplitude  20 um
 Application  Plastic welding machine



Applied range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric

clothing, packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.




Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
