High quality long service life Ultrasonic Aluminum-plastic Pipe Welding Machine

High quality long service life Ultrasonic Aluminum-plastic Pipe Welding Machine

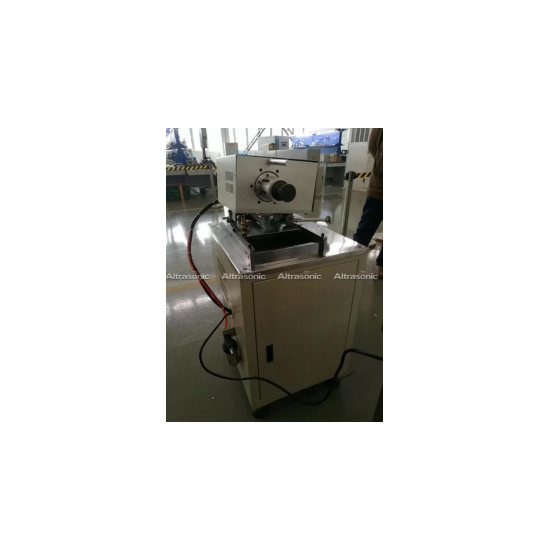

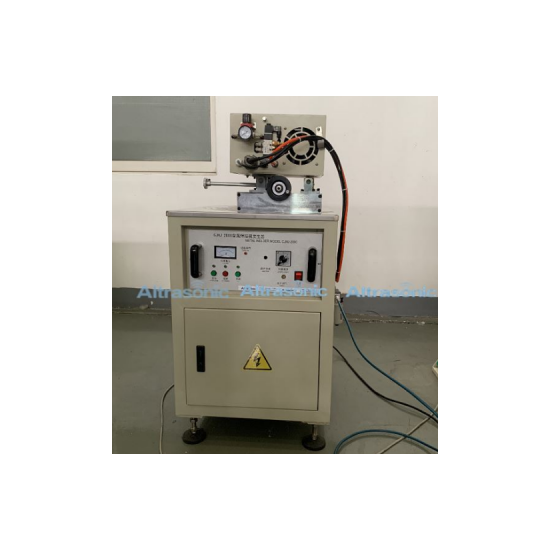

Ultrasonic aluminum-plastic pipe welding machine is composed of three parts: ultrasonic generator, transducer and mechanical system

  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    40
  • Product Details


Simple structure easy installation Ultrasonic Aluminum-plastic Pipe Welding Machine


Specification:


1. Frequency: 20±1kHz

2. Maximum output power: 2000Watt

3. Welding speed: 4-10m/min (according to the thickness of the material)

4. Aluminum welding thickness: 0.2-0.5mm (according to the material)

5. Welding tool head diameter: 51mm in diameter

6. Operation mode: automatic, manual test

7. Working pressure: 0.2-0.6Mpa

8. Power supply: AC220V±5%, 50Hz±1%

9. Dimensions: Generator: 450×600×160mm3 Support: 400×330×220 mm3

10. Working environment temperature: 0-50℃ 11. Motor: three-phase AC 220V conversion motor (51KGV20)


Application:


1. Ultrasonic aluminum-plastic pipe welding can be used for aluminum-plastic composite pipe production line;

2. Solar water heater (welding the heat exchange tube to the board);

3. Electric heating device (aluminum and Cooper heating tube welding);

4. Corrugated aluminum sheet processing;

5. Solar collector plate (welding copper tube and aluminum foil; copper tube and copper foil; welding multiple copper tubes throughout the board).



Ultrasonic machining effect:



1(1)2(1)3(1)
