40 kHz Ultrasonic Transducer

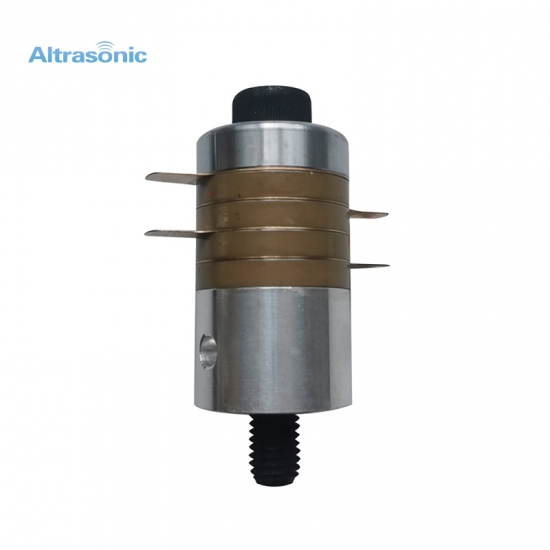

High-quality Ultrasonic Parts 40kHz Ultrasound Converter Transducer for Ultrasonic Welding or Cutting Machine

High-quality Ultrasonic Parts 40kHz Ultrasound Converter Transducer for Ultrasonic Welding or Cutting Machine

The high mechanical quality of Altrasonic's piezo transducers ensures that these sandwich-type ultrasonic transducers offer high electro-acoustical efficiency and low heat generation.

  • Item No.:

    HS-3040-4Z
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


High-quality Ultrasonic Parts 40kHz Ultrasound Converter Transducer for Ultrasonic Welding or Cutting Machine



Specification:


 Item No.  HS-3040-4Z
 Frequency  40kHz
 Power:  1000Watt
 Diameter of Ceramic  30mm
 Qty of Ceramic  4pcs



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations. And we can customised the welding horn according to different application.



Competitive Advantage:


1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of          piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to            testing will identify nonconforming material

3. One by one testing to ensure that each transducer performance are excellent

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability


Workshop:



CE:



Shipping:




Payment:
