60 kHz Ultrasonic Transducer

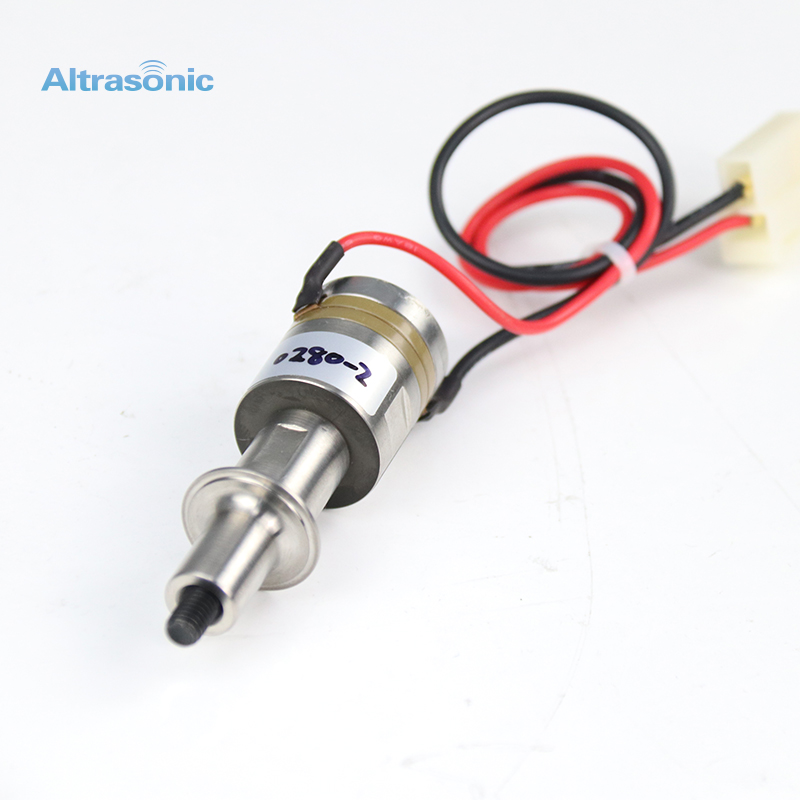

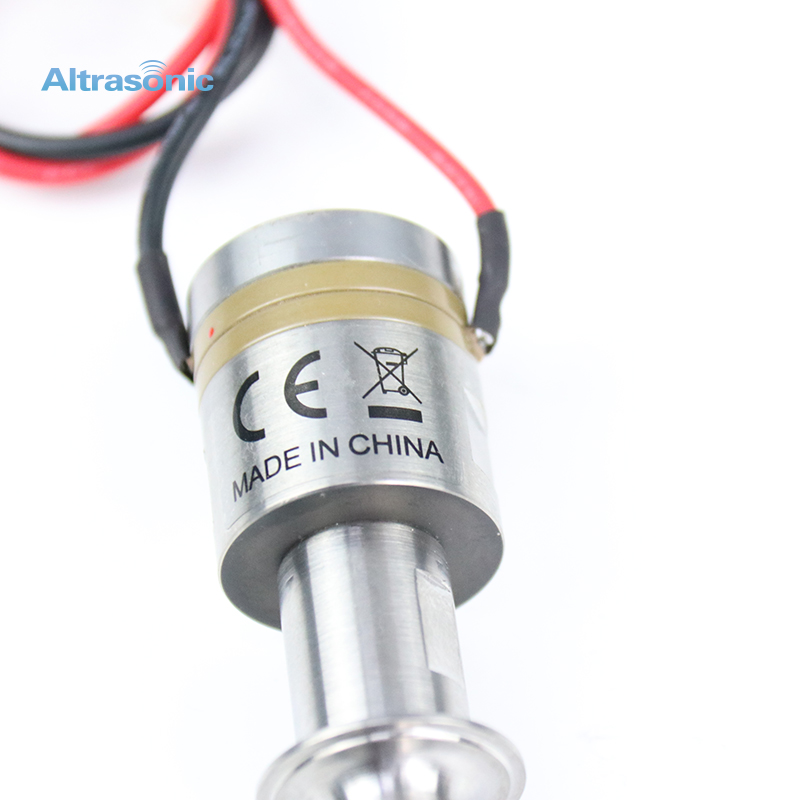

Competitive Price 60khz Ultrasonic Welding Transducer with Booster

Competitive Price 60khz Ultrasonic Welding Transducer with Booster

The 60khz transducer is a high frequency transducer, suitable for small plastic welding equipment, such as buried wire.

  • Item No.:

    HS-1560-2Z
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Black
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Competitive Price 60khz Ultrasonic Welding Transducer with Booster




Specification:


 Item No  HS-1560-2Z
 Frequency  60 kHz
 Power  100 watt
 Joint bolt  M6*0.75
 Ceramic dics diameter  15 mm
 Ceramic dics quantity  2 pcs
 Capacitance  0.7~0.8 nF
 Amplitude  4 um
 Application  Smart card coil wire embedding



Description:



An ultrasonic transducer is a device used to convert some other type of energy into an ultrasonic vibration. There are several basic types, classified by the energy source and by the medium into which the waves are being generated.



Advantages:



1. High efficiency: high mechanical quality factor, working at the resonance frequency point can obtain extremely high electro-acoustic conversion efficiency.

2. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

3. High power: under the action of the pre-stressed screw, the energy of piezoelectric ceramics can be exerted to the greatest extent.

4. One by one testing to ensure that each transducer performance are excellent.





Workshop:



CE:



Shipping:




Payment:

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
