Home Ultrasonic Welder Repair Dukane

Dukane Type Converter

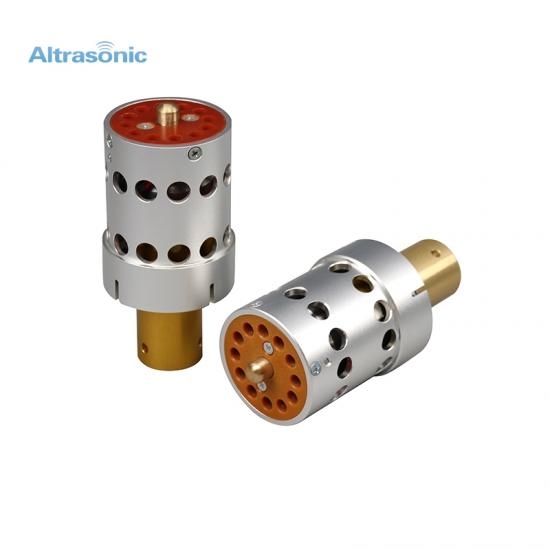

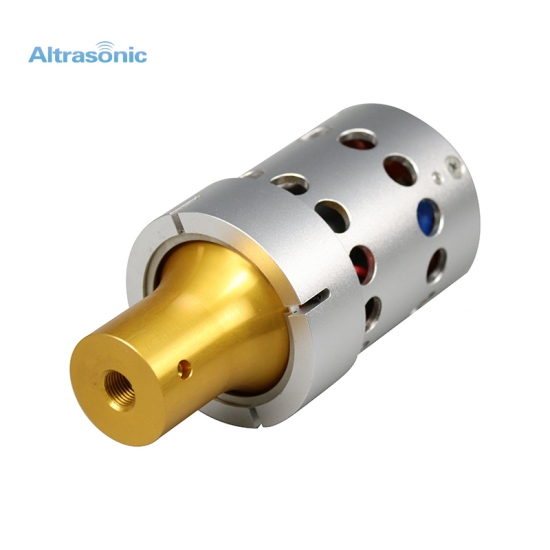

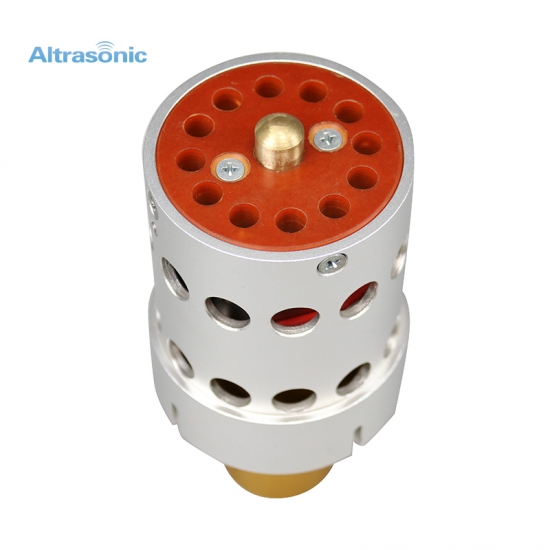

China Supplier 20kHz Dukane Type Transducer Replacement of 110-3122

China Supplier 20kHz Dukane Type Transducer Replacement of 110-3122

With high quality and well match with Dukane Type ultrasonic welder.

  • Item No.:

    HS-D110-3122
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


China Supplier 20kHz Dukane Type Transducer Replacement of 110-3122




Specification:


 Item No  HS-D110-3122
 Frequency  20 kHz
 Power  2000 watt
 Joint bolt  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Resistance  10 Ω
 Amplitude  12 um
 Application  Plastic welding machine



Description:


The Replacement Converter for Dukane 20khz machine Direct replacement for the Dukane 20khz machine that delivers lower cost, rugged quality and superior value.

What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.


Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
