20 kHz Ultrasonic Transducer

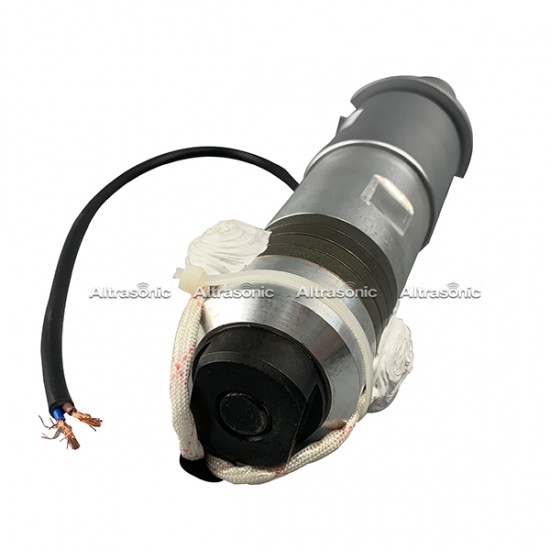

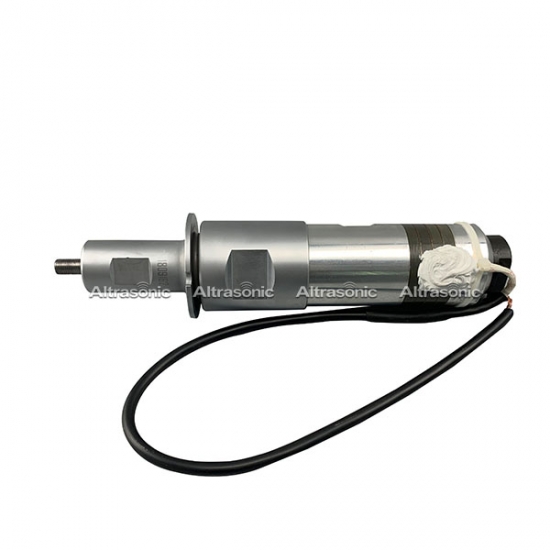

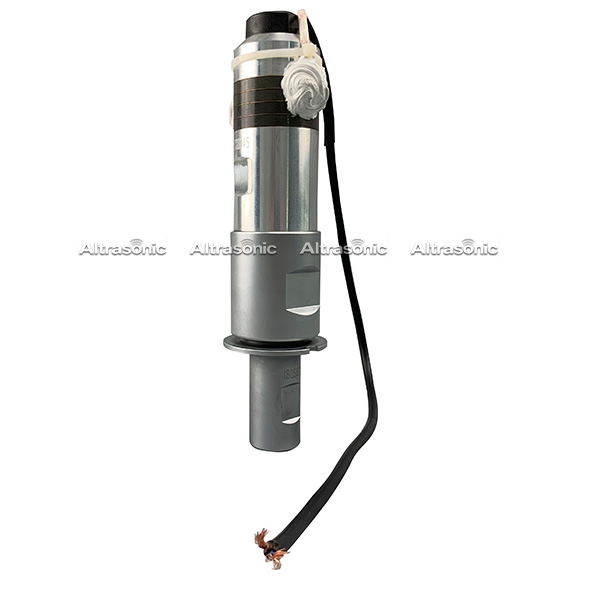

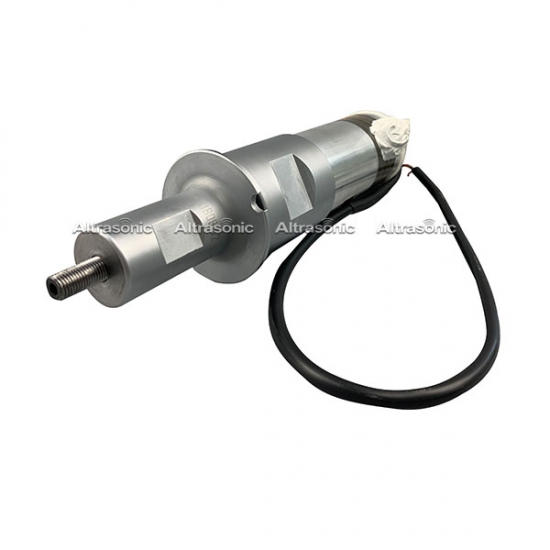

5020-4Z Ultrasonic Transducer For Auto-plastic Welding Machine

5020-4Z Ultrasonic Transducer For Auto-plastic Welding Machine

Ultrasonic welding is fast, requires no consumables, and can be applied to a wide variety of applications. Additionally, equipment cost is relatively low. Ultrasonic welding can create strong, hermetic welds that are visually appealing. However, some design considerations must be taken into account to ensure optimum results.

  • Item No.:

    HS-5020-4Z
  • Product origin:

    China
  • Product Details


5020-4Z Ultrasonic Transducer For Auto-plastic Welding Machine




Minimum Order Quantity:

10 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

5000 Sets/Month




Quick Detail:



Stabilized power and high reliability widely application








Description:

Ultrasonic welding is fast, requires no consumables, and can be applied to a wide variety of applications. Additionally, equipment cost is relatively low. Ultrasonic welding can create strong, hermetic welds that are visually appealing. However, some design considerations must be taken into account to ensure optimum results.

Surface damage and fracturing of features can occasionally result from application of ultrasonic energy to an assembly. Additionally, some design choices may preclude strong and consistent welds from being formed. Here are some common ultrasonic difficulties and how to prevent them.




Feature:


1.High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.

2.Big amplitude: designed and chosen by computer, high oscillation speed and big amplitude in front operculum.

3.Big Power: under the function of the prestressed force screw rod, the piezoelectricity ceramics can work freely in the highest level of power.

4.In good heat resistance: of small resonance impedance, less heat produced, can be used in a wide range of temperature with long life and high reliability.

Specifications:


 The columnar type NTK TYPE (stabilized power and high reliablity widely application)

Item No.

Connect screw (Size)

Ceramic

diameter (mm)

Quantity of

Ceramic (pc)

Resonance

frequency (khz)



Resistance (Ω)

Capacitance

Input power (W)

Max.

 Amplitude (um)













Yellow

Grey

Black





7015-4Z

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

10

6015-4Z

M20 X 1.5 or M16 X 1

60

4

15

15

8000-10000

10000-12000

12500-13500

2200

10

6015-6Z

M20 X 1.5

60

6

15

15

14000-16000

/

19500-21000

2600

10

5015-4Z

M18 X 1.5

50

4

15

15

12000-13000

13000-14300

15000-17000

1500

8

4015-4Z

M16 X 1

40

4

15

15

10000-11000

10500-11500



700

8

5520-4Z

M18 X 1

55

4

20

15

10000-11000

10500-11500

14300-20000

2000

8

5020-6Z

M18 X 1.5

50

6

20

15

18500-20000

/

22500-25000

2000

8

5020-4Z

M18 X 1.5

50

4

20

15

11000-13000

13000-15000

15000-17000

1500

8

5020-2Z

M18 X 1.5

50

2

20

20

6000-6500

6500-7000

8000-9000

800

6

4020-4Z

1/2-20UNF

40

4

20

15

9000-10000

9500-11000

/

900

6

4020-2Z

1/2-20UNF

40

2

20

25

/

4800-5500

/

500

5

5025-2Z

M12 X 1

50

2

25

25

5000-5600

/

7000-8000

500

4

3828-2Z

1/2-20UNF

38

2

28

30

3800-4300

/

/

500

3

3828-4Z

1/2-20UNF

38

4

28

30

7600-8500

/

10500-12000

800

4

3028-2Z

3/8-24UNF

30

2

28

30

2700-3100

3400-3800

/

400

3

2528-4Z

M8 X 1

25

4

28

30

3900-4300

/

/

400

4

2528-2Z

M8 X 1 or 3/8-24UNF

25

2

28

35

1950-2200

2200-2500

/

300

3

3030-4Z

M10

30

4

30

30

/

6200-6900

/

700

4

3035-2Z

3/8-24UNF

30

2

35

40

2700-3100

/

/

500

2

3035-4Z

M10 X 1

30

4

35

30

5000-6200

/

/

800

3

2535-2Z

M8 X 1

25

2

35

40

1900-2200

/

/

400

2

2540-2Z

3/8-24UNF

25

2

40

40

/

2000-2300

/

500

2

3040-4Z

M10

30

4

40

30

5500-6200

/

/

1000

2

3050-4Z

M8

30

4

50

30

5500-6200

/

/

600

2

1560-2Z

M6 X 0.75

15

2

60

60

/

/

700-800

100

1

1070-2Z

M4

10

2

70

200

/

/

350-400

100

1
