The rotary welding system is core part of ultrasonic sewing machine , it is easy to install and very durable.
Item No.:
HS-S35Payment:
T/T, Paypal, Western UnionProduct origin:
chinaColor:
SilverShipping port:
Shanghai or NingboLead Time:
1035kHz 800watt Ultrasonic Rotary Welding Machine Sewing Machine Parts for Chemical Fiber Fabric
Description :

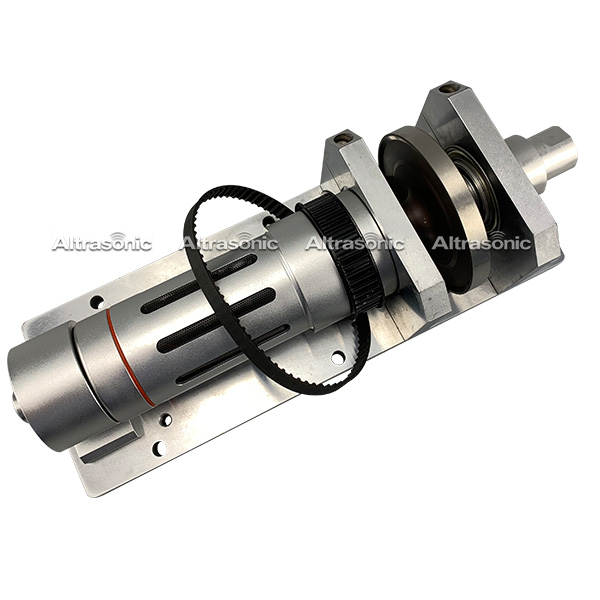

The rotary welding machine is core part of ultrasonic sewing machine. It consists with generator , transducer and roller welding horn. Through professional design, we accelerate the heat dissipation of the working system and increase the work efficiency. The welding horn is made of the highest hardness titanium alloy, which is very durable.
Specification :
Frequency : 35kHz
Power : 800watt
Input : AC110V/AC220V, 50-60Hz
Power Controller : Stepping or Continuous
Material of welding horn : Titanium Alloy
Net weight : 16 KG
Generator : Digital
Cooling Device : Available
Rotary welding width : 12 mm
Advantage :
1. High energy conversion efficiency, more than 80%.
2. Amplitude stability, long working hours, radiation area is increased 2.5 times than
traditional tools.
3. Using digital generator, full digital circuit control, strong anti-interference ability.
4. Frequency, power can be real-time monitoring, adjustable power, with automatic
alarm protection, easy to operate.

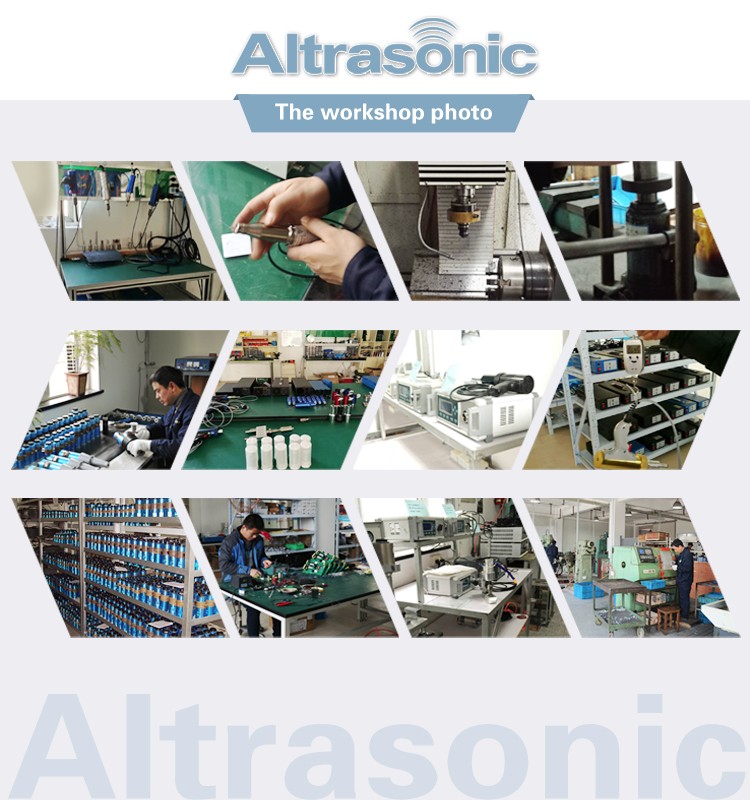

Workshop :
CE :
Shipment :
Payment :
