20khz Ultrasonic Milling/Drilling Machine Auxiliary Machining for Hard Metal Cutting

20khz Ultrasonic Milling/Drilling Machine Auxiliary Machining for Hard Metal Cutting

Ultrasonic milling or drilling equipment can be used to cut hard metal materials.

  • Item No.:

    HS-M20
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Green
  • Shipping port:

    Shanghai or Ningbo
  • Lead Time:

    45
  • Product Details


20khz Ultrasonic Milling/Drilling Machine Auxiliary Machining for Hard Metal Cutting




Specification:


Item No.: HS-M20

Frequency: 20kHz

Power: 500Watt

Speed: 20,000RPM

Amplitude: 10um or more

Diameter of Horn:

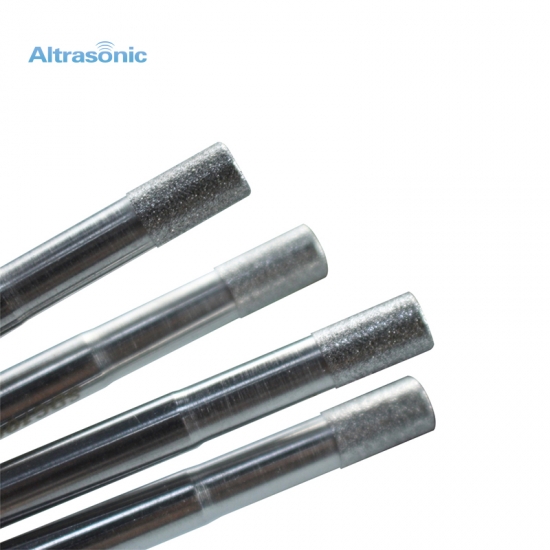

                          Milling: Φ1-Ф13mm

                          Drilling:Ф2-Ф6mm

Spindle: BT40 / BT50 / R8 / HSK63 / ISO / CAT

(Special spindles are made per request.)



Description:

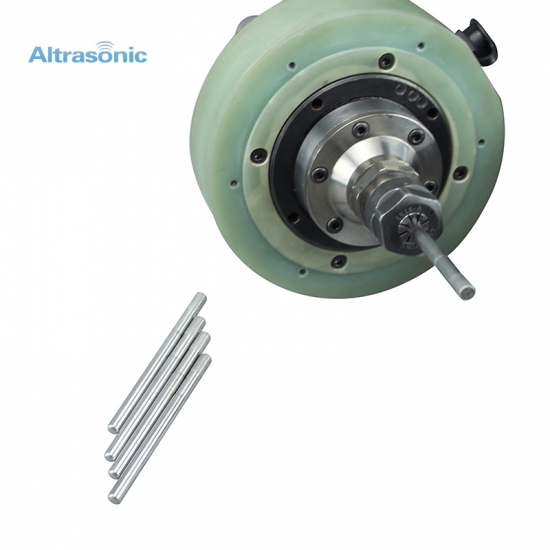

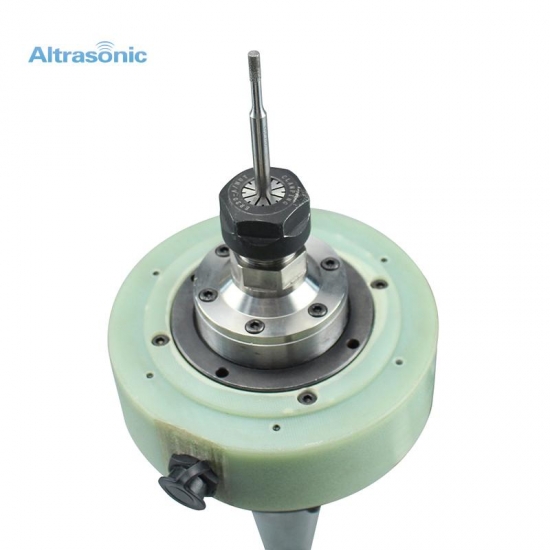

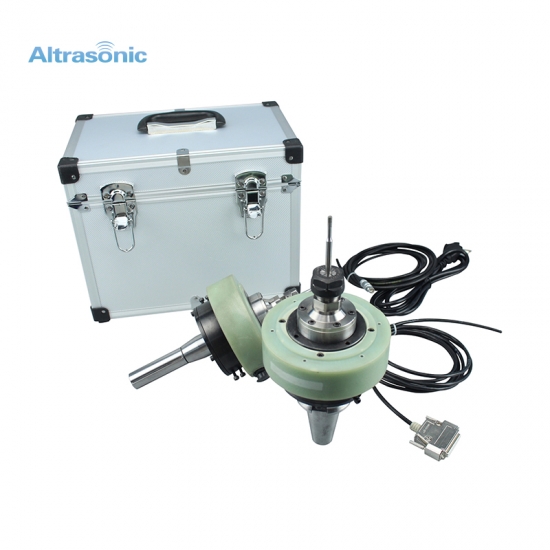

This high tech ultrasonic rotary milling system, which could be installed on CNC machinery.

Many spindle tapers are slected BT30/40/50, HSK63A, CT40 and so on...

If you are not sure whether your application is suited for ultrasonic assembly, please contact with us. We are here to help you.



The function of various parts are described below:



1. Transducer: The transducer mainly consists of a cylinder which is made up of piezoelectric ceramic. It converts electrical energy into mechanical vibration. Transducer then vibrates sonotrode at low amplitude and high frequency.

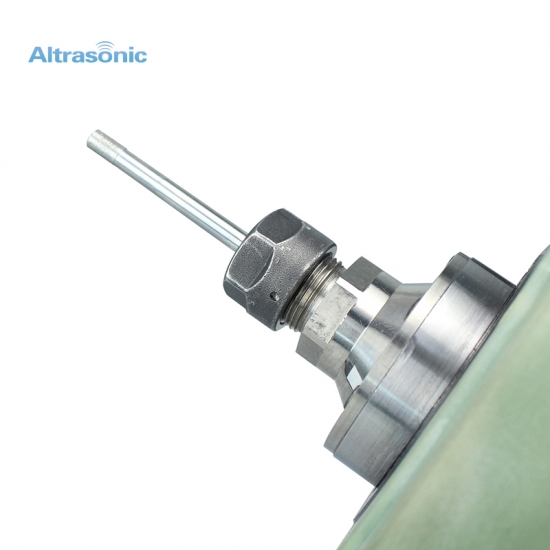

2. Sonotrode: It is made of low carbon steel. One end of it is connected with the transducer and other end contains tool. The sonotrode vibrates at low amplitude and high frequency and removes material from the w/p by abrasion where it contacts it.

3. Generator: The generator consists of an electronic oscillator which produces an alternating current at high frequency. The frequency produced is usually in 20kHz in ultrasonic range.


Workshop:


CE:


Shipping:


Payment:
