Home Ultrasonic Welder Repair Dukane

Dukane Type Converter

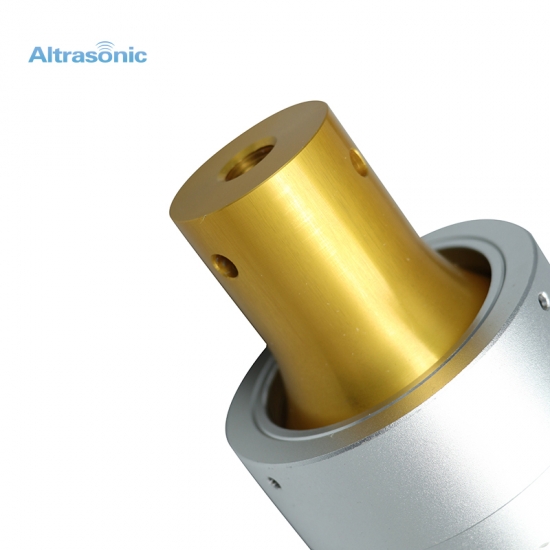

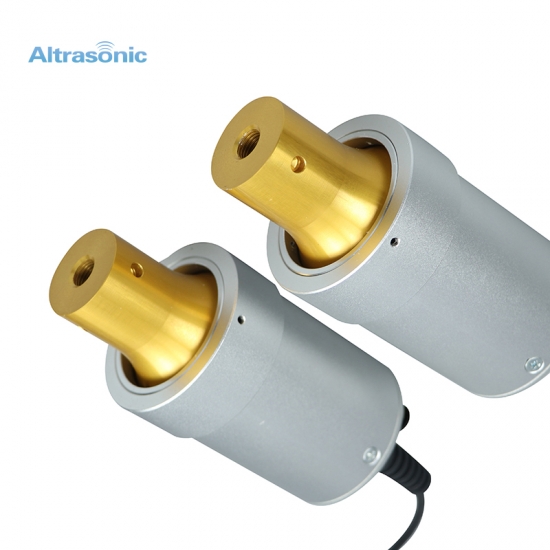

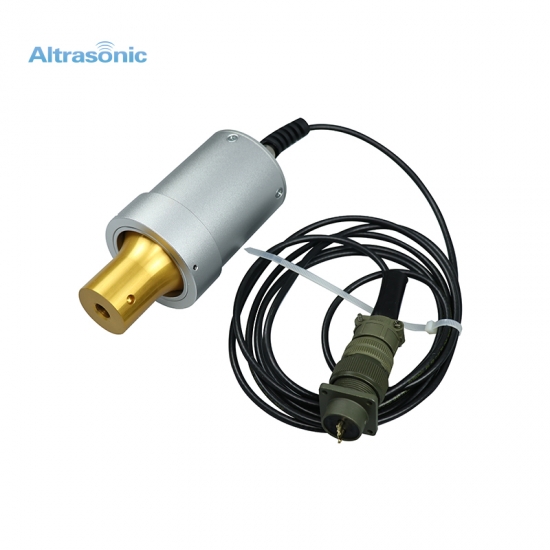

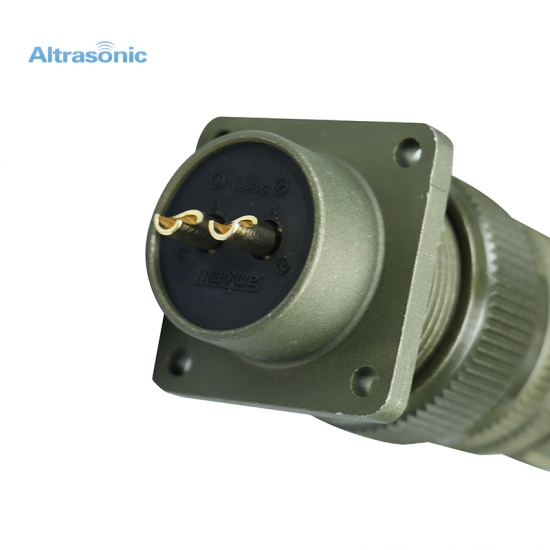

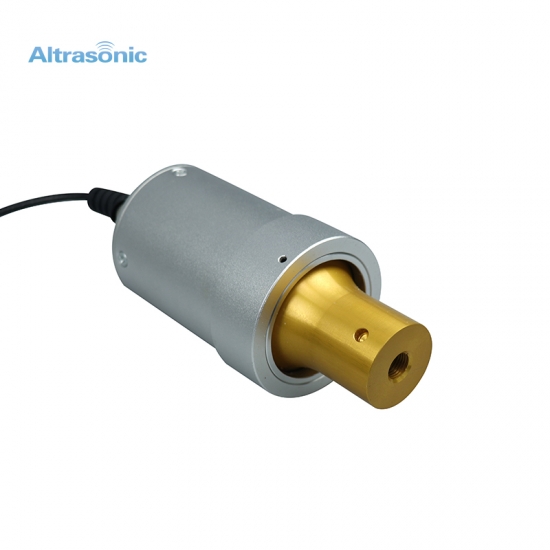

20kHz Dukane Replacement 41S30 ultrasonic welding transducer, Converter with Imported Components

20kHz Dukane Replacement 41S30 ultrasonic welding transducer, Converter with Imported Components

With high quality and well match with Dukane Type ultrasonic welder.

  • Item No.:

    HS-D41S30
  • Payment:

    T/T, PayPal, Western Union
  • Product origin:

    China
  • Color:

    Silver and Yellow
  • Shipping port:

    Shanghai or Ningbo
  • Product Details


Ultrasonic 20kHz Dukane 41S30 Converter Replacement with Imported Components




Specification:


 Item No  HS-D41S30
 Frequency  20 kHz
 Power  2000 watt
 Joint bolt  1/2-20 UNF
 Diameter of ceramic  50 mm
 Quantity of ceramic  4 pcs
 Capacitance  11~17 nF
 Amplitude  20 um
 Application  Plastic welding machine



Application:

Ultrasonic transducer is an energy conversion device that converts alternating electrical signals into acoustic signals or converts acoustic signals in the external sound field into electrical signals in the ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasound technology. Because of the wide application range of ultrasound technology and the endless emergence of new ultrasound technologies, there are many types of ultrasound transducers corresponding to this.

What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
