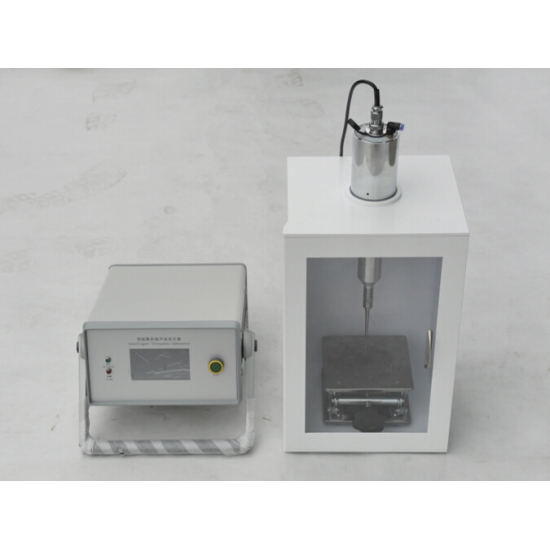

Vibra-Cell Ultrasonic Processors For Sonochemistry & Sonolysis

Product Details

 Vibra-Cell Ultrasonic Processors For Sonochemistry & Sonolysis





Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

100 Sets/Month



Quick Detail:



Simple, low-cost design
Low operating costs
High efficiency
Low maintenance
Faster emulsification



Description:

Ultrasonic technique as a physical means and tools, can product in the reaction medium in a series of close to the extreme conditions, this energy can not only stimulate or promote many chemical reactions, accelerate the rate of a chemical reaction, and even may also change the direction of chemical reaction, generate a beat all effect and miracles.

Industrial ultrasonic sonochemistry system is mainly used for largescale industrial production. It has big power,high efficiency, the advantages of large radiation area etc.. And can be customized according to customer needs.







Applications:

Ultrasonic in the biochemistry of the earliest applications should be used ultrasonic to crush the cell wall, to release its contents. Subsequent studies showed that, low intensity ultrasonic can promote the biochemical reaction process, such as ultrasonic irradiation can increase the speed of liquid nutrition growth of algal cells, making the cells to produce proteins increased 3 times.Energy density and cavitations bubble collapse of ultrasonic field energy density, energy density is enlarged trillion times, great concentration caused by energy; sound chemistry led to the phenomenon of extreme heat and pressure cavitations effect of luminescence, is unique in form of exchange of energy and substance of sonochemistry. Therefore, ultrasonic chemical extraction, biodiesel production, organic synthesis, governance microorganisms, degradation of toxic organic pollutants, the chemical reaction speed and yield, the catalytic efficiency, biological degradation, ultrasonic anti fouling, biological cell crushing, dispersion and agglomeration, and the chemical reaction is more and more important role.





Specifications:

Model

S-L40-500

S-L40-1000

S-L28-1500

S-L20-2000

Frequency

40±0.5 KHz

40±0.5KHz

28±0.5 KHz

20±0.5 KHz

Power

500 W

1000 W

1500 W

2000 W

Voltage

220/110V

220/110V

220/110V

220/110V

Temperature

150 ℃

150 ℃

180 ℃

200 ℃

Intensity of sound

20 W/cm²

40 W/cm²

60 W/cm²

80 W/cm²

Max Capacity

250 ml/min

500 ml/min

1000 ml/min

2000 ml/min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

PSIf you need more power, we can install two or more device.









Competitive Advantage:

1.Save mixing time 20%~60%

2.Lower temps 30%~60%(30)

3.Less methanol 5%~30%

4.Less chemical (KOH) less 20%~50%

5.Total production cost save 15%~50%

6.Another benefit is the time of glycerol separation.This is also faster and one of the reasons for it is that

 less methanol is been used,so glycerol separation is faster.
