Ultrasonic Sealing and Cutting Machine

Ultrasonic Simultaneous Cutting and Sealing the Edge Overlap Welding the Non Woven Fabric

Ultrasonic Simultaneous Cutting and Sealing the Edge Overlap Welding the Non Woven Fabric

Portable Ultrasonic Simultaneous Cutting and Sealing the Edge is for cutting of fabrics, non-woven materials, foils and so on. It has competitive advantage that the edge is smooth and traceless. Compared with traditional process, it saves more time and easy operation.

  • Product origin:

    China
  • Product Details

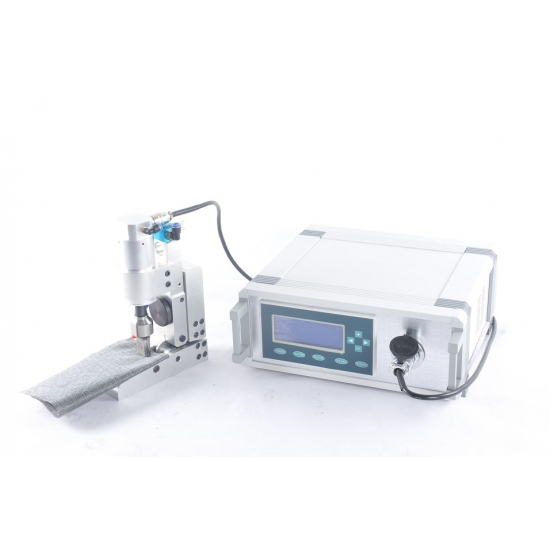

Ultrasonic Simultaneous Cutting and Sealing the Edge Overlap Welding the Non Woven Fabric


Description:


Compact Ultrasonic hand-held cutting unit for cutting of fabrics, non-woven materials, foils etc. Ideal for straight and curved cutting. With guiding rail on a cutting table the ideal cutting unit also for larger series.

Cost-efficient Ultrasonic Cutting equipment for studios, small and medium-sized enterprises. At best adequate for single cuts as well as for small up to medium series.


Specification:


FREQUENCY

40Khz

POWER

2000 watt

INPUT

AC110-240V, 50/60Hz

POWER CONTROLLER

stepping or continuous

MATERIAL OF CUTTING HEAD

aluminum alloy, stainless steel, titanium alloy, alloy steel.

MACHINE WIGHT

4 kg-16KG

ACCESSORIES

foot switch, additional blade

COOLING DEVICE

compressed air mouth can be installed.

CABLE LENGTH

2M or customized

FOOT SWITCH

available


Principle:


With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.


Applications:

  • Thermoplastic films (pouches and bags) Tubes, trays, and cups
  • Tubes, trays, and cups
  • Cardboard packaging with thermoplastic coating
  • Valves and vents on films / filter materials
  • Screw caps on coated cardboard packaging / films

Competitive Advantage:

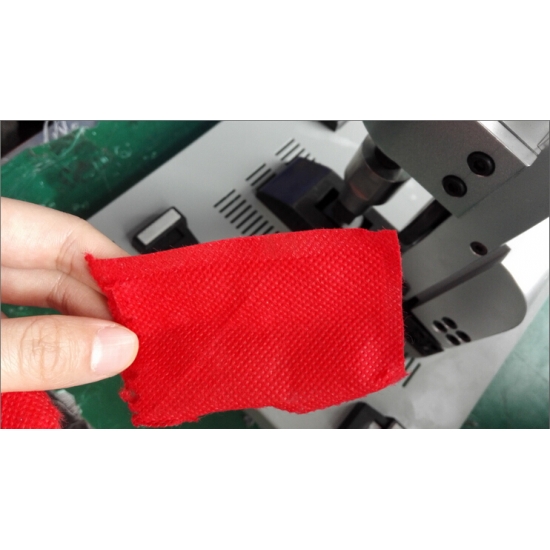

1. Cut the material quickly and precisely

2. Smooth and traceless cutting edge

3. Powerful, effective realiable

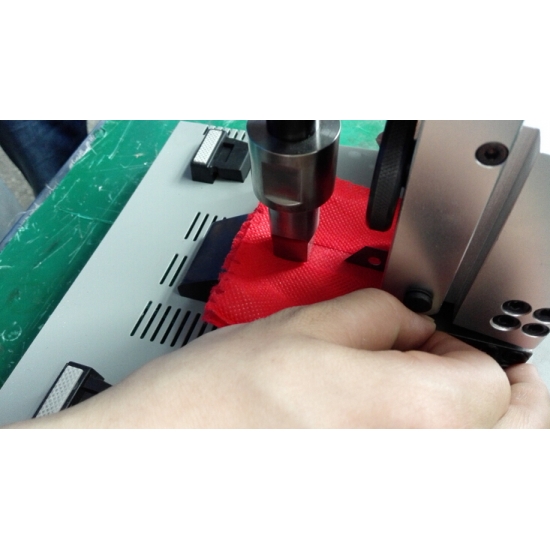

4. Low cost, easy operator. An operator only handle the probe and step the foot switch.
