20 kHz Ultrasonic Transducer

Ultrasonic Power Transducer For Ultrasonic Plastic Welding

Ultrasonic Power Transducer For Ultrasonic Plastic Welding

Ultrasonic Power Transducer For Ultrasonic Plastic Welding

  • Product Details

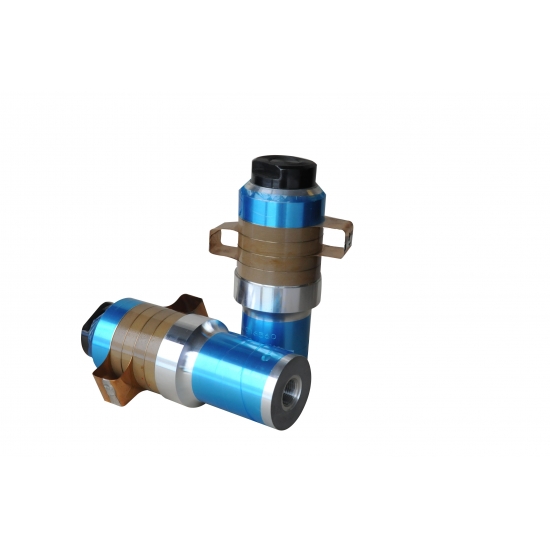

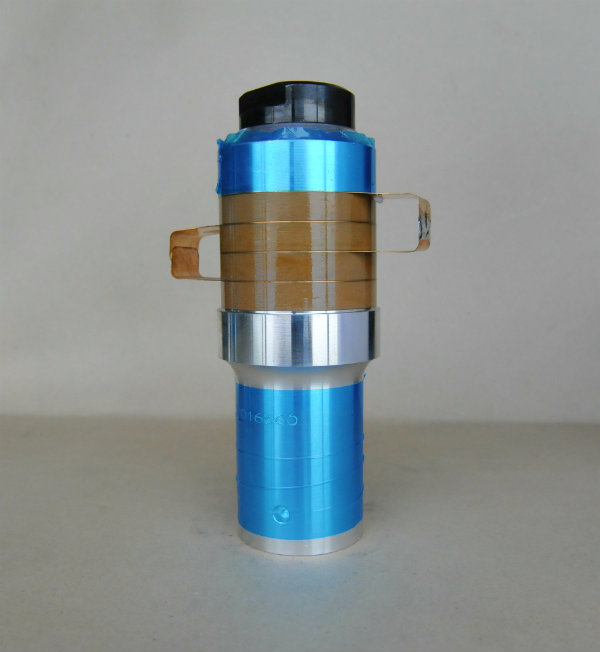

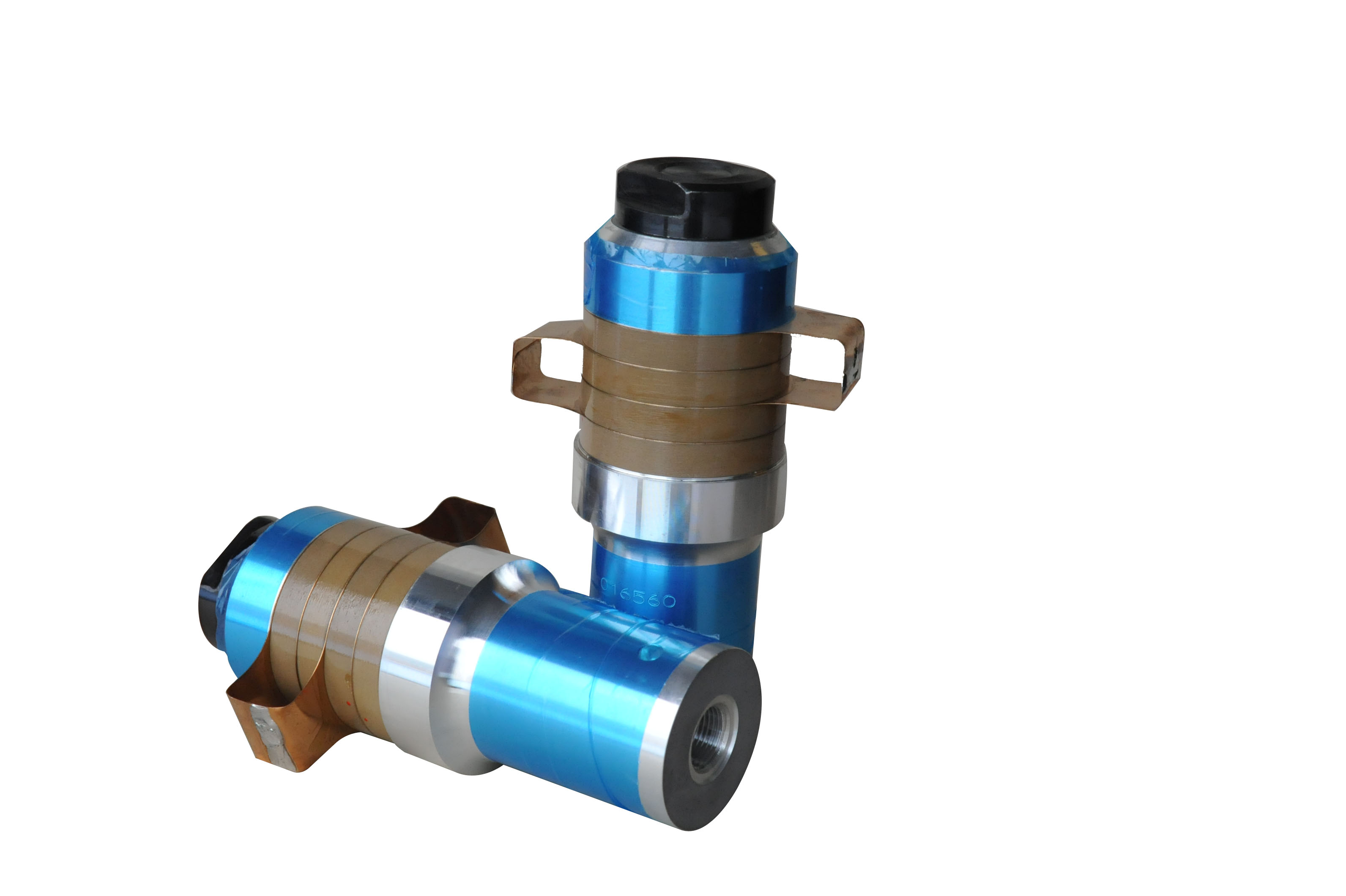

 Ultrasonic Power Transducer For Ultrasonic Plastic Welding



Minimum Order Quantity:

10 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

5000 Sets/Month



Quick Detail:

Stabilized power and high reliability widely application









Application:

Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

Ultrasonic Power Transducer Widely applied in Ultrasonic Plastic Welding system.



Description:

  • High Mechanical Quality factor and excellent electro-acoustic conversion efficiency, providing high output amplitude.
  • Piezoelectric element offer a high speed of vibration. Through bolt-on presstress, mechanical and amplitude have been improved.
  • Having steady output amplitude even under markedly changed loads.
  • Extended temperature use, ensuring good amplitude linearity. Low resonant impedance ensuring high conversion efficiency.
  • Bolt-on pre-stressed design provides fast and easy installation with high reliability.




Specifications:

The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)

Item No.

Connect

screw (Size)

Ceramic

diameter (mm)

Quantity of

 Ceramic (pc)

Resonance

frequency (khz)

Resistance (Ω)

Capacitance

Input

power (W)

Max.

Amplitude (um)













Yellow

Grey

Black





7015-4D

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

11

6015-4D

M18 X 1.5

60

4

15

15

9000-10000

10000-11000

/

2200

11

6015-6D

1/2-20UNF

60

6

15

15

19000-20500

/

23000-25000

2600

11

5015-6D

1/2-20UNF

50

6

15

15

17000-19000

/

23000-25000

2000

11

5020- 4DS

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

/

1300

8

5020-4D

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

14500-16000

1500

8

5020-6D

1/2-20UNF

50

6

20

15

19000-21000

/

22500-25000

2000

10

4020-6D

1/2-20UNF

40

6

20

15

13500-15000

/

/

1500

10

4020-4D

1/2-20UNF

40

4

20

15

8500-9300/ 9500-10500

10000-11000

10500-11500

900

8

3020-6D

3/8-24UNF

30

6

20

15

8000-9000

/

/

600

9

3030-4D

M8 or M8 X 1

30

4

30

20

/

6200-6900

/

800

5

3535-2D

M8 X 1

35

2

35

25

/

/

4500-5000

600

9

3535-4D

M8 X 1

35

4

35

20

6600-7400

/

9000-10000

1000

4

3035-4D

1/2-20UNF

30

4

35

20

5500-6200

/

9200-10200

800

4

2535-4D

M8

25

4

35

25

3900-4300

/

/

500

4

3040-2D

M8

30

2

40

30

/

3400-3800

/

500

2

2540-4D

M8

25

4

40

30

4500-5300

/

/

500

3

2040-2D

M8

20

2

40

40

1100-1300

1150-1350

/

300

2

   PSwe can also customize depend on your requirements.



Competitive Advantage:

Higher power

More stable

Longer use life

Imported ceramic chip
