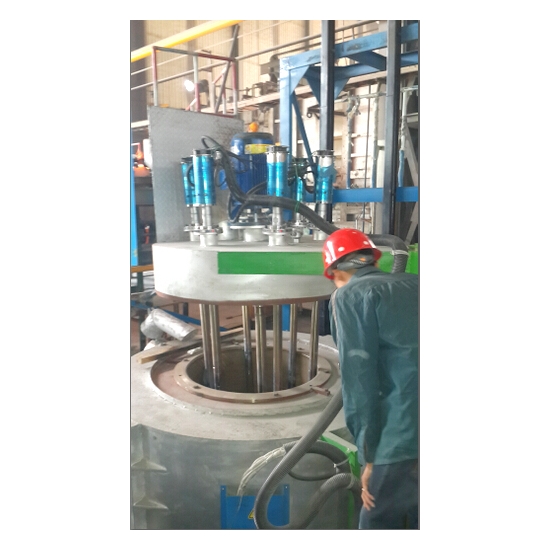

Ultrasonic Molten Aluminium Treatment System

Product Details

 ultrasonic molten aluminium treatment system



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Foam case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

100 Sets/Month



Quick Detail:

Significantly refine the metal grain
Uniform alloy composition to accelerate the bubble motion
Improvements in the metal



Description:

High-power ultrasonic molten aluminium treatment system can significantly refine the metal grain, uniform alloy composition to accelerate the bubble motion, significantly improving the performance of the metal material strength, hardness, ductility, toughness



Applications:

High-strength aluminum alloy, magnesium alloy casting
* Aluminium, magnesium alloy bar stock, sheet metal production
The crystallization of a variety of alloys, the motor rotor degassing
* A variety of metal matrix composites, high strength aluminum alloy piston casting



Specifications:

Model

S-P20-1000

S-P20-1500

S-P20-2000

S-P20-3000

Frequency

20±1 KHz

20±1 KHz

20±1 KHz

20±1 KHz

Power

1000 W

1500 W

2000 W

3000 W

Voltage

220±10% V

220±10% V

220±10% V

220±10% V

Temperature

300

300

300

300

Pressure

35 MPa

35 MPa

35 MPa

35 MPa

Intensity of sound

20 W/cm²

30 W/cm²

40 W/cm²

60 W/cm²

Max Capacity

> 10 L/Min

> 15 L/Min

> 20 L/Min

> 30 L/Min

Material Of Tip Head

Titanium Alloy

Titanium Alloy

Titanium Alloy

Titanium Alloy

PSIf you need more power, we can install two or more device.





Competitive Advantage:

★ Without changing the customer production equipment and the existing process
★ Simple installation, the standard flange butt joint installation
★ Micro molecular interaction, direct, obvious effect
★ High power, high yield
★ Reduce cost, energy consumption
