Home Ultrasonic Cutting Machine

Ultrasonic Plastic & Fabric Cutting Machine

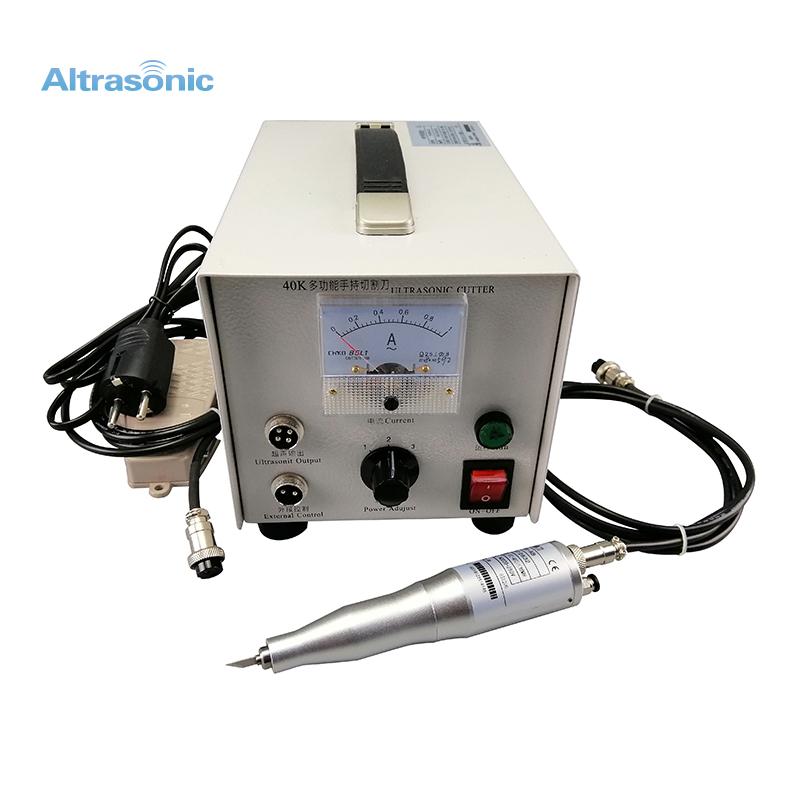

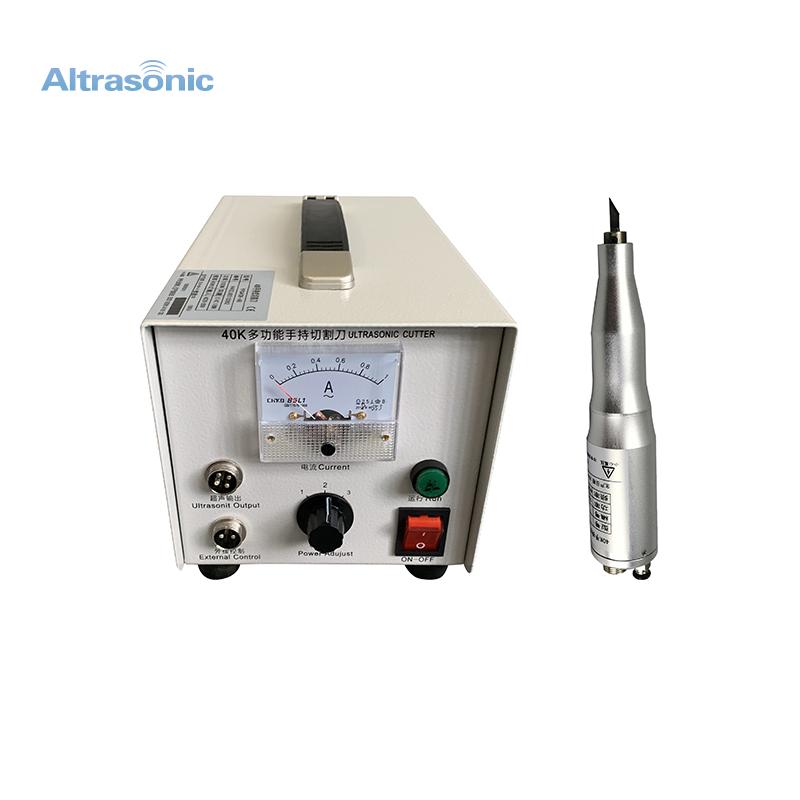

Ultrasonic Manual Cutter with Replaceable Knifes for Cutting Thermoplastic and Fabric

Ultrasonic Manual Cutter with Replaceable Knifes for Cutting Thermoplastic and Fabric

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.

  • Item No.:

    HS-C40
  • Payment:

    T/T, Paypal, Western Union
  • Product origin:

    China
  • Color:

    Silver, Blue and Black
  • Shipping port:

    Ningbo and Shanghai
  • Product Details

Ultrasonic Manual Cutter with Replaceable Knifes for Cutting Thermoplastic and Fabric



Specification:


Item No HS-C40
Frequency 40 kHz
Power 100 watt
Generator Analog

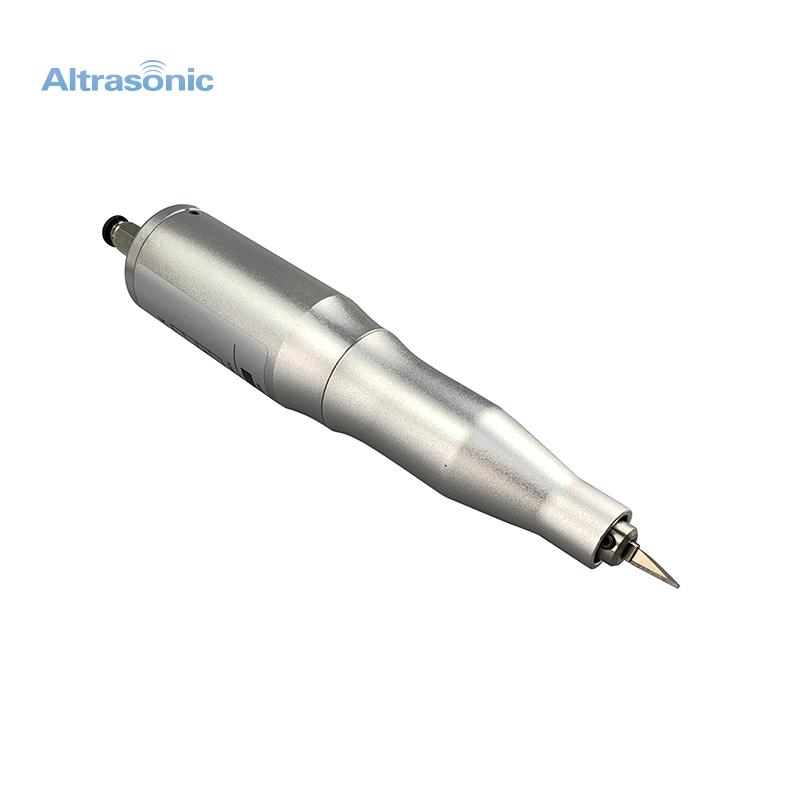

Handle size φ32*170

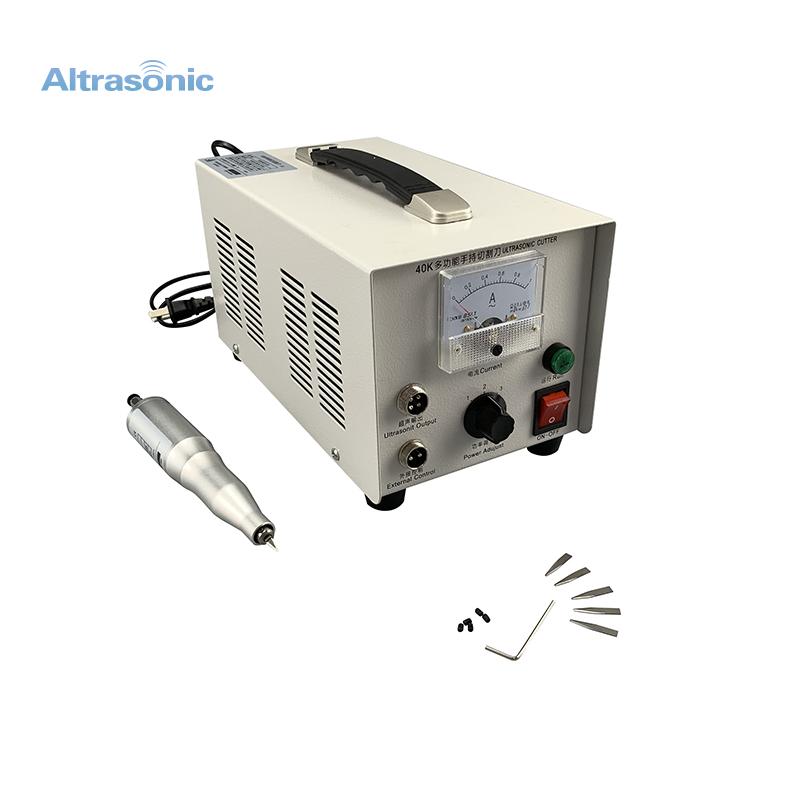

Accessory Blades, external control, cables
Cut thickness Max 3 mm



Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.
Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.
The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut,
the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition.
The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.



  • Environment-friendly (No noise, no smoke, no air contamination)
  • Smooth cutting of difficult-to-cut materials
  • Small hand-held size(can be attached to automotive machinery arms)
  • No special installation equipmen


TYPICAL MATERIALS PROCESSED:


  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials



Competitive Advantage:


★ The use of high power ultrasonic transducer vibrating element, ensure the long time stable working

★ The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.

★ Cutting all kinds of ordinary tool to cut products, solve production problems

★ Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost

★ Cutting tool complete varieties, can also be customized according to customer process shaped cutting

tool

★ Installation, easy to use, almost does not change the original cutting process

★ Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for

cutting special

★ Can use air-cooled, water-cooled design, adapt to various working conditions and environment




Problem and solution:



Item Problem Cause description Solution
  Power switch to “I” the light is out Power plug loose Plugging in
Power line break Fix it yourself or send back
Power switch bad contact
Fuse is broken

Power light and

running light are OK

Air plug and socket not connected Tighten the connection position
Handle have abnormal Sound

Clean the card slot, use new

blade

Intermittently use, but the handle

keeping hot

Please send it back
Out-put air plug break
Screw loose Tighten the screw
Running light is ok Running switch bad

Please send it back


Workshop:



CE:



Packing&Shipping:


Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
