Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
Item No.:
HS-C30Payment:
T/T, Paypal, Western UnionPrice:
$2599/PCProduct origin:
ChinaColor:
Silver, Blue and BlackShipping port:
Ningbo or Shanghai
Ultrasonic Cutter with Customized Knife for Autoparts Plastic Deburring or Trimming Adapt to Robatic System
Specification:
| Item No.: | HS-C30 |
| Frequency | 30kHz |
| Output Power | 500Watt |

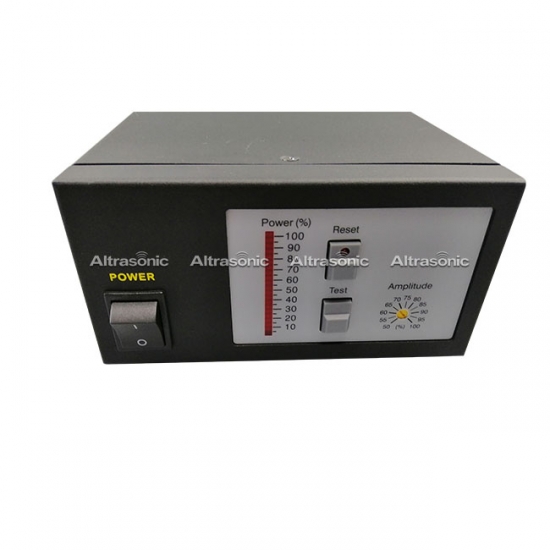

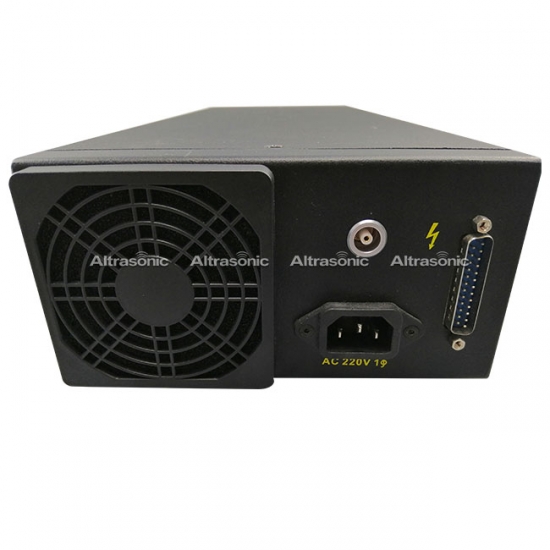

| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8kgs |
| Voltage | 220V / 110V |
| Accessory | Foot switch1pc； Cut blade 5pcs； 1.5mm special hex wrench 1pc； Screw M3×4L 2pcs |
| Material of cutter | Magnalium alloy, titanium alloy, stainless steel |
Description:
An ultrasonic transducer creates a vibrating blade, enabling the cutting edge to more easily slice through a wide range of materials – thin plastics sheets, rubber, paper products, woven and non-woven materials, and even carbon fiber pre-preg. Available models are designed around hand-held pieces, or mountable transducers for use with industrial robots, plotters, and automated machinery.
Ultrasonic cutters are essentially cutting or trimming tools utilizing a vibrating ultrasonic horn to assist the cutting action of sharp utility knife blades. Ultrasonic vibrations are transmitted to the end of the blades resulting in a substantially smoother and even cutting action.
Advantages:
1. The main feature of Ultrasonic cutting machine is do not need sharp blade, do not need a lot of pressure, no chipping and broken for the material. The cutting knife is with ultrasonic vibration,and the friction resistance is particularly small, therefore the material is not easy to stick on the blade. Especially, the cutting effect on the frozen, sticky, elastic material is obvious. Such as food, rubber or the object with inconvenient pressure, the cutting is particularly effective.
2. The cutting site has a fusion effect meanwhile it is cutting. The cutting area is perfectly sealed, preventing loose tissue (such as textile material flash) of the cutting material. The use of ultrasonic cutting machine can also be extended, such as digging holes, shoveling, scraping paint, carving, slicing and so on.
Previous :
30khz ultrasonic Cutter with Titainum Blade for PVC Neylon Sheets CuttingNext :
Ultrasonic Manual Cutter with Replaceable Knifes for Cutting Thermoplastic and FabricIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
