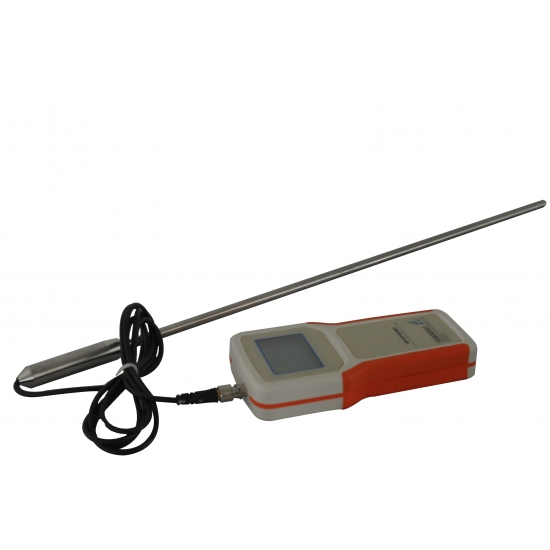

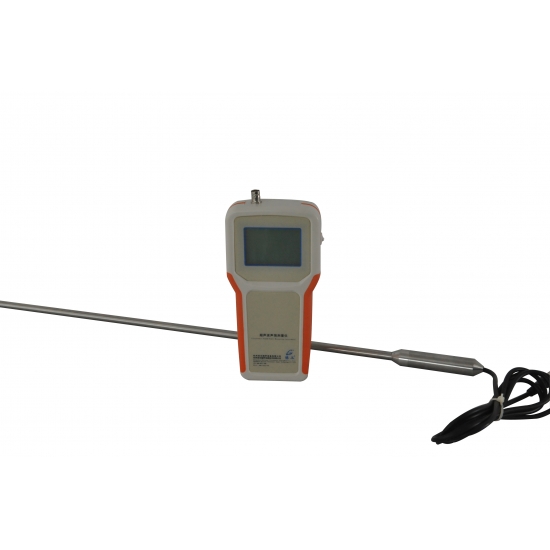

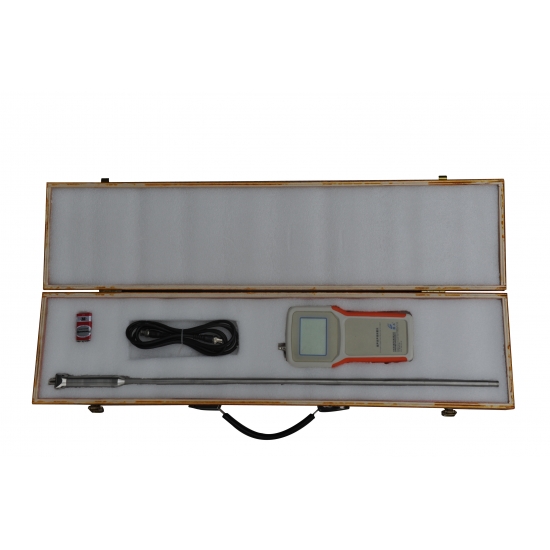

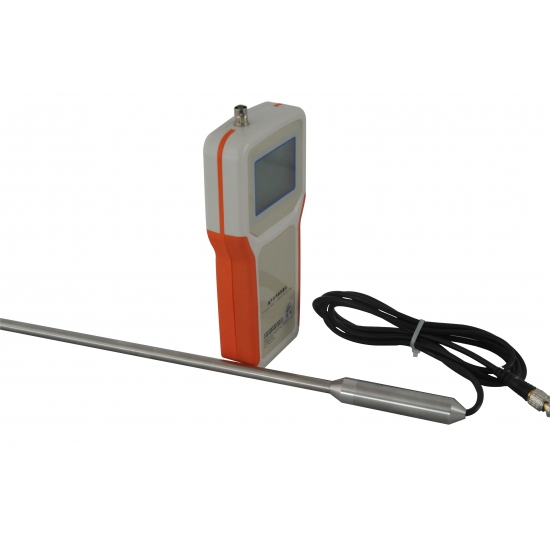

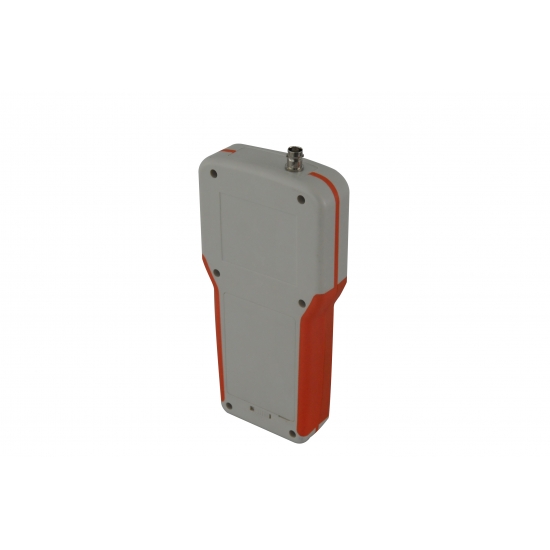

Sound Intensity Measuring Instrument

Product Details

 Sound Intensity Measuring Instrument



Minimum Order Quantity:

1 Set

Price:

Ask for quote

Packaging Details:

Wood case

Delivery Time:

In 7 Working Days

Payment Terms:

T/T, WESTERN UNION

Supply Ability:

200 Sets/Month





Specifications

 Ultrasonic Power Measuring Meter:Measuring ultrasonic power in the liquid. The ultrasonic strength in the liquid sound field is the most important index ofthe ultrasonic system. There is a direct influence for the cleaning effect of cleaning machine and work efficiency of the ultrasonic processor. Ultrasonic power measuring instrument can measure the strength of the sound field whenever possible,quickly and easily. Moreover, it directly indicates the sound numerical value.
According to the different using fields, the ultrasonic power measuring instrument can be made into portable and monitoring types.







Parameter



Range of Sound Intensity 0-150 W/cm²
Range of Frequency 5 Khz-1 Mhz
Service Temperature 0-100 °C (common)  0-500 °C (high temperature)
Service Medium PH 4-PH 10  (liquid)
Supply Voltage 220V
The Response Duration less than 0.1 second
Length of Probe 30cm 40cm 50cm 60cm   (optional)
Material of The Prode titanium
Size
10*20*3 cm
Screen
LCD
Power Supply
9V Battery  or   External Power Supply
