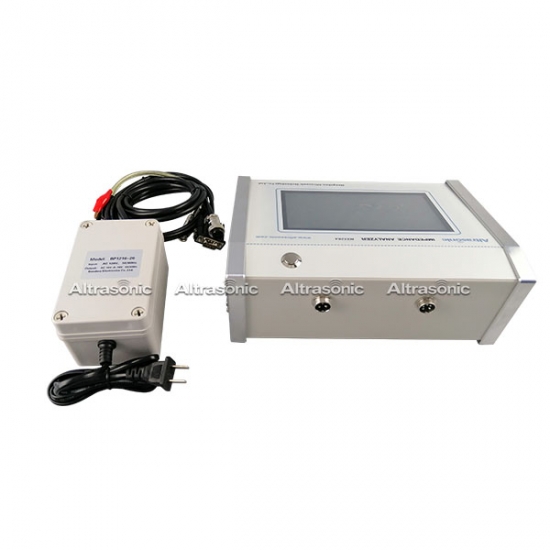

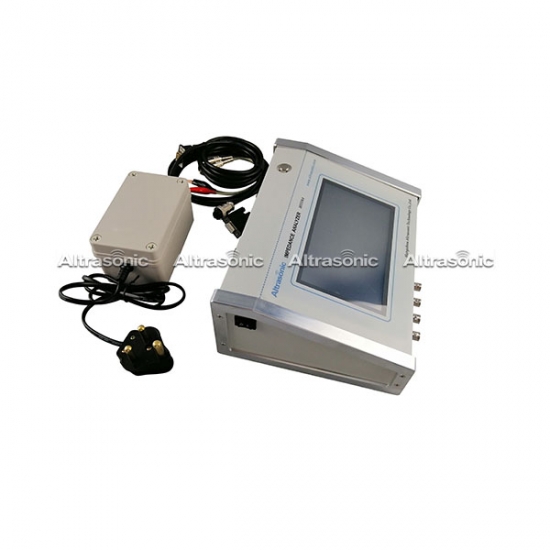

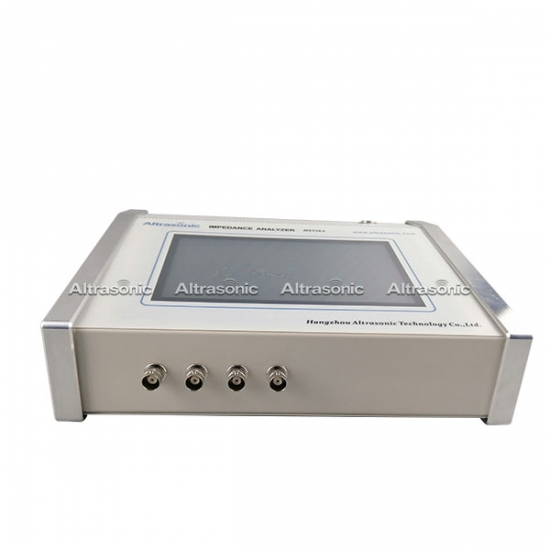

Simple Operated Impedance Analyzer Applicable for Ultrasonic Device Piezoelectric Ceramics
Description:
For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.
Characteristic:
1. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.
2. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.
3. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.
4. HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)
5. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.
Specification:
Impedance Analyzer | HS520A Newest |
Frequency Range | 1KHz~500KHz |
Basic Accuracy | < 0.5% |
Scan Speed | 5 sec/one pass (equivalent to 600 scan dots) |
Frequency Accuracy | ±10 ppm |
Phase Accuracy | 0.15 degree |
Temperature Range | 10~40 degree Celsius |
Impedance Range | 0.1Ω~1MΩ |
Frequency Step | 0.1Hz to Any |
Measure Items | Resonance Frequency: Fs |
Half Power Frequency: F1 and F2 | |
Maximum real admittance at Fs: Gmax | |
Dynamic Resistance: R1 | |
Anti resonance frequency: Fp | |
Mechanical quality factor: Qm | |
Free capacitance: CT | |
Dynamic inductance: L1 | |
Dynamic capacitance: C1 | |
Static capacitance: Co | |
electromechanical coupling coefficient: Keff and Kp | |
Maximum real impedance at Fp: Zmax | |
Measure Diagram | G,B-F |
G-B (admittance circle coordinate) | |
R,X-F | |
R-X (impedance circle coordinate) | |
Z,phase-F | |
Y,phase-F | |
Z(Logarithm),phase-F | |
Amplification | piezoelectric ceramic, ultrasonic transducer, power ultrasonic, ultrasonic weld, ultrasonic clean, ultrasonic sensor |
Dimensions : 240mm*190mm*100mm Size of LCD Screen: 8-inch screen |
Application:
Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.
