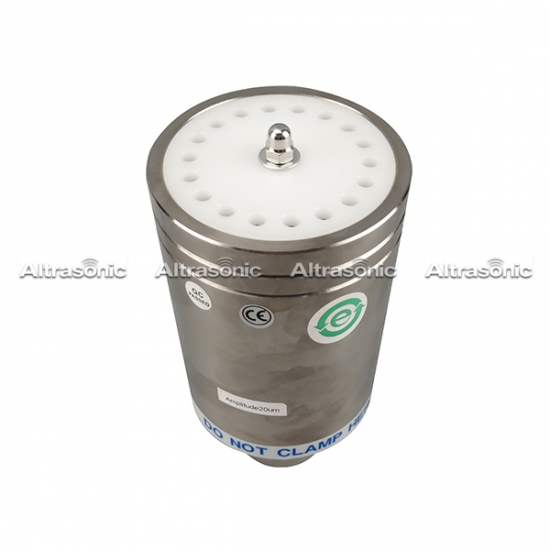

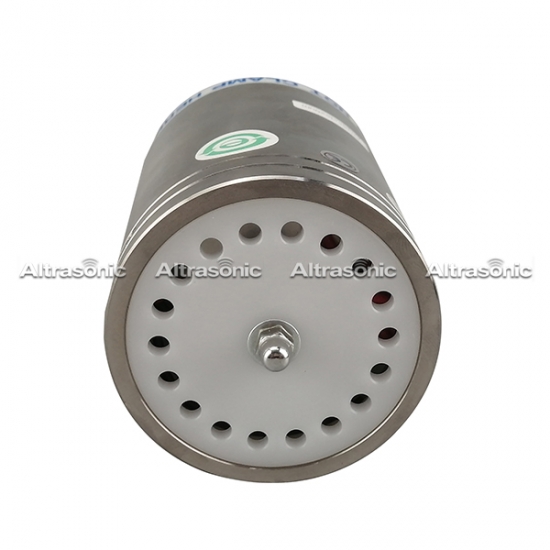

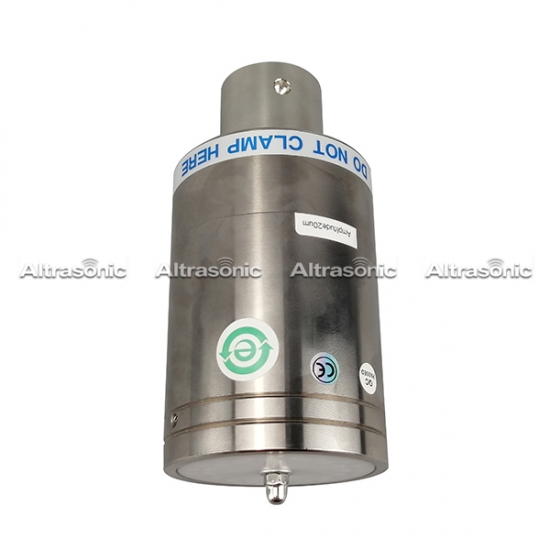

Replacement Branson CJ20 Ultrasonic Converter for Branson 2000 and 2000x Series Welder

Replacement Branson CJ20 Ultrasonic Converter for Branson 2000 and 2000x Series Welder

The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.

  • Item No.:

    HS-BCJ20
  • Payment:

    T/T, Paypal, Western Union
  • Price:

    $699/PC
  • Product origin:

    China
  • Color:

    Silver
  • Shipping port:

    Hangzhou or Shanghai
  • Product Details


Replacement Branson CJ20 Ultrasonic Converter for Branson 2000 and 2000x Series Welder




Specifications:



Model

HS-BCJ20

Frequency

20 kHz

Output power

2000 watt

Joint bolt

1/2-20 UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

6 pcs

Capacitance

19-21 nf

Amplitude

20 um

Application

welding machine





Description:



The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.




Replacement Item Specification:


Model

Frequency

(khz)

Ca(PF)

Power(w)

Machine

Branson 402

19.6-20.0

7800-8500

450-900

Branson8400

Branson 502

19.6-20.0

11500-12500

2000

Branson8800/5170

Branson CJ20

19.4-19.7

19000-21000

1100-4000

Branson2000 series

CB35A15A

36.5-7.5

3300-4000

800

Rinco-35A15A

CV231

38.3-39.0

3500-4500

900

40k Metal Welding

CV3510

36.2-37.0

3200-4000

800

Rinco-CV3510

Dukane 110-3122

19.6-20.0

12500-14000

2600

Dukane Heavy Duty




Why Pay More?



OEM converters have one of the highest markups of any industrial component you can buy. A high-quality replacement part such as this can result in significant savings, plus some of our customers tell us these converters run cooler and last longer than the OEM converters they replace.



Warranty:



We offer the same warranty as the OEM, namely, five years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).




Applied Range:


Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),

for use with all 20KHz 2000 and 2000X actuator and IW systems.




Competitive Advantage:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.




What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
