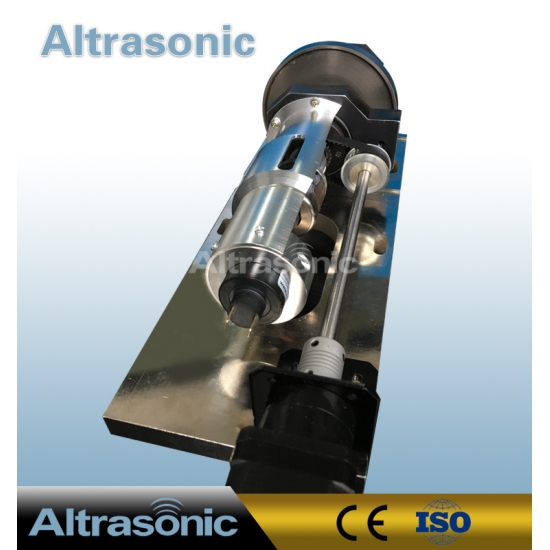

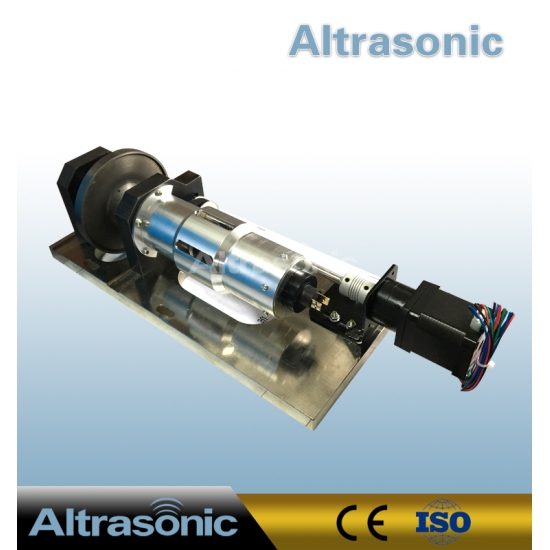

Newest 1000W Improved Version Ultrasonic Sewing Machinery with Hardening Treatment Titanium 12MM Wheel

Newest 1000W Improved Version Ultrasonic Sewing Machinery with Hardening Treatment Titanium 12MM Wheel

Newest 1000W Improved Version Ultrasonic Sewing Machinery with Hardening Treatment Titanium 12MM Wheel

  • Product origin:

    China
  • Color:

    Silver
  • Product Details

Newest 1000W Improved Version Ultrasonic Sewing Machinery withHardening Treatment Titanium 12MM Wheel


Specification:


Model HSF59B-TB
Frequency 35 KHz
Power 1000 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Real-time Display Working Frequency and Working Current
Synchronizing Wheel Specifications 46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed 100 r/min.
Install Bolt M8, 4 pcs



Application:


The ultrasonic sewing machine applys to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.


Principle:


With ultrasonic sealing, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.

Ultrasonic lace sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.


Function:


Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - thermal bonding - edge cut - bag cut - collection


Applications:


Usually used in clothing industry is the ultrasonic lace machine, which is mainly used in cutting and welding cloth. Owing to its transmit horn is a plane, so it only can turn its own geometric center and cant turn the same direction with the cloth. Which make the sewed point of the cloth is unevenness. The transmit horn of Seamless sewing part is a circumference horn, and can turn around . For the cloth, it is jointing with the cloth and working at the same time. The ultrasonic seamless sewing part advance ultrasonic lace machine and its market prospects are very bright.


Main advantages:

  • Fast Speed (adjustable)
  • With soft cutting edge, won't loosing and crevasse and won't damage fabric's original character
  • The wheels and most of parts are made from titanium materials, long service life.

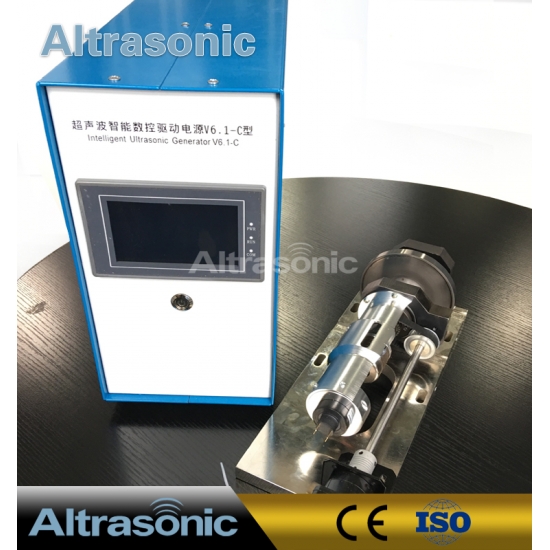

  • Digital ultrasonic power supply, automatic tracking frequency, with real-time monitoring LCD screen.
  • Continuous Ultrasonic when working, stable performance, labour saving and high-efficiency

  • Easily integrated on customers' current processing line.
