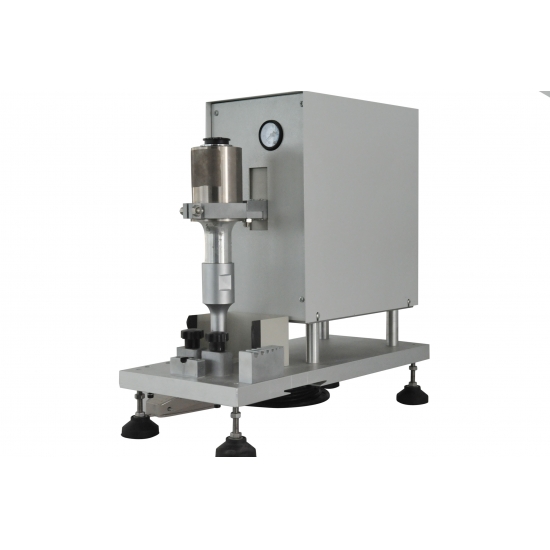

MI Cable Ultrasonic Wire Stripping Equipment
|
Minimum Order Quantity: |
1 Set |
|
Price: |
|
|
Packaging Details: |
Wood case |
|
Delivery Time: |
In 7 Working Days |
|
Payment Terms: |
T/T, WESTERN UNION |
|
Supply Ability: |
100 Sets/Month |
Quick Detail:
Great reliability
High working efficiency
High speed
Low power consumption
Description:
Ultrasonic cable stripping machine is used for mineral insulated cable stripping equipment. Its clever use of ultrasonic energy to the role of the characteristics of both fire cable insulation slag shattered discharge, but also to protect the cable core does not suffer any harm. Design of the stripping machine is compact, reliable, high efficiency, high speed, low power consumption, can be adapted to a variety of mineral insulated cable stripping
Applications:
Mineral insulated cable has been widely used in various applications of insulated cables of high-rise building, petroleum chemical industry, airport, tunnel, ship, offshore oil platforms, aerospace, metallurgical, shopping centers, parking and other mineral.
Specifications:
|
Model |
M35 |
M20 |
|
Frequency |
35 KHz |
20 KHz |
|
Peelable cable diameter |
＜ 5 mm |
＞ 3 mm |
|
Length of Wire Stripping for One Time |
20 mm |
30 mm |
|
Startup Mode |
Manual or Pedal Switch |
Manual or Pedal Switch |
|
Power |
200 W |
1000 W |
|
Voltage |
220V 50Hz 3A |
220V 50Hz 3A |
|
Size |
800*150*200 mm |
500*300*400 mm |
|
Weight |
25 KG |
35 KG |
Competitive Advantage:
|
|
Manual |
Ultrasonic |
|
Stripping speed |
20 Second/Unit |
2 Second/Unit |
|
Operator |
Skilled Workers |
Everybody |
|
Length of Wire Stripping |
＜ 10 mm |
2-30 mm |
|
Powder Pollution |
Serious |
Pollution-free |
|
Core Damage |
Yes |
No |
|
Stripping Consistency |
Low |
High |
|
Production Line |
No |
Yes |
